Stabilizer Link: Service and Repair

Front Stabilizer Link Removal/Installation

1. Raise the vehicle Service and Repair.

2. Remove the front wheel.

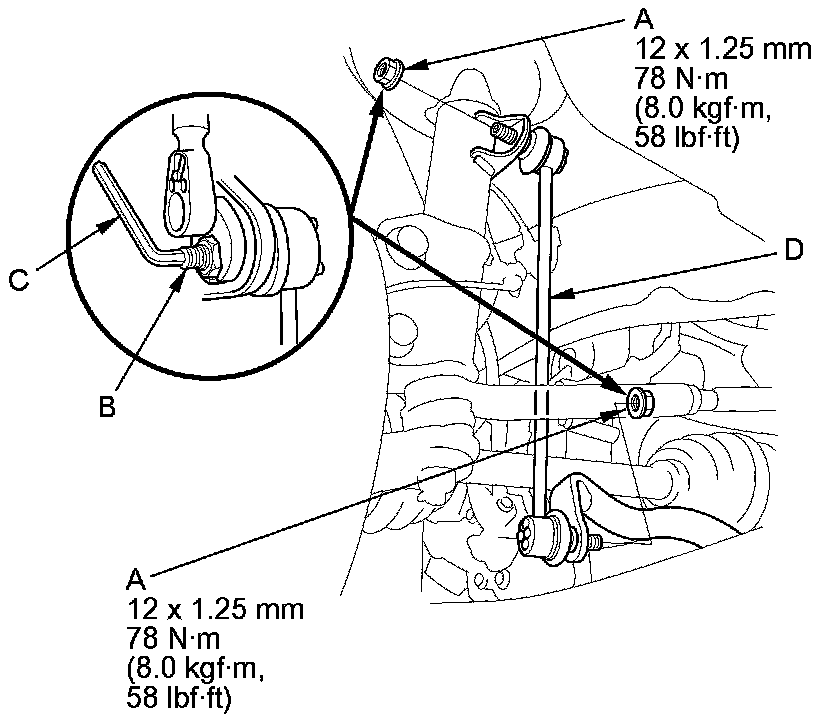

3. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C). Remove the stabilizer link (D).

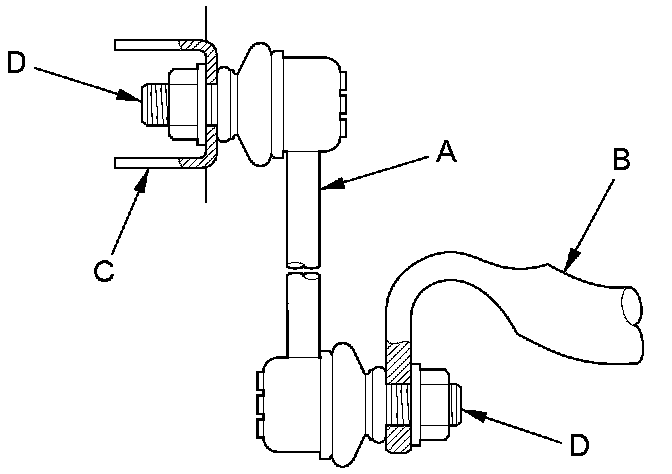

4. Install the stabilizer link (A) on the stabilizer bar (B) and the damper (C) with the joint pins (D) set at the center of their range of movement.






5. Tighten the flange nuts to the specified torque while holding the respective joint pin with a hex wrench.

6. Clean the mating surfaces of the brake disc and the inside of the wheel then install the front wheel.
