A/T Clutch Pressure Control Solenoid Valve A and B Replacement

A/T Clutch Pressure Control Solenoid Valve A and B Replacement

1. Do the battery removal procedure Removal and Replacement.

2. Remove the engine cover and the air cleaner assembly.

3. Remove the battery base.

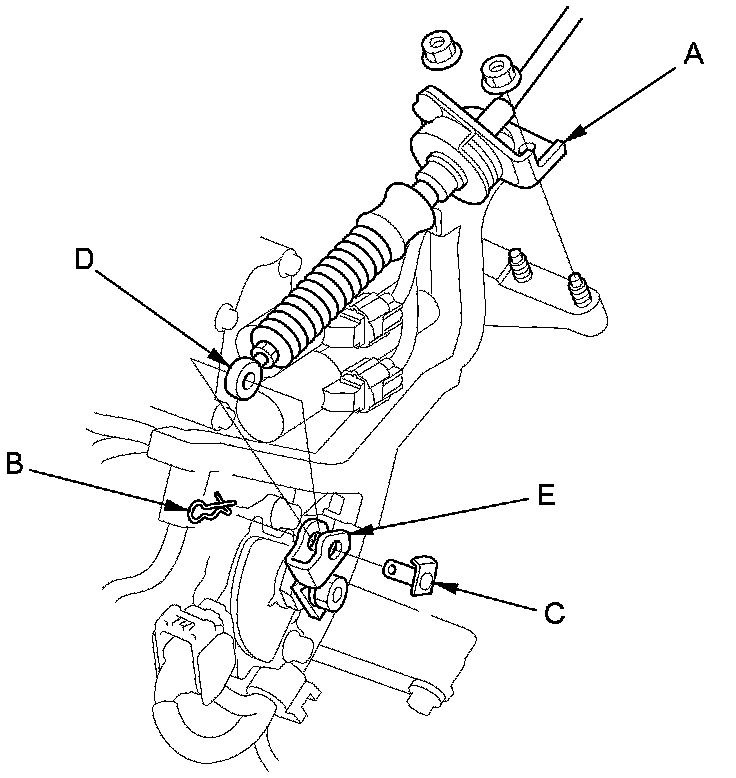

4. Remove the nuts securing the shift cable bracket (A).





5. Remove the spring clip (B) and the control pin (C), then separate the shift cable end (D) from the selector control lever (E).

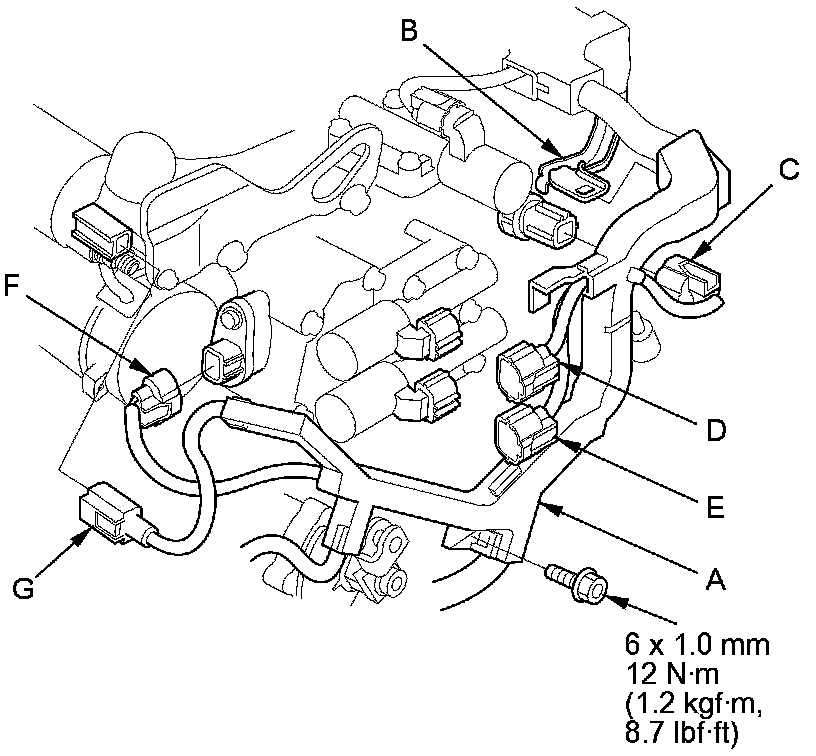

6. Remove the bolt securing the harness cover (A).





7. Remove the harness cover/clamp bracket (B), disconnect the 4th clutch transmission fluid pressure switch connector (C), then remove the harness cover from the bracket.

8. Disconnect the A/T clutch pressure control solenoid valve A connector (D), the A/T clutch pressure control solenoid valve B connector (E), the shift solenoid wire harness connector (F), and the S terminal connector ('08-10 models) (G).

9. Remove A/T clutch pressure control solenoid valves A and B, the ATF pipes (C), the gasket (D), and the O-rings (E). Note the lengths and the locations of the ATF pipes.





10. Clean the mounting surfaces and the fluid passages of the shift solenoid valve body and the solenoid valve cover.

11. Install a new gasket on the shift solenoid valve cover, and install the ATF pipes with the filter end in the transmission housing. Install new O-rings over the ATF pipes.

12. Install A/T clutch pressure control solenoid valves A and B.

13. Install the harness cover on the cover bracket, and secure it with the bolt.

14. Check the connectors for rust, dirt, or oil, and clean or repair if necessary, then connect the connectors securely.

15. Install the harness clamp on the bracket.

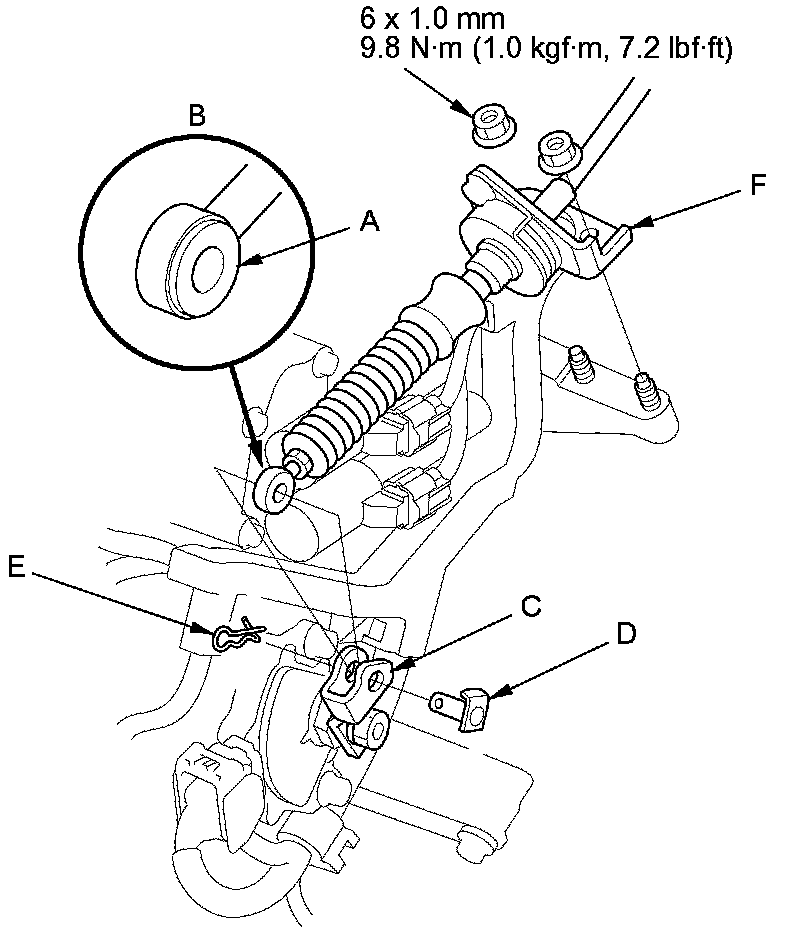

16. Apply molybdenum grease to the hole in the bushing (A) in the shift cable end (B). Attach the shift cable end to the control lever (C), then insert the control pin (D) into the control lever hole through the shift cable end, and secure the control pin with the spring clip (E).





17. Secure the shift cable bracket (F) with the nuts.

18. Install the battery base.

19. Install the air cleaner assembly and the engine cover.

20. Do the battery installation procedure Removal and Replacement.
