A/T Secondary Shaft 1st Gear Axial Clearance Inspection

A/T Secondary Shaft 1st Gear Axial Clearance Inspection

Special Tools Required

- Driver Handle, 40 mm I.D. 07746-0030100
- Bearing Driver Attachment, 30 mm 07746-0030300

1. Install the idler gear (A), the thrust needle bearing (B), the 1st gear collar (C), the needle bearing (D), the 1st gear assembly (E), the thrust needle bearing (F), the 52 mm washer (G), and the 1st/1st-hold clutch (H) on the secondary shaft (I). Install the idler gear and the 52 mm washer in the direction shown. Do not install the O-rings during inspection.

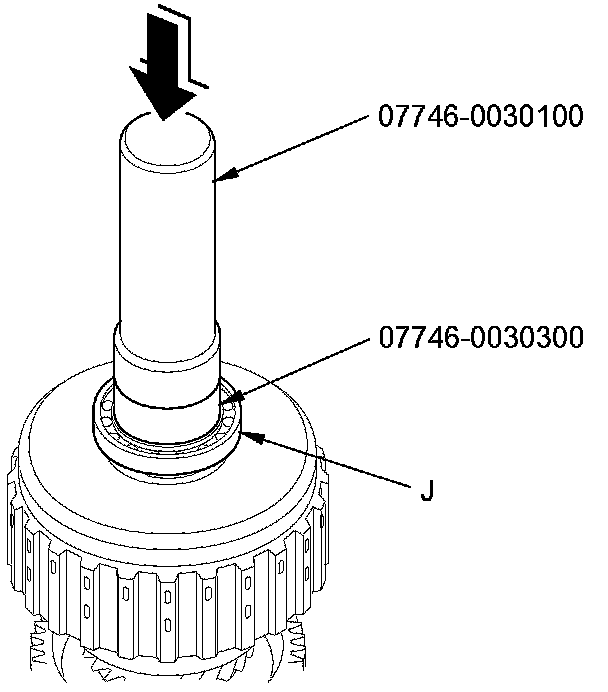

2. Install the ball bearing (J) over the 1st/1st-hold clutch guide using the 40 mm driver handle, the 30 mm attachment, and a press.

3. Install the splined washer (K) with the marked side (L) up over the ball bearing in the same manner as installing the ball bearing using the 40 mm driver handle, the 30 mm attachment, and a press.

4. Install the old lock nut (M) and tighten it to 29 Nm (3.0 kg-m, 22 lb-ft).

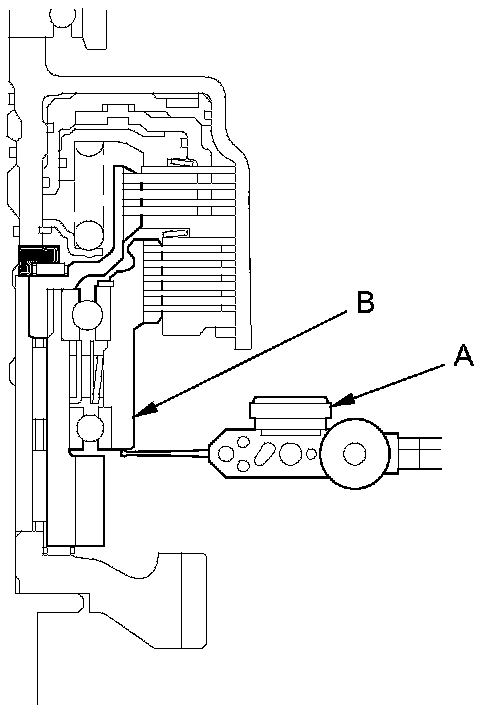

5. Set a dial indicator (A) on the 1st clutch hub (B).

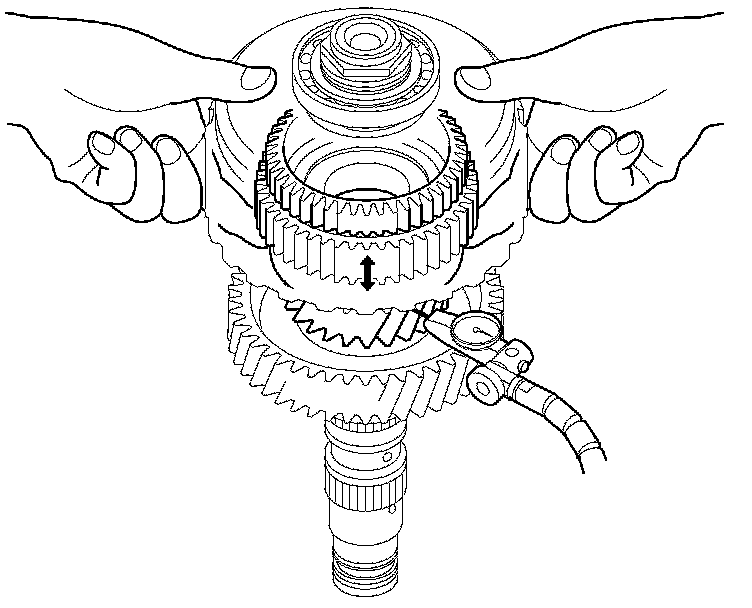

6. Measure the 1st gear axial clearance in at least three places while moving 1st gear. Use the average as the actual clearance.










7. If the clearance is out of the standard, remove the washer and measure its difference.






8. Select and install a new washer, then recheck the clearance.

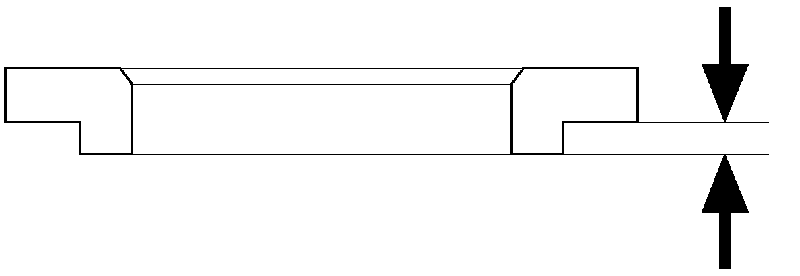

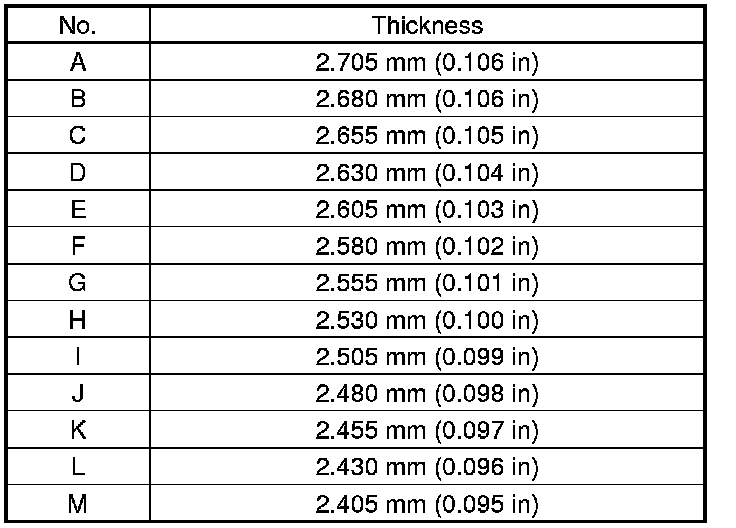

WASHER, 52 mm
