A/T Shift Lever Knob Replacement

A/T Shift Lever Knob Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

1. Remove the shift lever assembly A/T Shift Lever Removal.

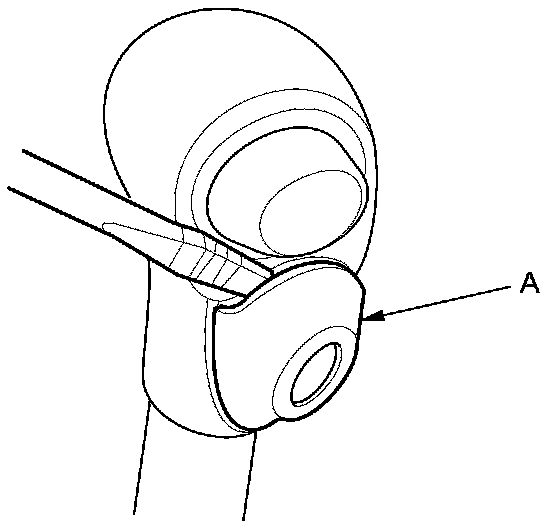

2. Wrap the end of a flat-tip screwdriver with tape, pry off the D3 switch cover lock, and remove the D3 switch cover (A).

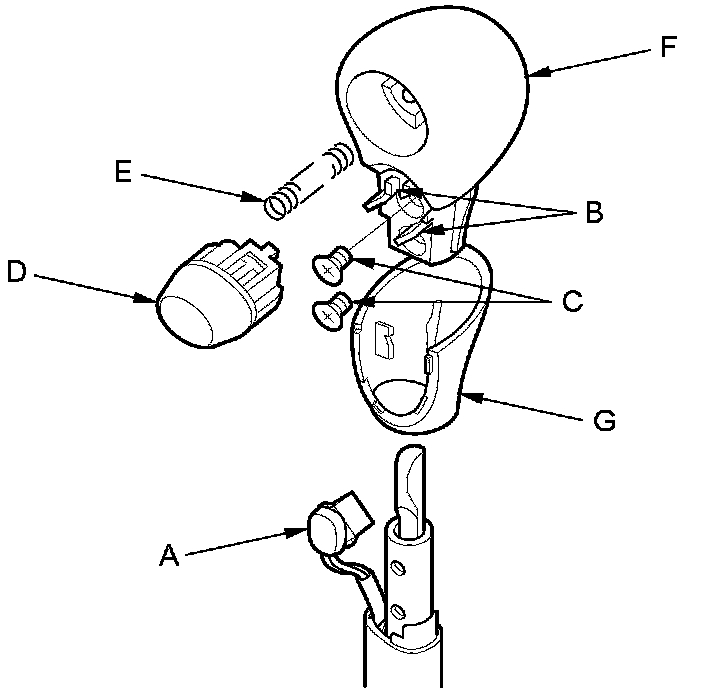

3. Remove the D3 switch (A) by expanding its locks (B). Remove the screws (C), the shift lever button (D), the button spring (E), the shift lever knob (F), and the shift lever knob cover (G).

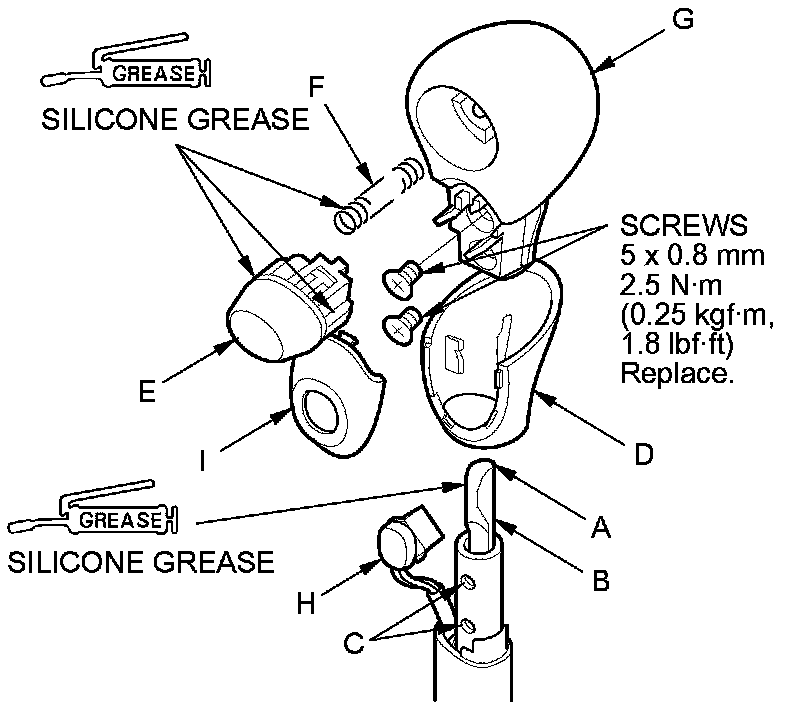

4. Point the bevel (A) of the shift lever rod (B) toward the threaded holes (C), and push it into the bottom. Apply silicone grease to top of the rod.





5. Install the shift lever knob cover (D).

6. Apply silicone grease to the shift lever button (E) and the button spring (F), then install the spring, the shift lever button, and the shift lever knob (G).

7. Install the shift lever knob to the shift lever with new screws.

8. Install the D3 switch (H) and the D3 switch cover (I).

9. Install the shift lever assembly A/T Shift Lever Installation.
