Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

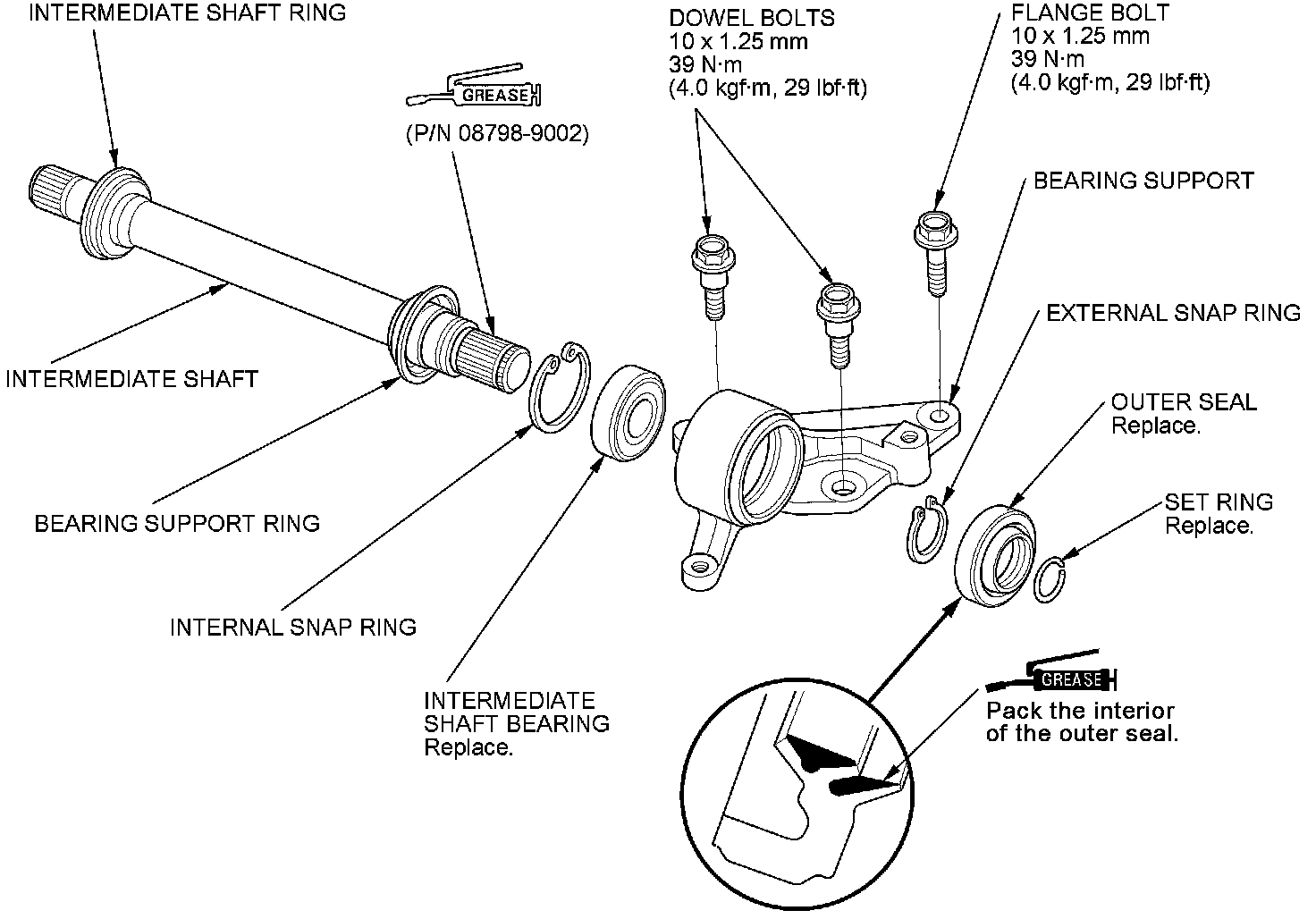

Exploded View





Special Tools Required

- Support Base Attachment 07LAF-SM40300
- Attachment, 52 x 55 mm 07746-0010400
- Driver Handle, 15 x 135L 07749-0010000
- Fork Seal Driver, 39.2 x 49.5 x 15 mm 07947-4630100
- Support Base 07965-SD90100

NOTE: Refer to the Exploded View, as needed, during this procedure.

1. Clean the disassembled parts with solvent, and dry them with compressed air.

NOTE: Do not wash the rubber parts with solvent.

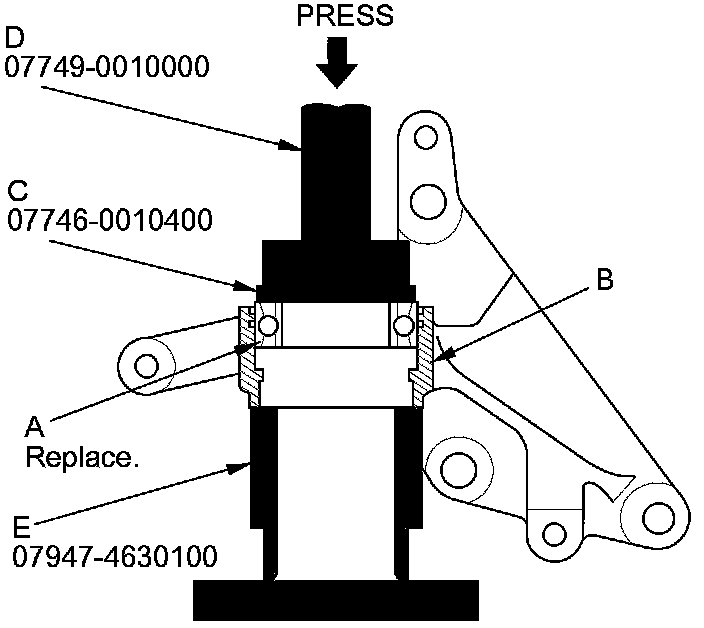

2. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm attachment (C), the 15 x 135L driver handle (D), the 39.2 x 49.5 x 15 mm fork seal driver (E) and a press.

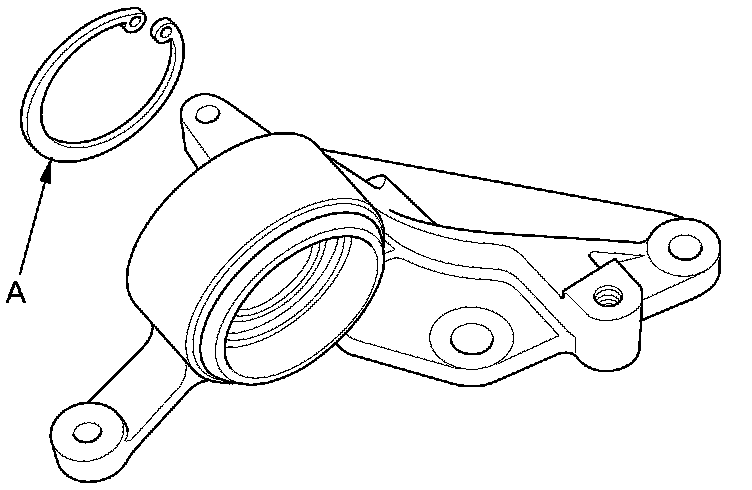

3. Install the internal snap ring (A) into the groove of the bearing support.

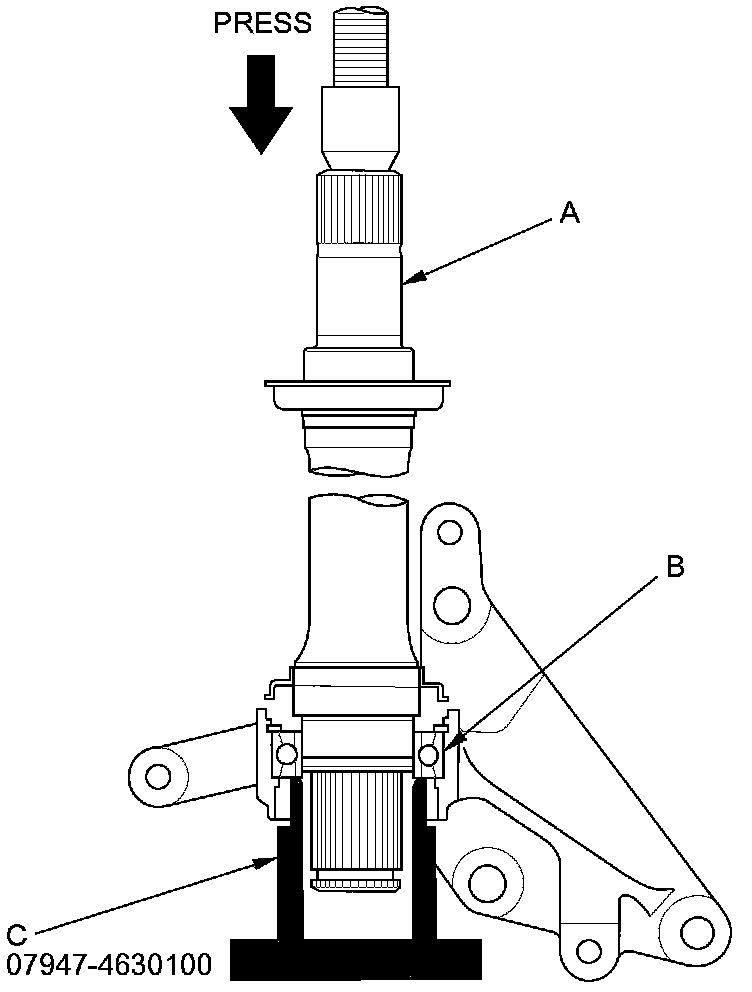

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 39.2 x 49.5 x 15 mm fork seal driver (C) and a press.

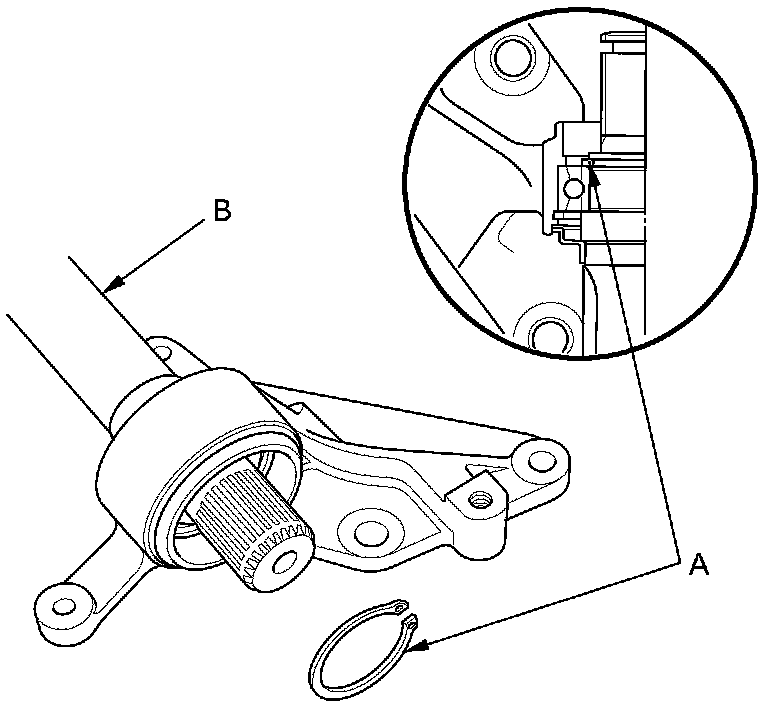

5. Install the external snap ring (A) into the groove of the intermediate shaft (B).

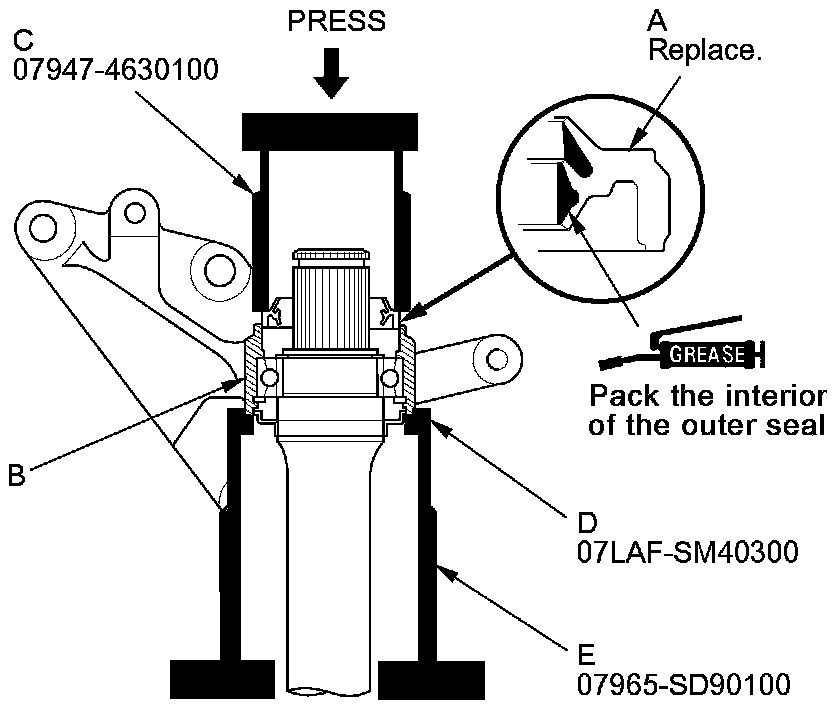

6. Install the new outer seal (A) into the bearing support (B) using the 39.2 x 49.5 x 15 mm fork seal driver (C), the support base attachment (D), the support base (E), and a press.
