Power Window Control Module: Testing and Inspection

Resetting the Power Window Control Unit (Master Switch)

Resetting the driver's power window is required when any of the following have occurred:






Using the HDS

1. Connect the HDS to the vehicle's DLC.

2. Turn the ignition switch to ON (II), then enter the vehicle's VIN and mileage at the prompts.

3. Select BODY ELECTRICAL from the System Selection menu.

4. From the BODY ELECTRICAL SYSTEM SELECT menu, select Power Windows.

5. From the MODE menu, select Adjustments.

6. From the ADJUSTMENT menu, select WINDOW PRESET for driver's side window.

7. Follow the prompts on the screen.

8. Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN function.

Without the HDS

1. Turn the ignition switch to ON (II).

2. Move the driver's window all the way down by using the driver's window DOWN switch.

3. Open the driver's door.

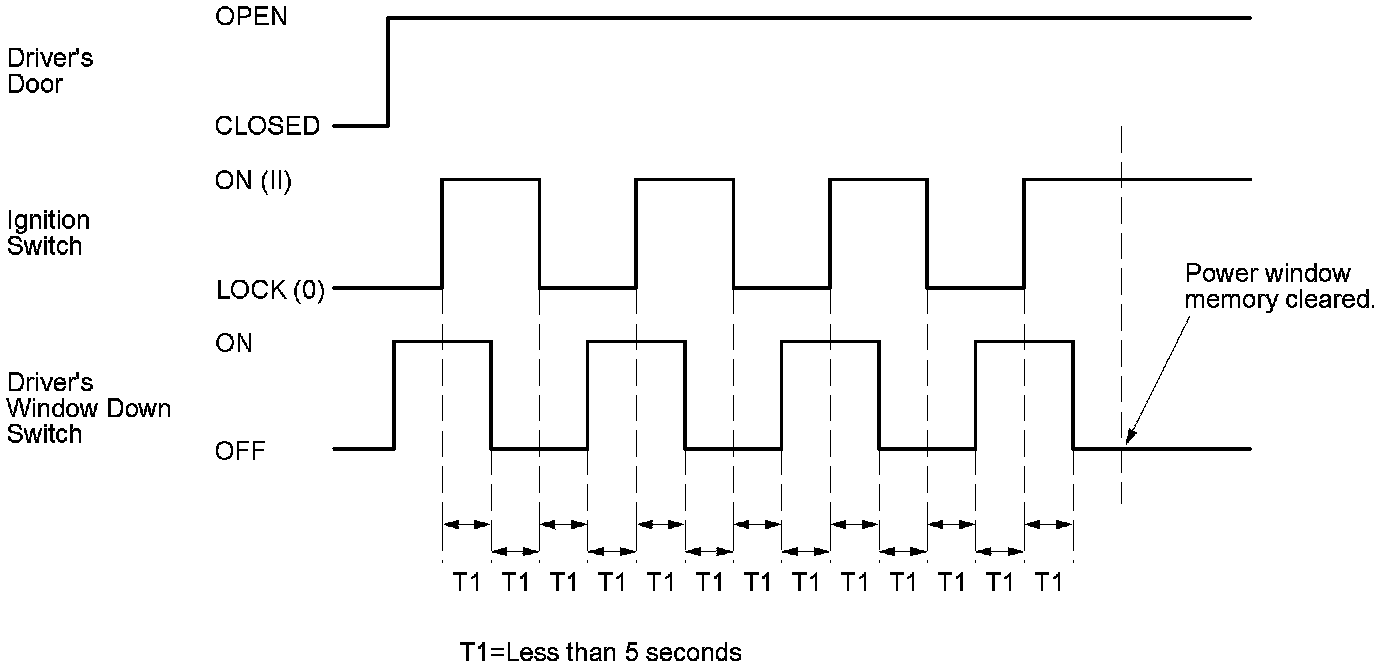

NOTE: Steps 4-7 must be done within 5 seconds of each other.





4. Turn the ignition switch to LOCK (0).

5. Push and hold the driver's window DOWN switch.

6. Turn the ignition switch to ON (II).

7. Release the driver's window DOWN switch.

8. Repeat step 4-7 three more times.

9. Wait 1 second.

10. Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 1.

11. Move the driver's window all the way down by using the driver's window DOWN switch.

12. Pull up and hold the driver's window UP switch until the window reaches the fully closed position, then continue to hold the switch for 1 second.

13. Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN function.

If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps. If it still does not work, go to B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.
