Washer Motor Test

Washer Motor Test

1. Remove the right inner fender:

- '07 model
- '08-10 models Front Inner Fender Replacement

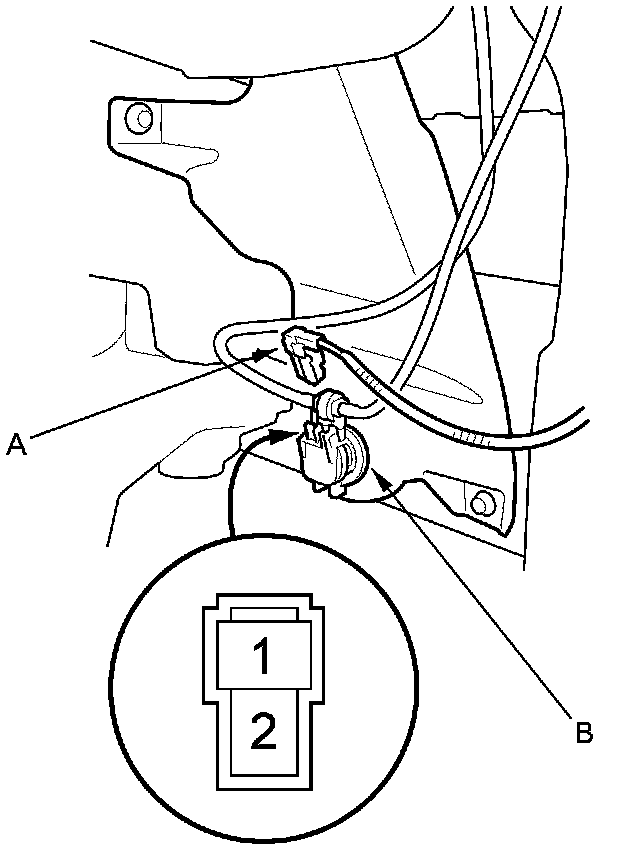

2. Disconnect the 2P connector (A) from the washer motor (B).





3. Test the motor by connecting battery power to terminal No. 1 (No. 2) and ground terminal No. 2(No. 1) of the washer motor. The motor should run.

( ): Rear window washer direction.

- If the motor does not run or fails to run smoothly, replace it.
- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
