Windshield Washer Hose: Service and Repair

Washer Tube Replacement

1. Remove the right inner fender:

- '07 model
- '08-10 models Front Inner Fender Replacement

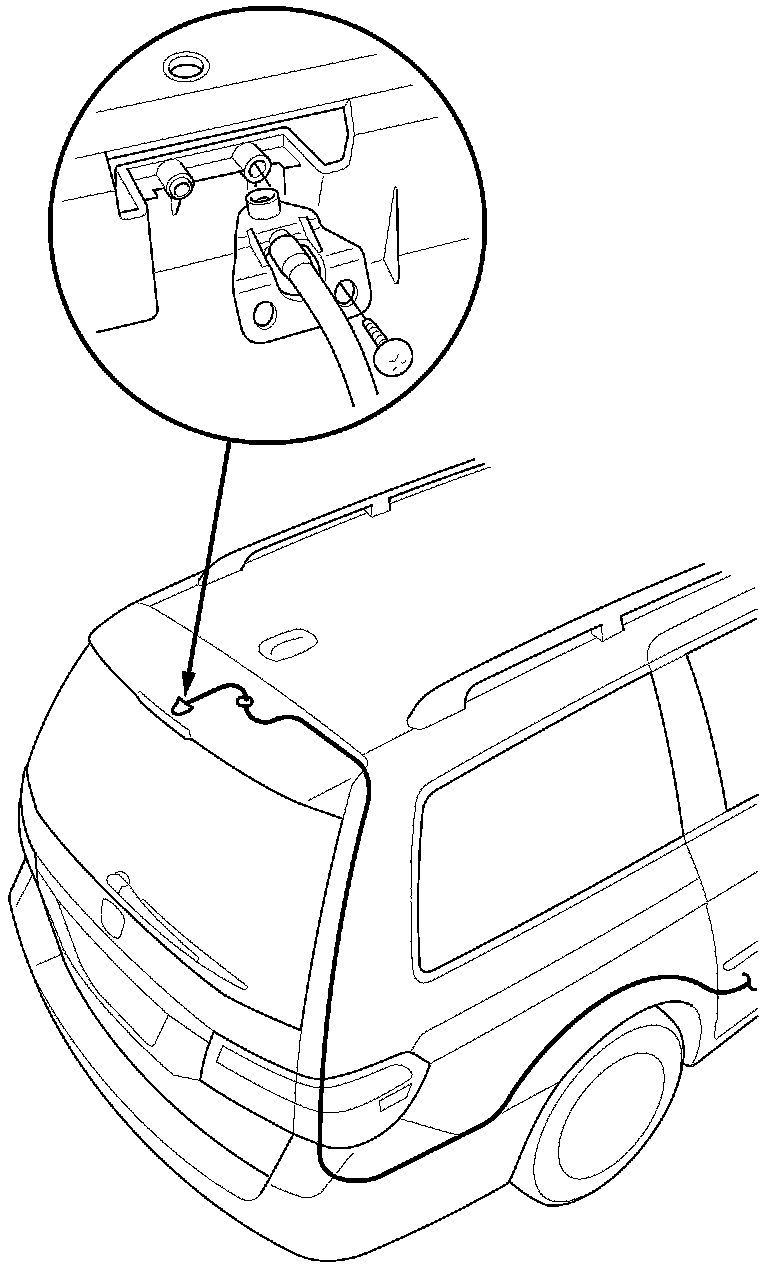

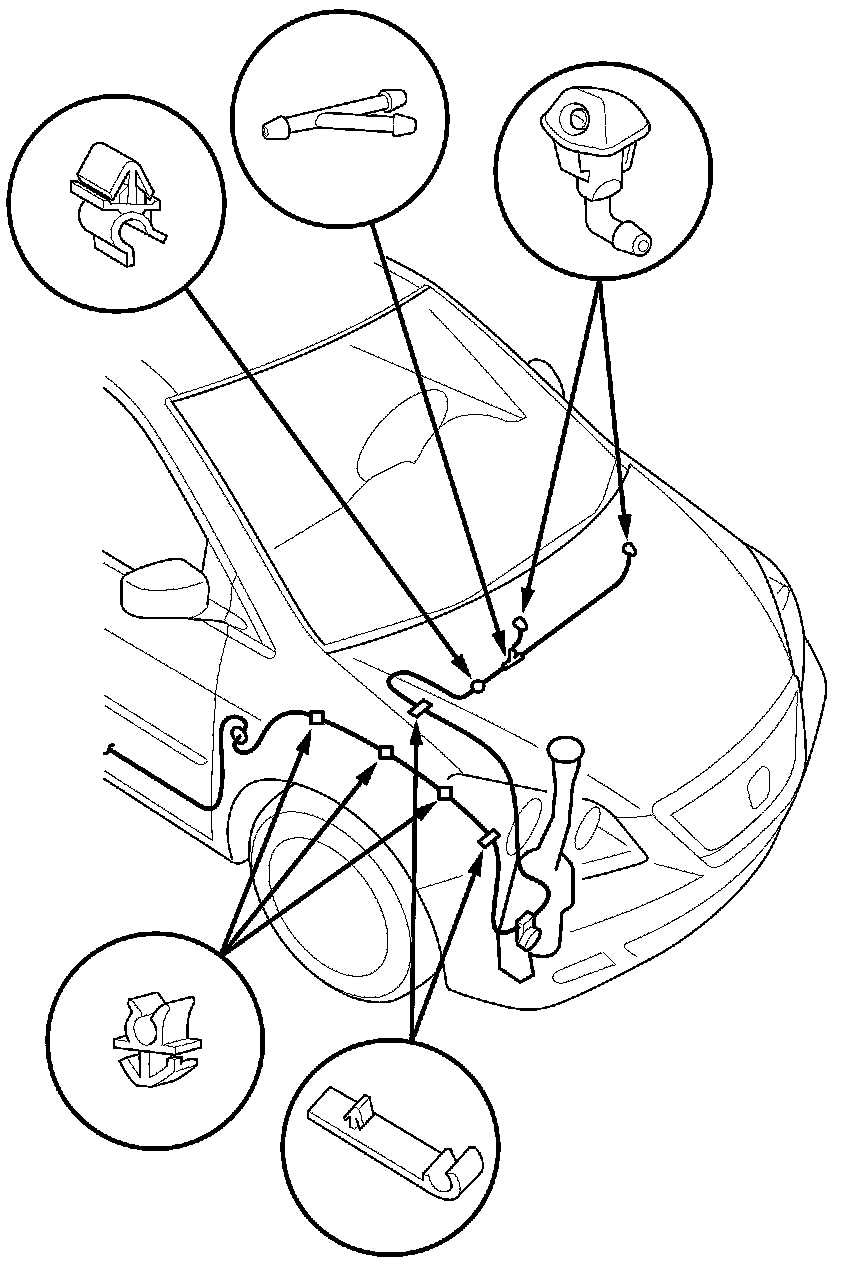

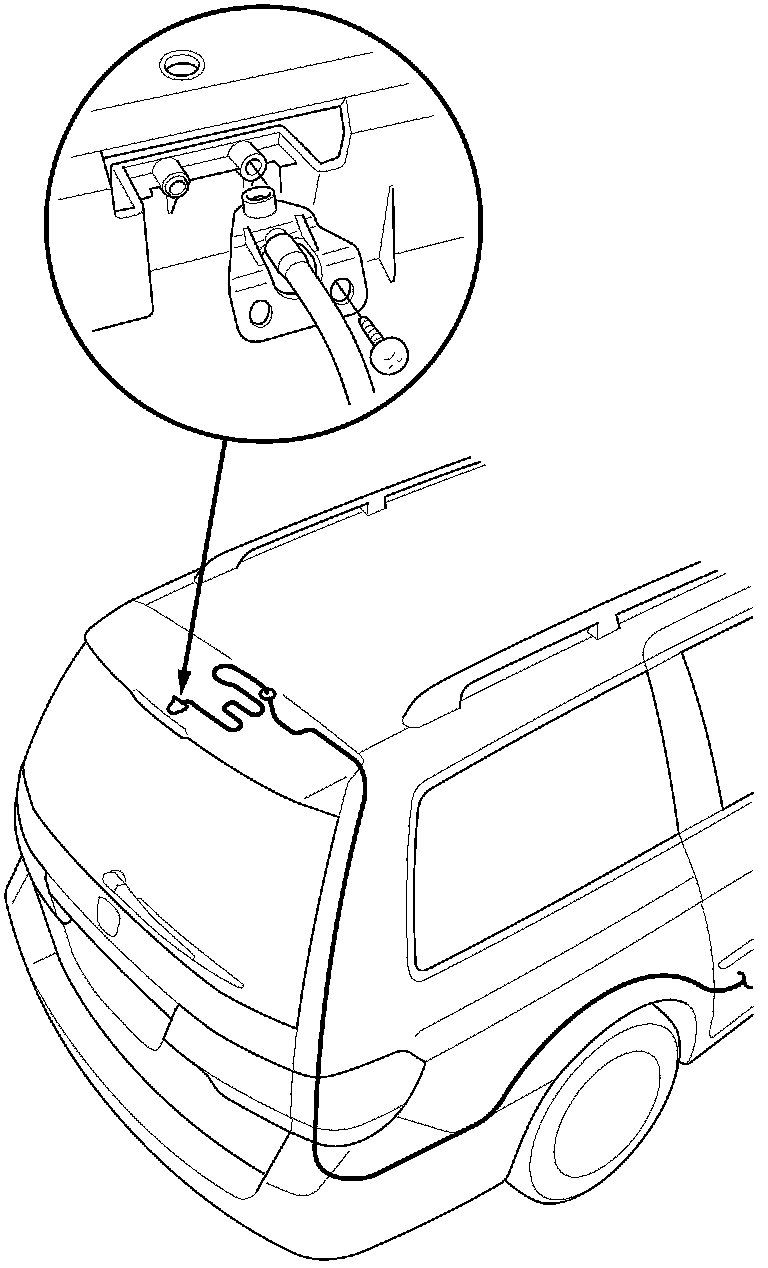

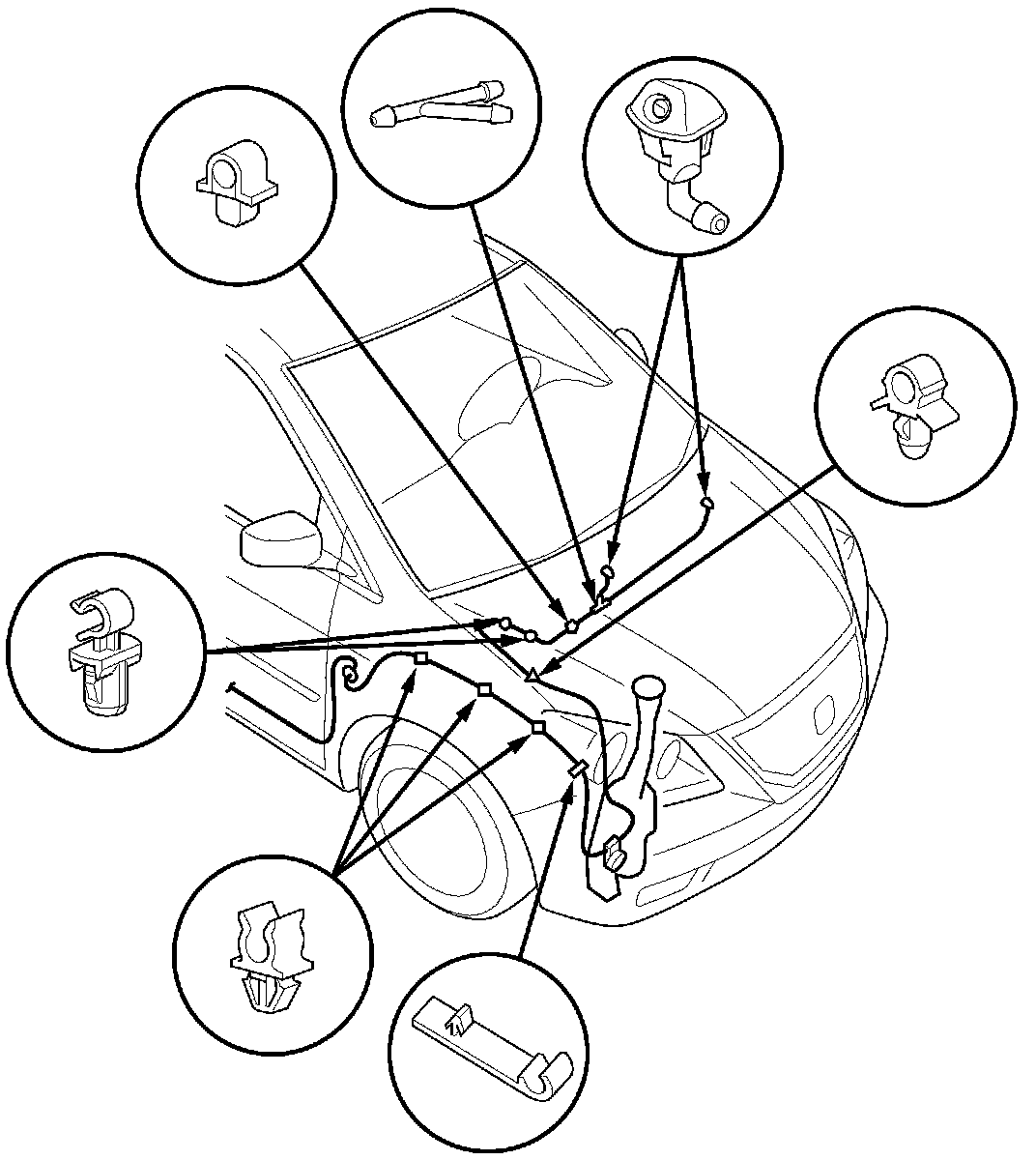

2. Remove the windshield washer nozzles and clips, then remove the tubes.

'07 model





'08-10 models





'07 model





'08-10 models





3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
