Rear Window Wiper Motor Replacement

Rear Window Wiper Motor Replacement

1. Open the tailgate, and remove the tailgate trim panel .

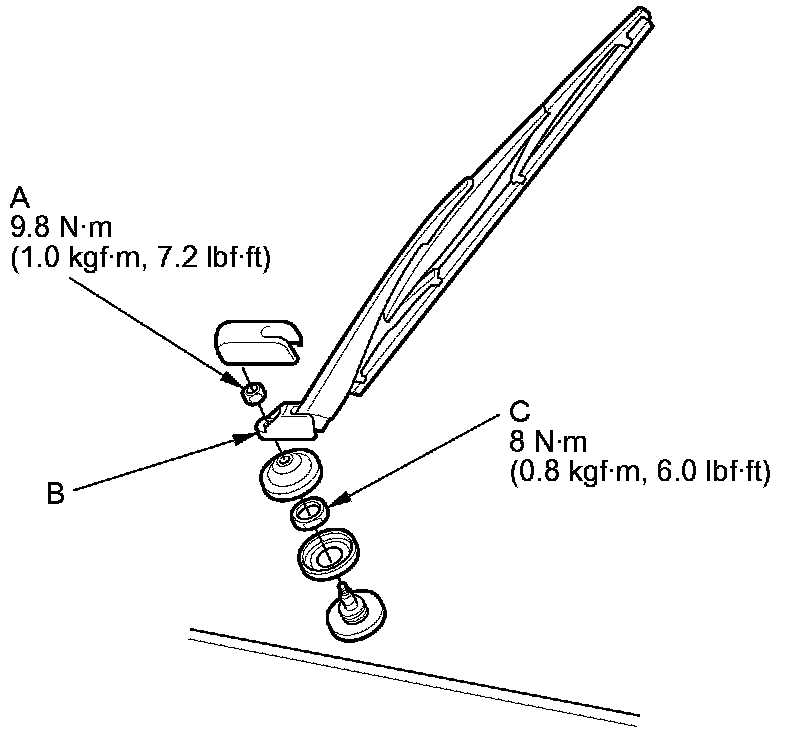

2. Remove the mounting nut (A), the rear wiper arm (B) and the special nut (C).

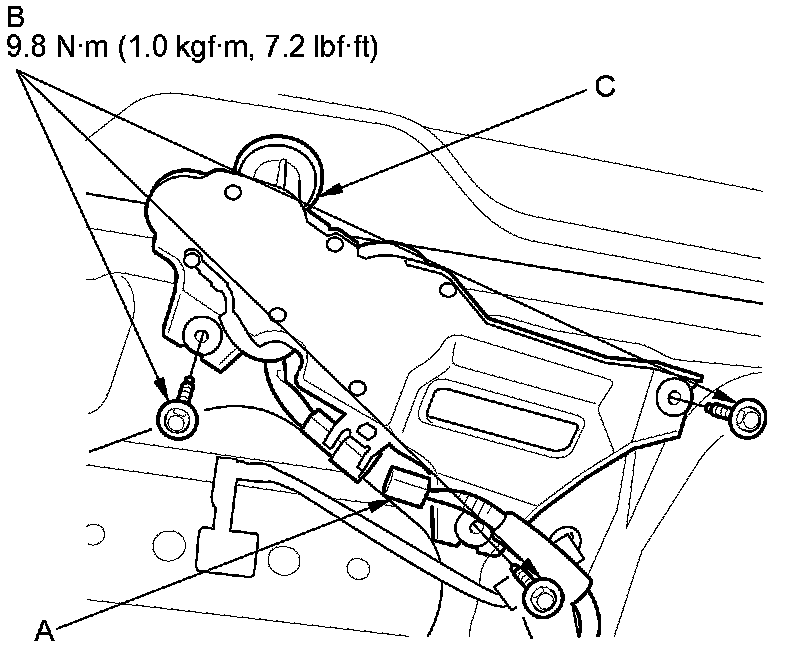

3. Disconnect the 4P connector (A) and remove the three mounting bolts (B), then remove the rear window wiper motor (C).





4. Install in the reverse order of removal.
