Dashboard Passenger's Tray Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to scratch the dashboard and its related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the passenger's dashboard trim Passenger's Dashboard Trim Removal/Installation.

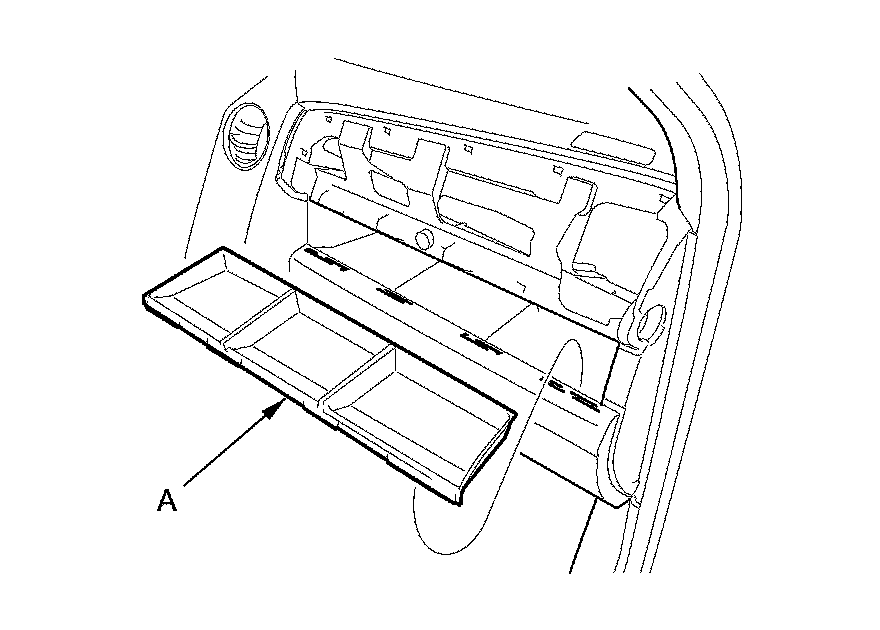

2. Remove the passenger's tray mat (A).

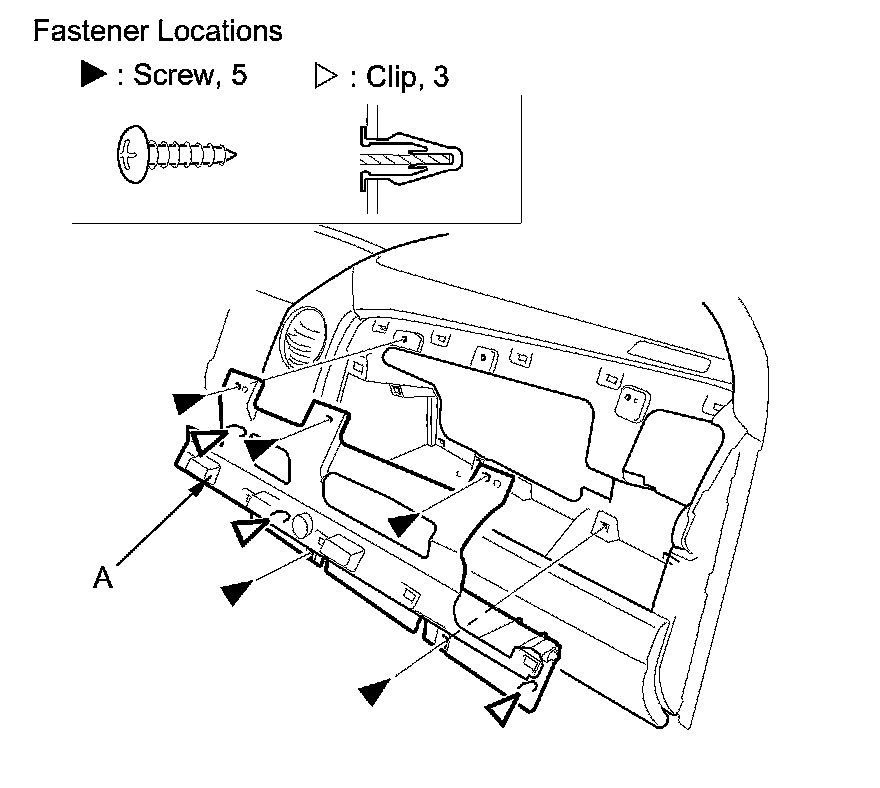

3. Remove the screws and detach the clips, then remove the passenger's tray (A).






4. Install the tray in the reverse order of removal, and if the clips are damaged or stress-whitened, replace them with new ones.
