Glove Compartment Lock: Service and Repair

Glove Box Striker Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard and its related parts.

1. Remove the glove box Service and Repair.

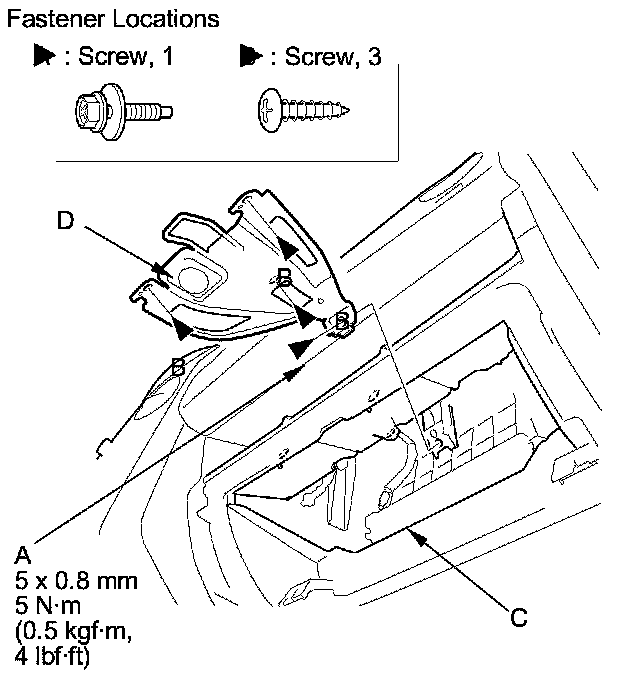

2. Remove the bolt (A) and the screws (B), disconnect the glove box light bulb socket (C), then remove the glove box striker (D).





3. Install the striker in the reverse order of removal. Make sure the glove box light bulb socket is connected securely.
