Second Row Seat-Back Recline Lever Replacement

Second Row Seat-Back Recline Lever Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to bend the cable.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the second row seat-back recline cable Second Row Seat-Back Recline Cable Replacement.

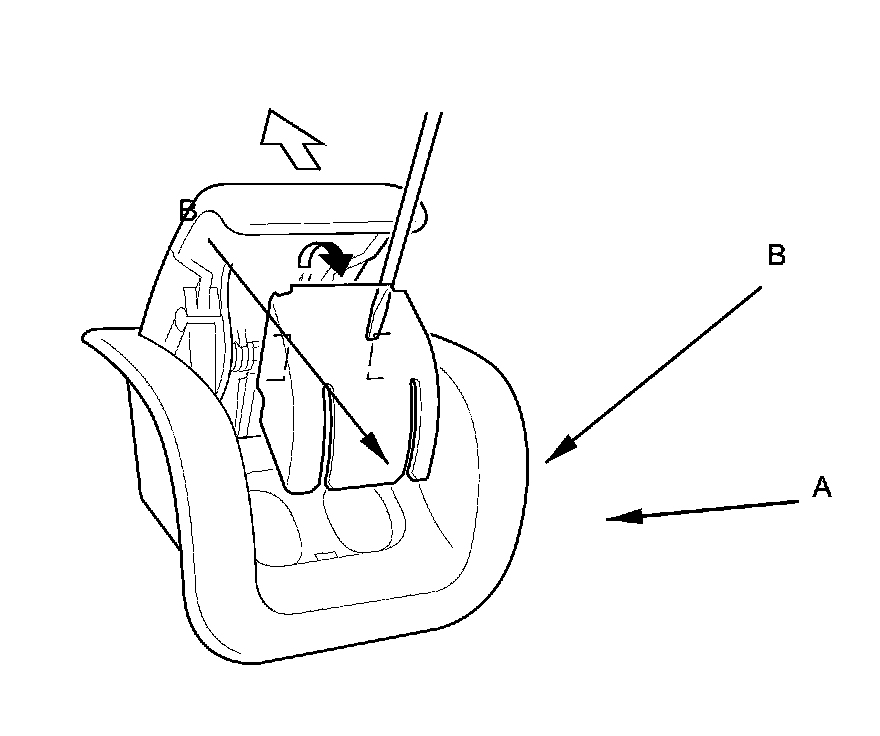

2. Carefully pry out the cover (A) with a flat-tip screwdriver at the gap while holding the lever fully open. Release the tabs (B), then remove the cover.

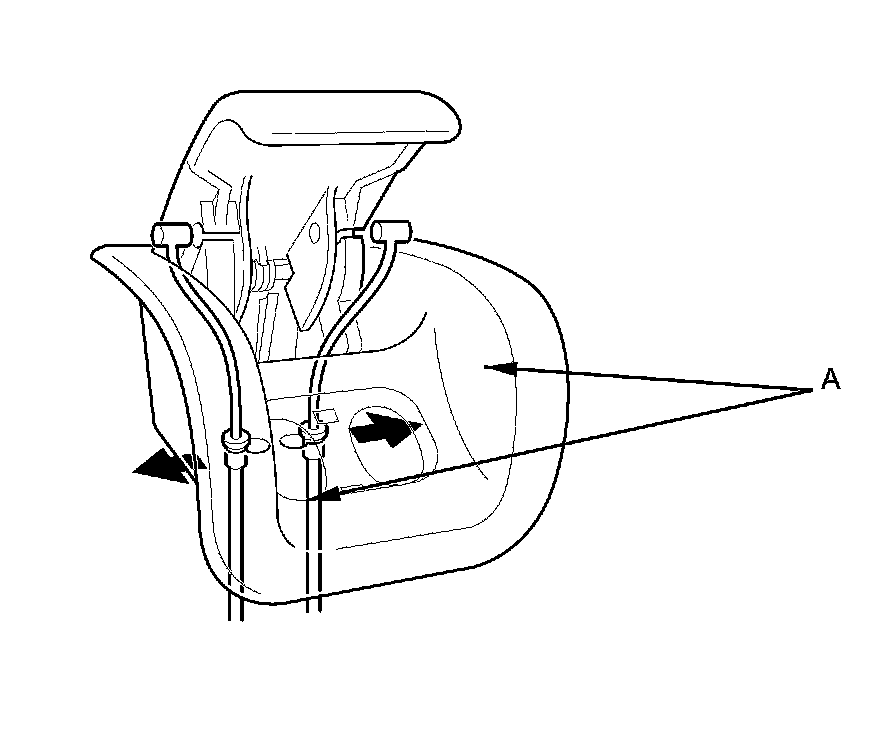

3. Disconnect the recline cables (A).






4. Install the second row seat-back recline lever in the reverse order of removal, and make sure the cables are connected securely.
