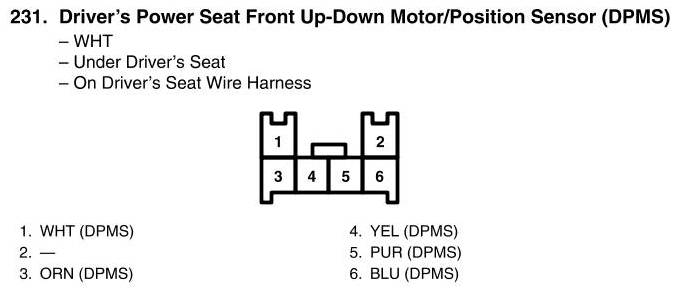

View 231 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View (DPMS)
View 231 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View (DPMS)
