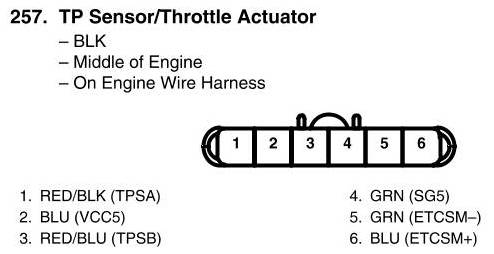

View 257 - TP Sensor/Throttle Actuator Connector View
View 257 - TP Sensor/Throttle Actuator Connector View
