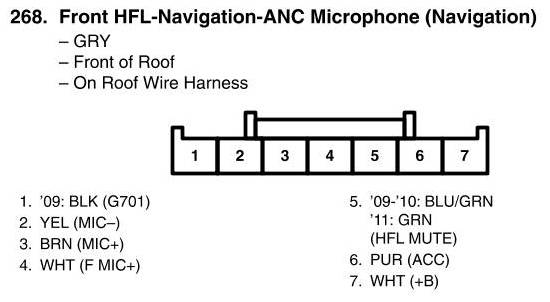

View 268 - Front HFL-Navigation-ANC Microphone Connector View (Navigation)
View 268 - Front HFL-Navigation-ANC Microphone Connector View (Navigation)
