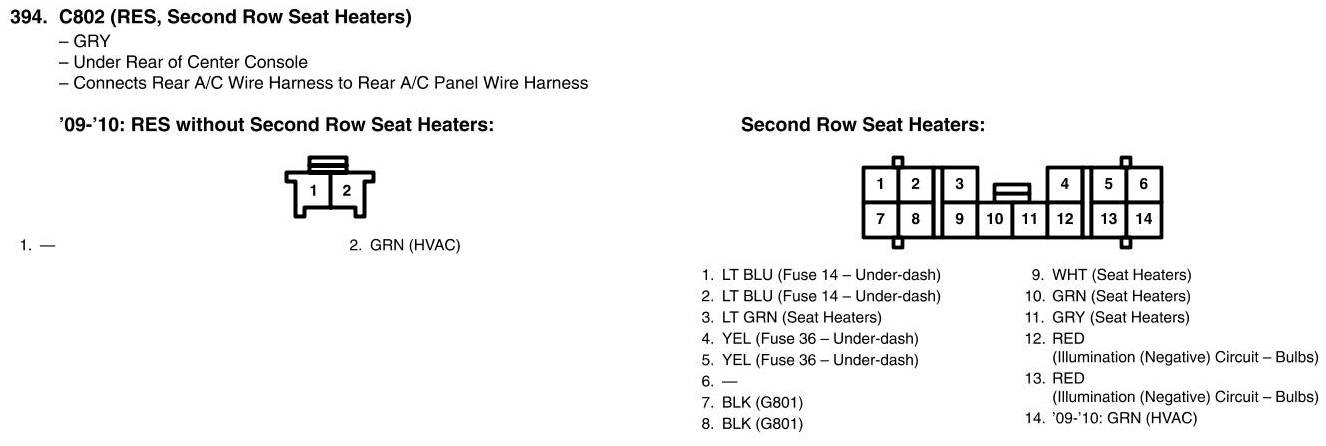

View 394 - C802 Connector View (RES, Second Row Seat Heaters)
View 394 - C802 Connector View (RES, Second Row Seat Heaters)
