Honda Truck
>>
2010
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

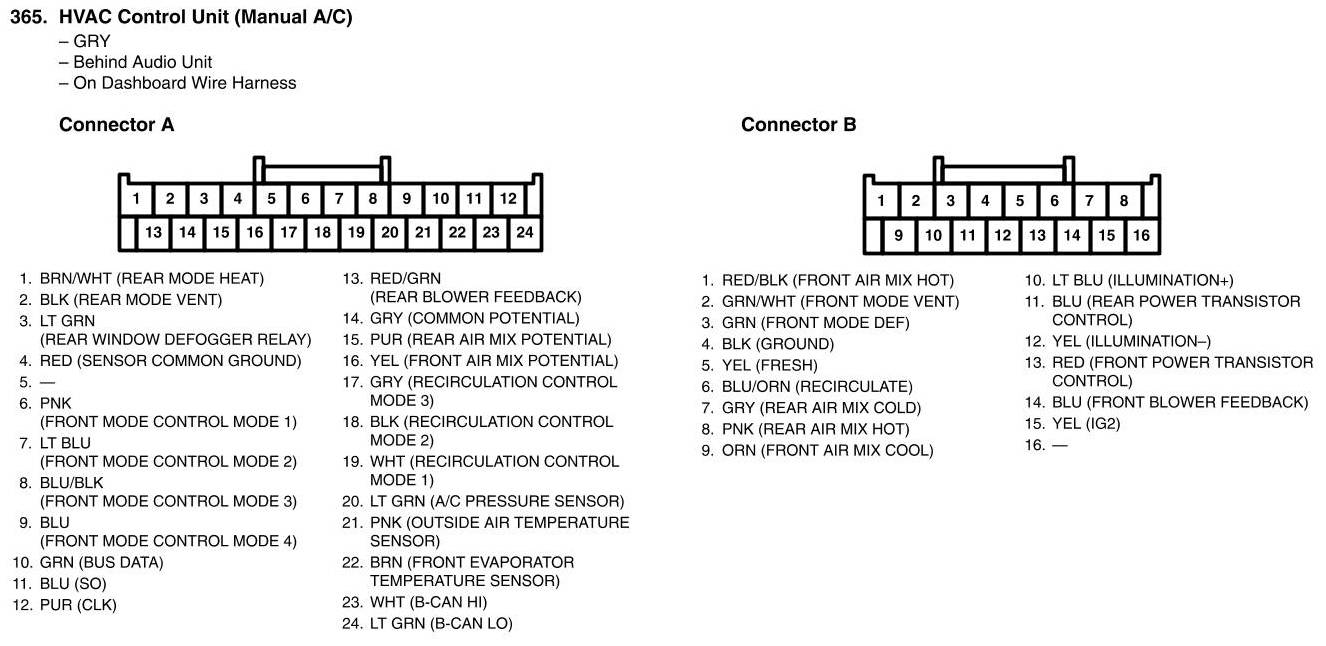

HVAC Control Unit Connector View (Manual A/C)
HVAC Control Unit Connector View (Manual A/C)
