Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

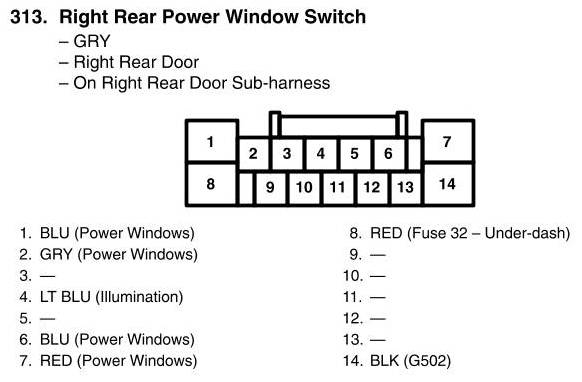

Right Rear Power Window Switch Connector View
Right Rear Power Window Switch Connector View
