Seat Temperature Relay
>>

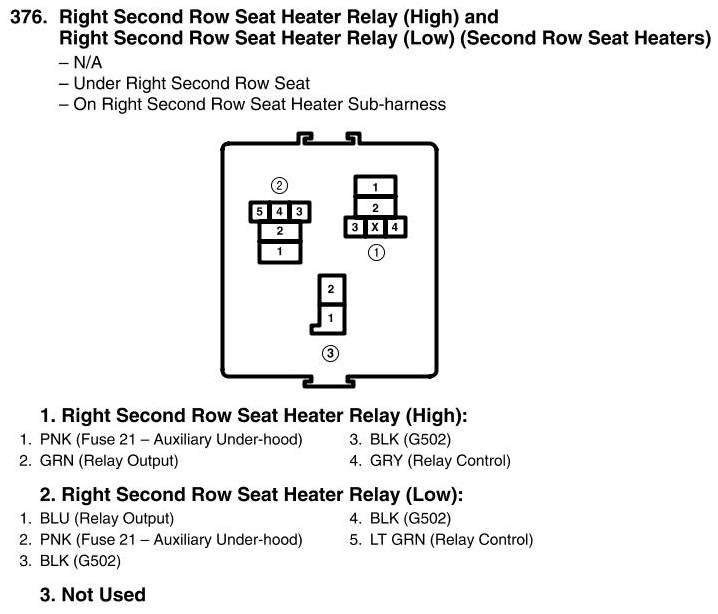

Right Second Row Seat Heater Relay (High) And Right Second Row Seat Heater Relay (Low) Connector View (Second Row Seat Heaters)
Right Second Row Seat Heater Relay (High) And Right Second Row Seat Heater Relay (Low) Connector View (Second Row Seat Heaters)
