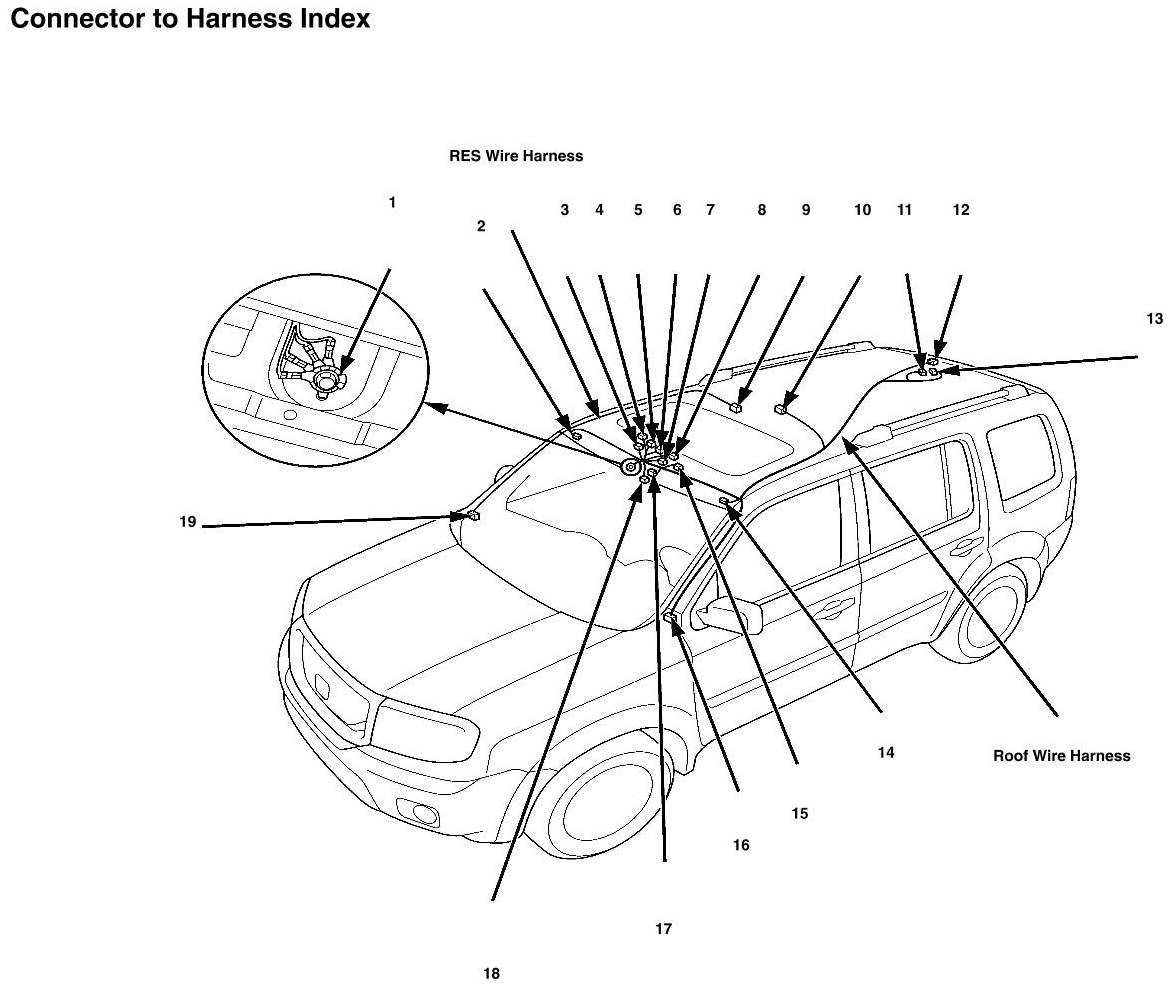

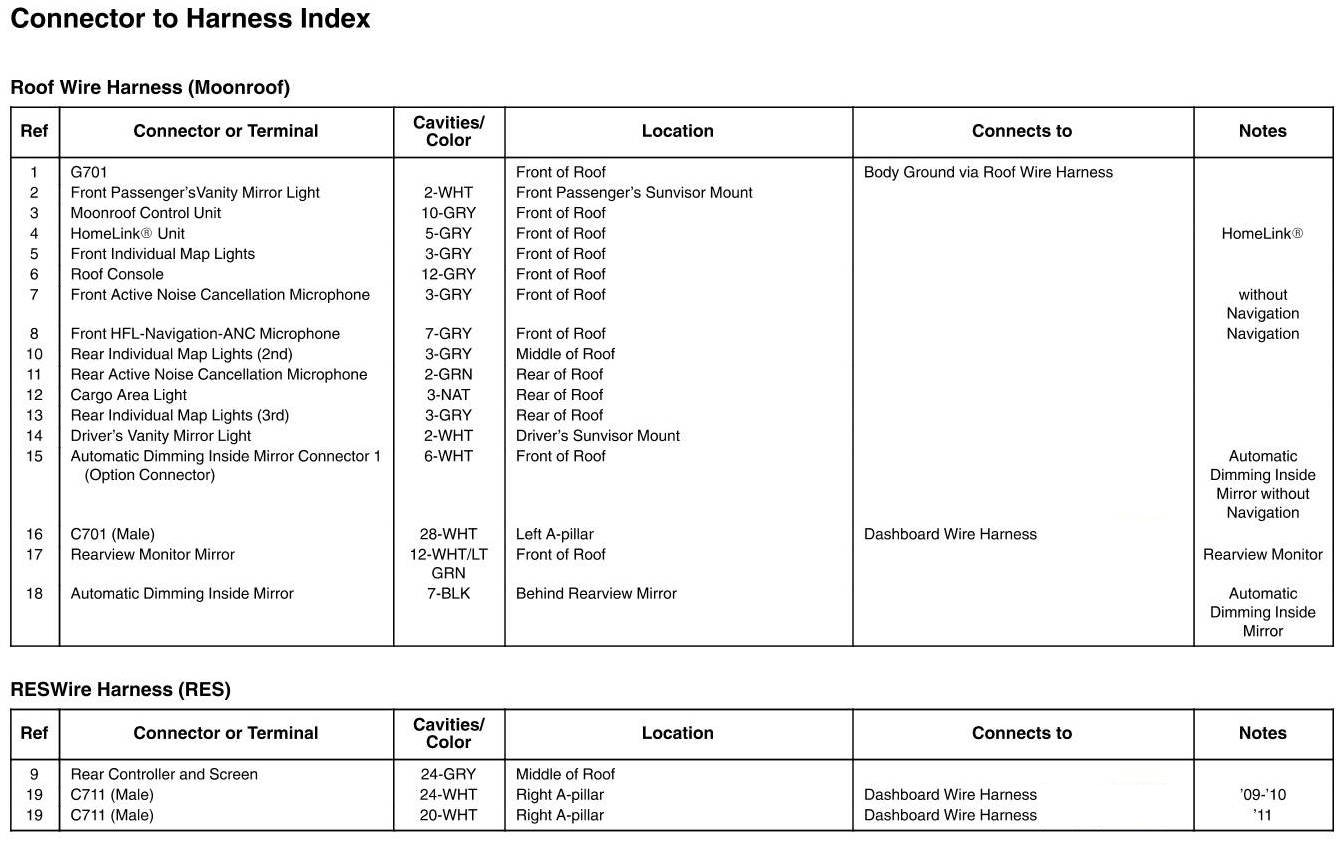

Roof Wire Harness (Moonroof) and RES Wire Harness Connector and Harness Locations
Roof Wire Harness (Moonroof) and RES Wire Harness Connector and Harness Locations
