Instrument Cluster / Carrier: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO data and the maintenance information data from the gauge control module with the HDS Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal/Installation.

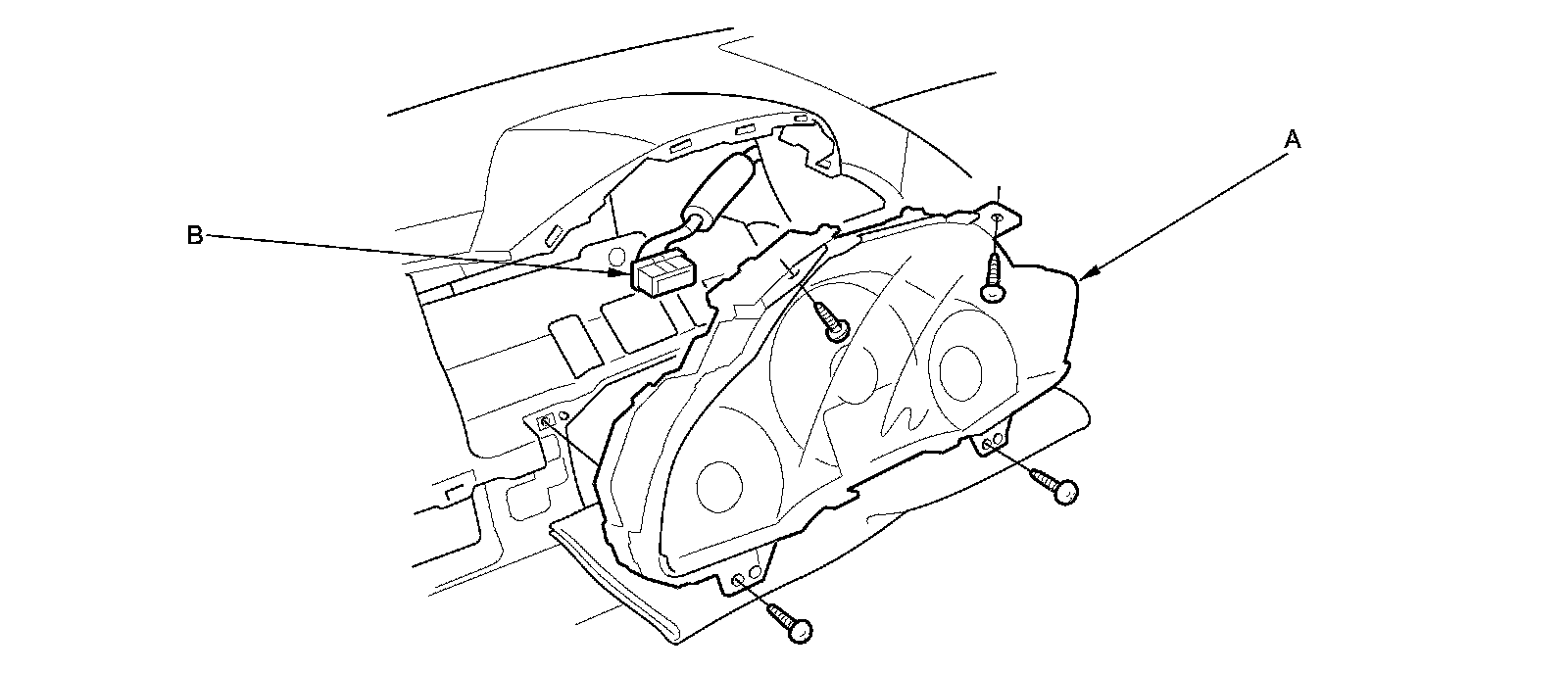

2. Remove the four screws from the gauge control module (A).





3. Disconnect the 32P connector (B) from the gauge control module.

4. Install the gauge control module in the reverse order of removal.

5. Write the ODO data and transfer maintenance information data to the new gauge control module Programming and Relearning.

NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with HDS.
