Turn Signal Lamp: Service and Repair

Side Turn Signal Light Replacement

Touring model

1. Remove the mirror holder Mirror Holder Replacement.

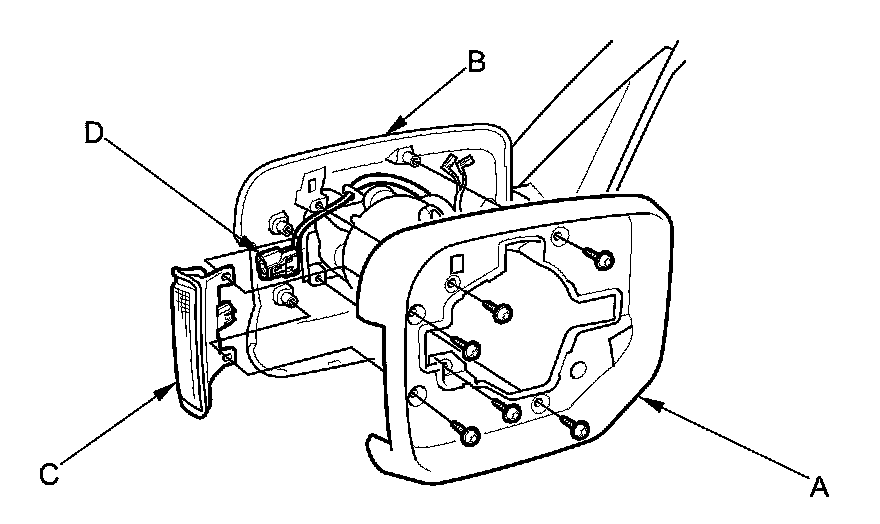

2. Remove the six TORX screws using a TORX T10 bit, and visor (A) from the mirror (B).






3. Pull out the side turn signal light (C) slightly from the mirror (B).

4. Disconnect the 2P connector (D) from the side turn signal light.

5. Install the light in the reversal order of removal.
