Connector Locations




Under-Hood Fuse/Relay Box Connector Locations

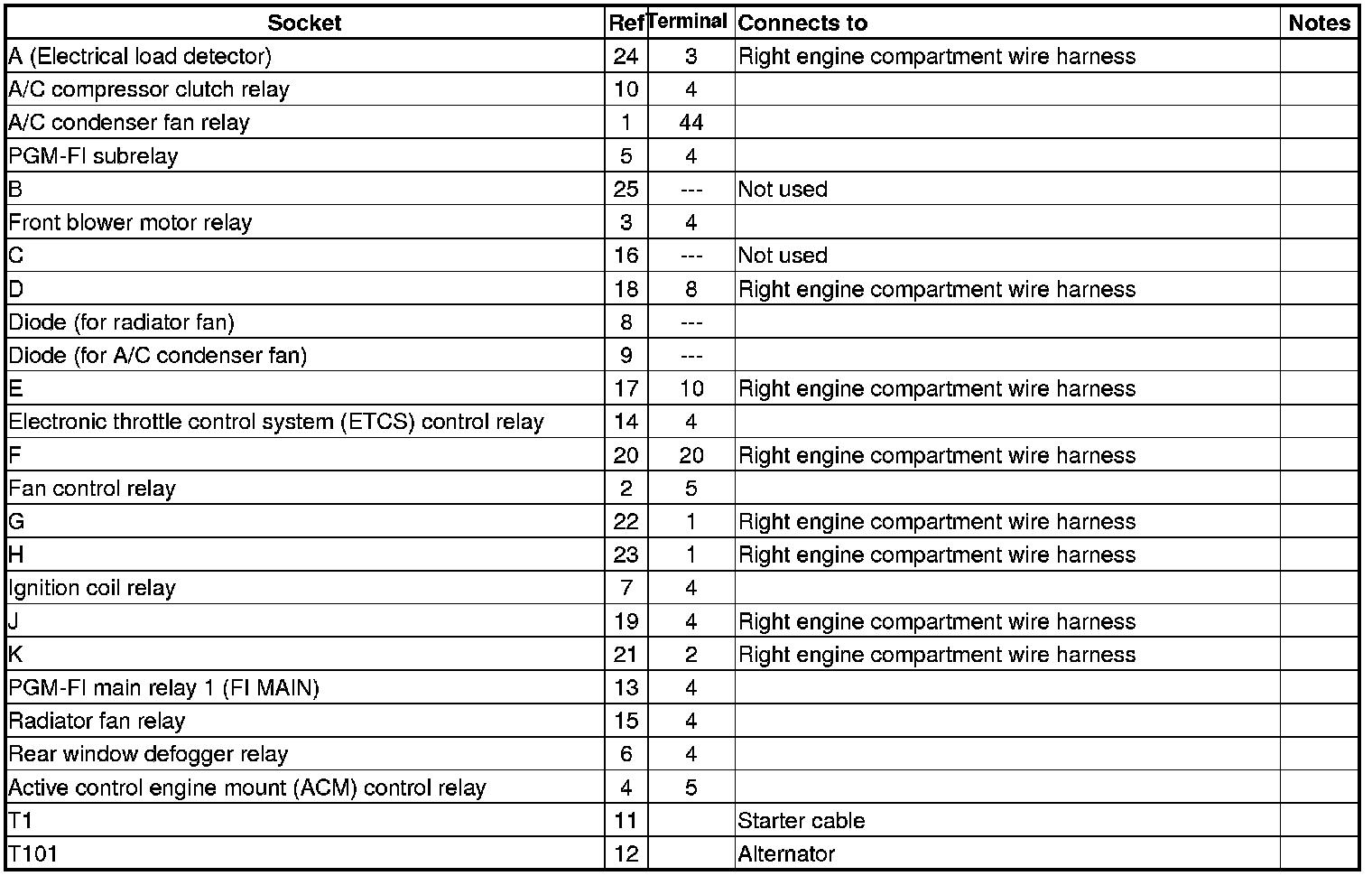

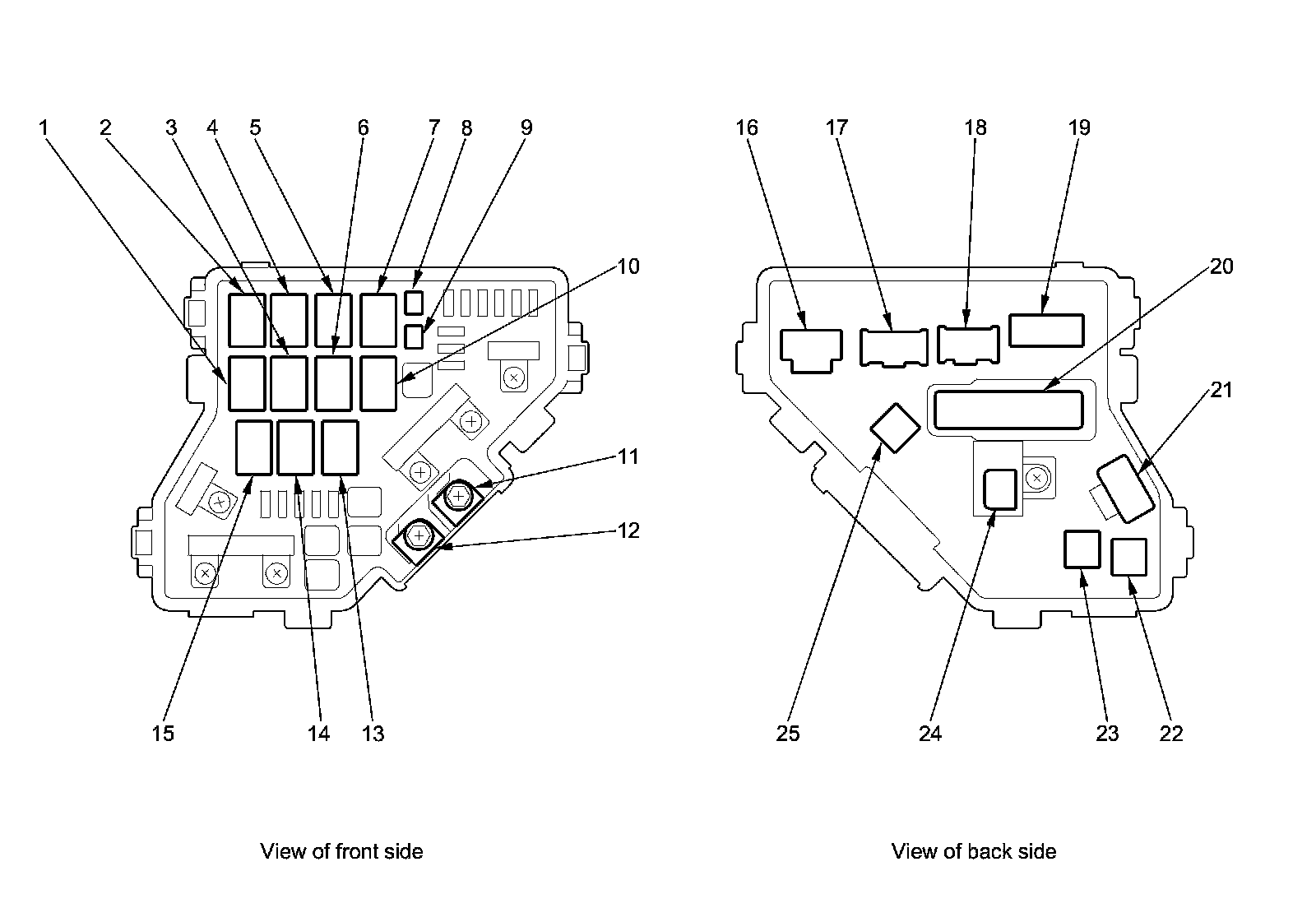

Under-hood Fuse/Relay Box










Auxiliary Under-hood Fuse/Relay Box

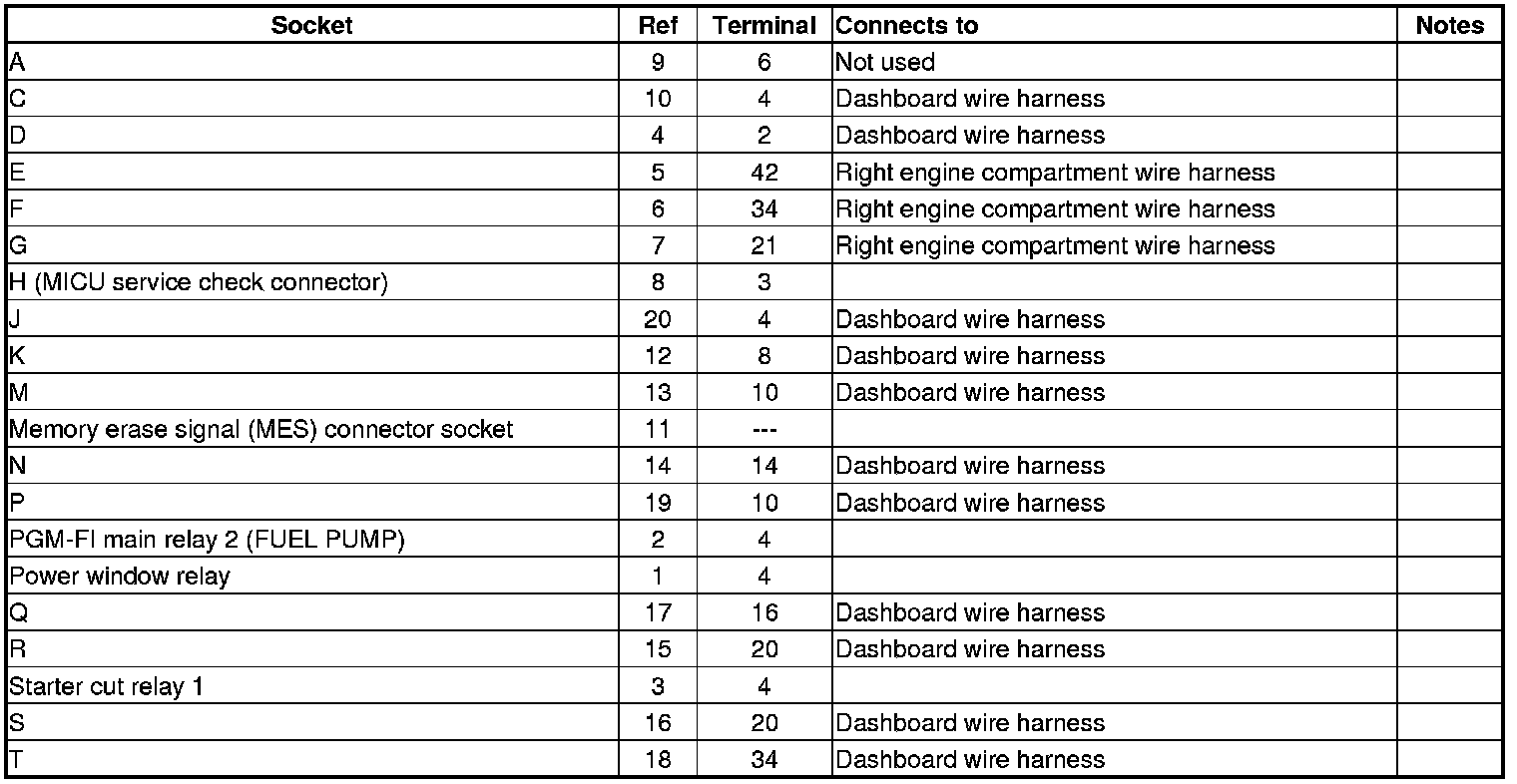

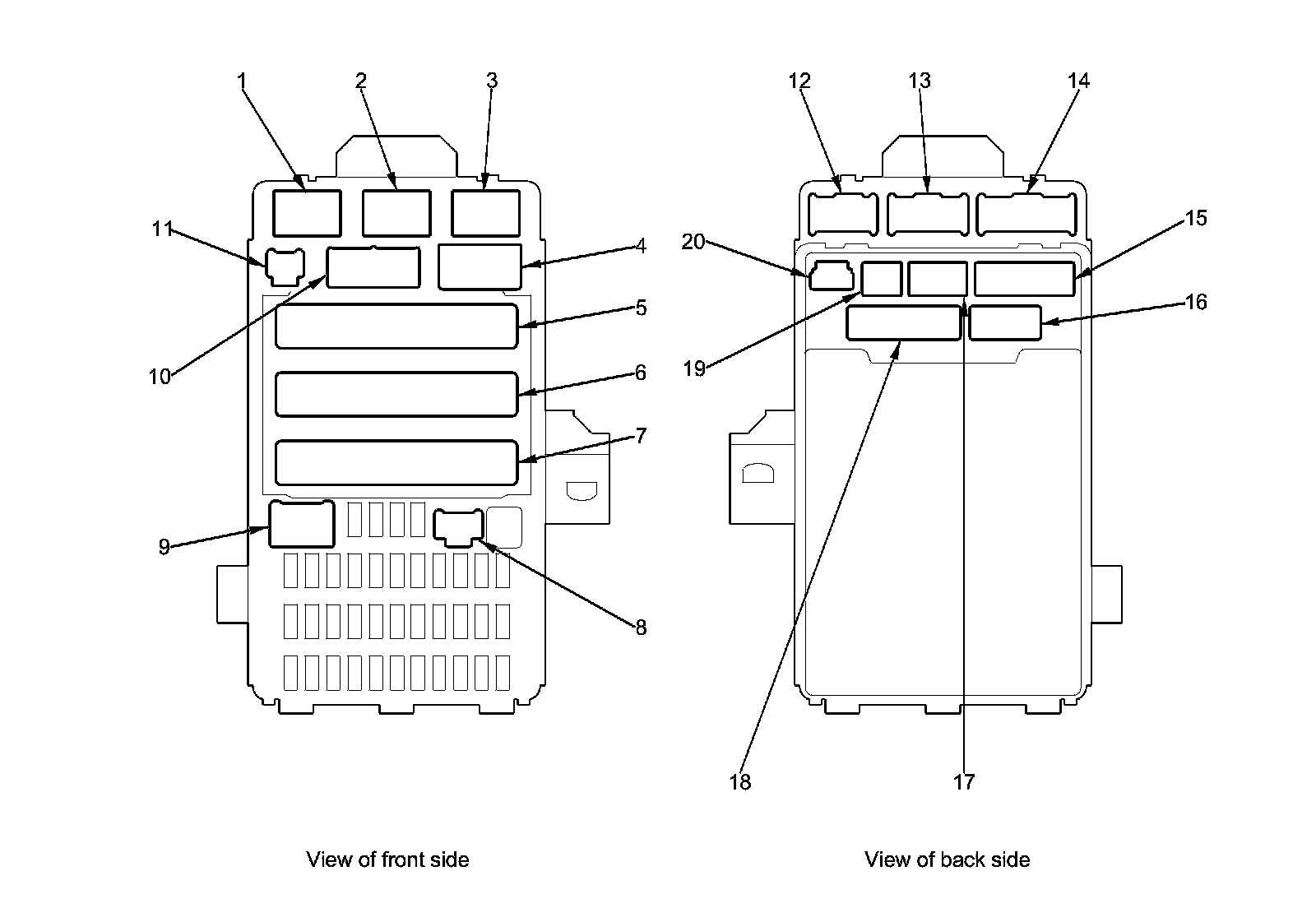

Under-dash Fuse/Relay Box

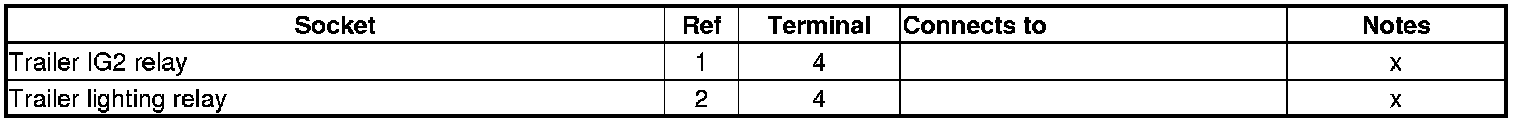

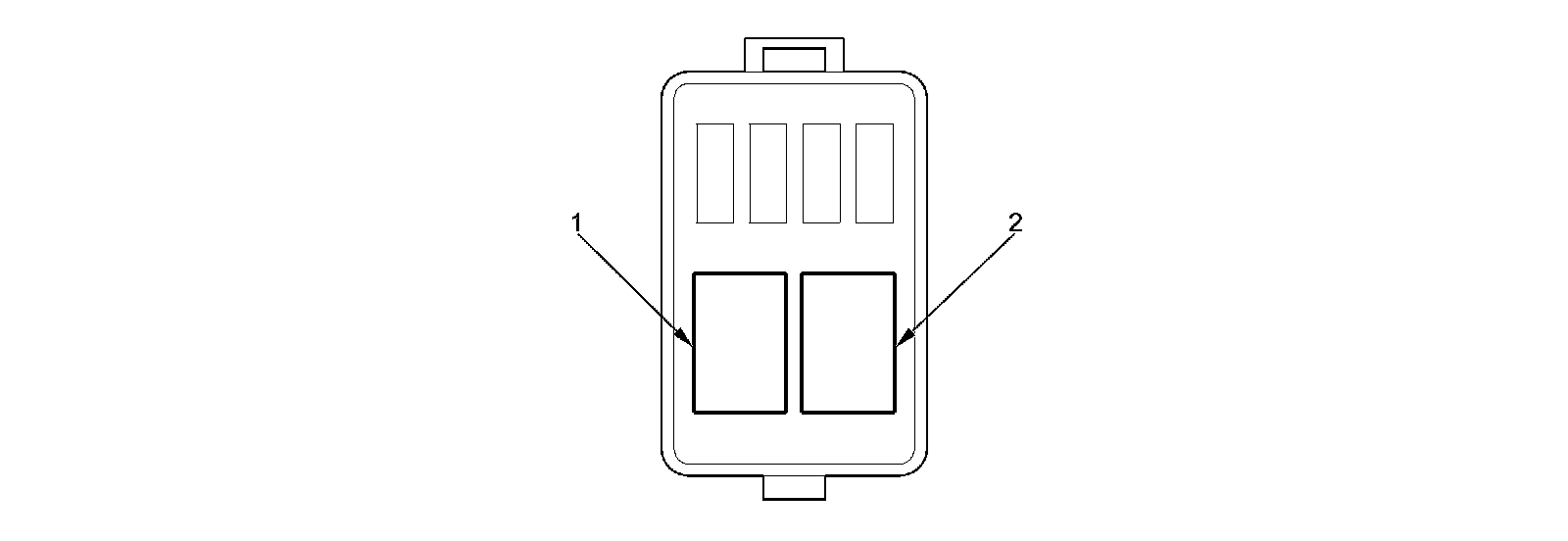

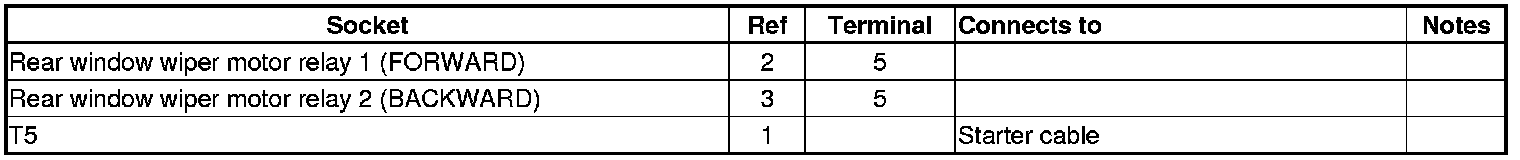

Rear Fuse/Relay Box
