Rear Stabilizer Link Removal/Installation

Rear Stabilizer Link Removal/Installation

1. Raise and support the vehicle Service and Repair.

2. Remove the rear wheel.

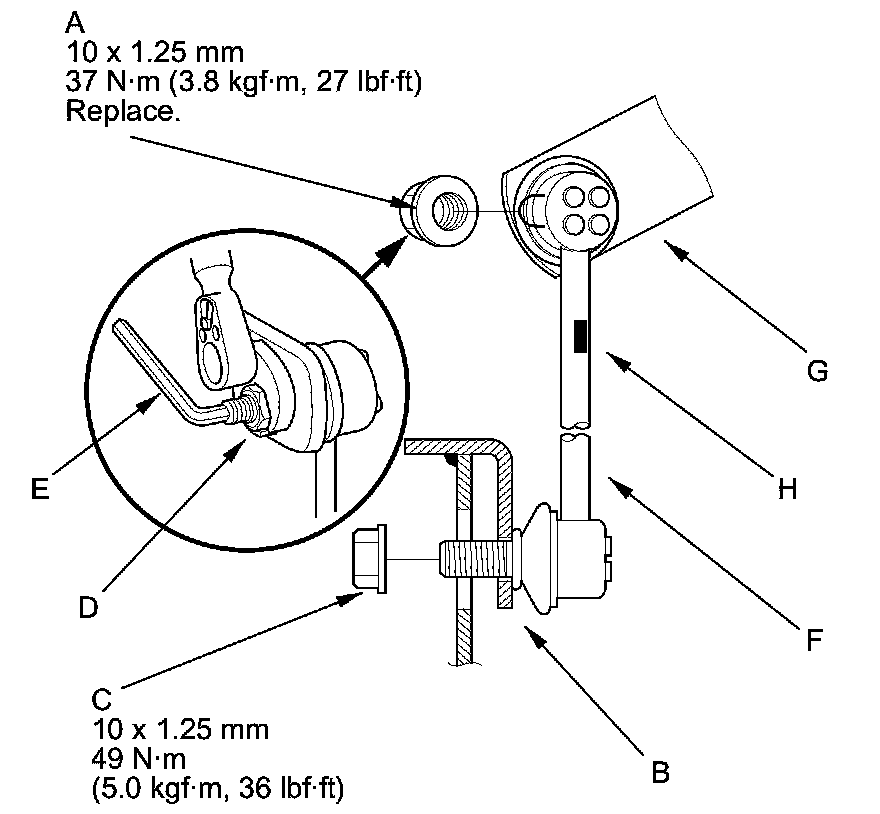

3. Remove the self-locking nut (A) and the flange nut (C) while holding the respective joint pin (D) with a hex wrench (E), then remove the stabilizer link (F).





4. Install the stabilizer link on the stabilizer bar (G) and lower arm B with the joint pins set at the center of their range of movement.

NOTE:

- The stabilizer link has a paint mark (H). The left stabilizer link is marked with yellow paint, and the right stabilizer link is marked with white paint.
- Install the end of the stabilizer link with the paint mark in the upper position.

5. Install a new self-locking nut and the new flange nut, and tighten them to the specified torque while holding the respective joint pin with a hex wrench.

6. Clean the mating surfaces of the brake disc/drum and the inside of the wheel, then install the rear wheel.

7. Test-drive the vehicle.

8. After 5 minutes of driving, tighten the self-locking nut again to the specified torque.
