A/T Housing Intermediary Shaft Bearing Replacement

A/T Housing Intermediary Shaft Bearing Replacement

Special Tools Required

- Bearing Driver Attachment, 37 x 40 mm 07746-0010200
- Driver Handle, 15 x 135L 07749-0010000
- Remover Handle 07936-3710100
- Slide Hammer 07936-371020A
- Bearing Remover Shaft Set, 20 mm 07936-3710600

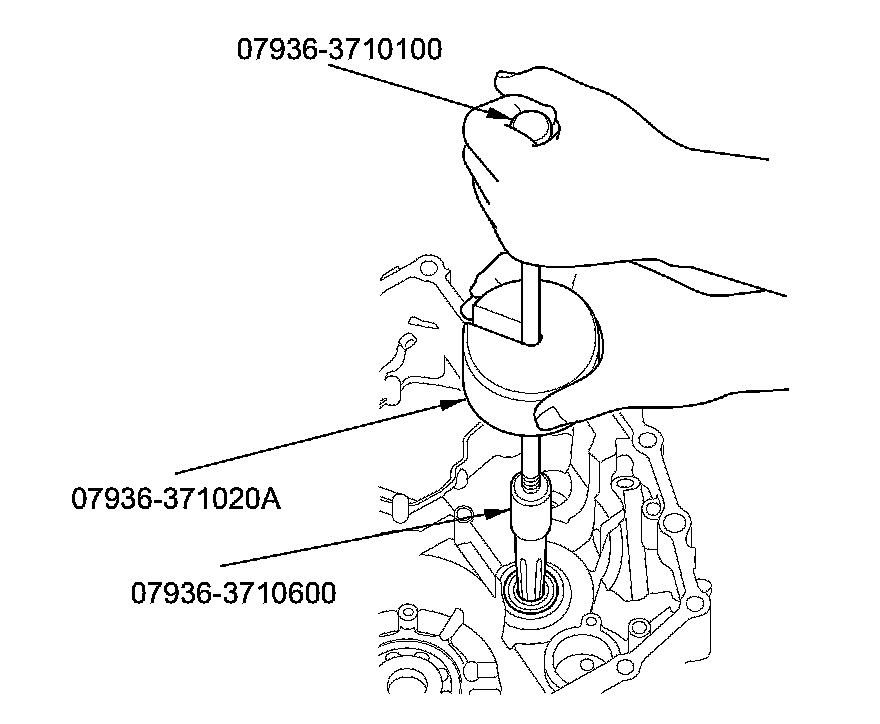

1. Remove the intermediary shaft bearing from the transmission housing using the 20 mm bearing remover shaft set, the remover handle, and the slide hammer.

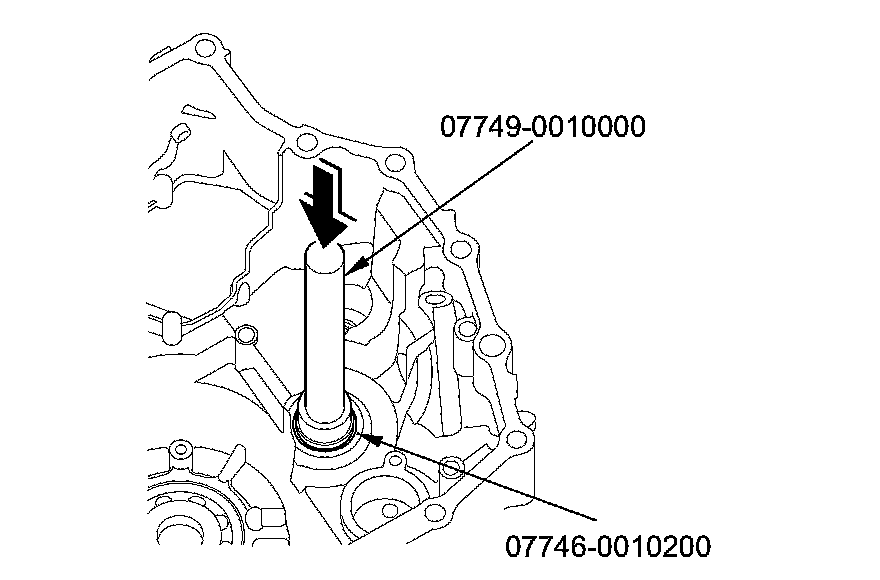

2. Install a new bearing until it bottoms in the transmission housing using the driver handle and the 37 x 40 mm attachment.
