SRS DTC Troubleshooting: 62-2x

DTC 62-2x ("x" can be 0 thru 9 or A thru F):

Short in the Front Passenger's Seat Belt Buckle Switch

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Clear the DTC memory.

2. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

3. Turn the ignition switch to ON (II), then buckle and unbuckle the front passenger' seat belt several times.

4. Read the DTC.

Is DTC 62-2x indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.�

5. Turn the ignition switch to LOCK (0).

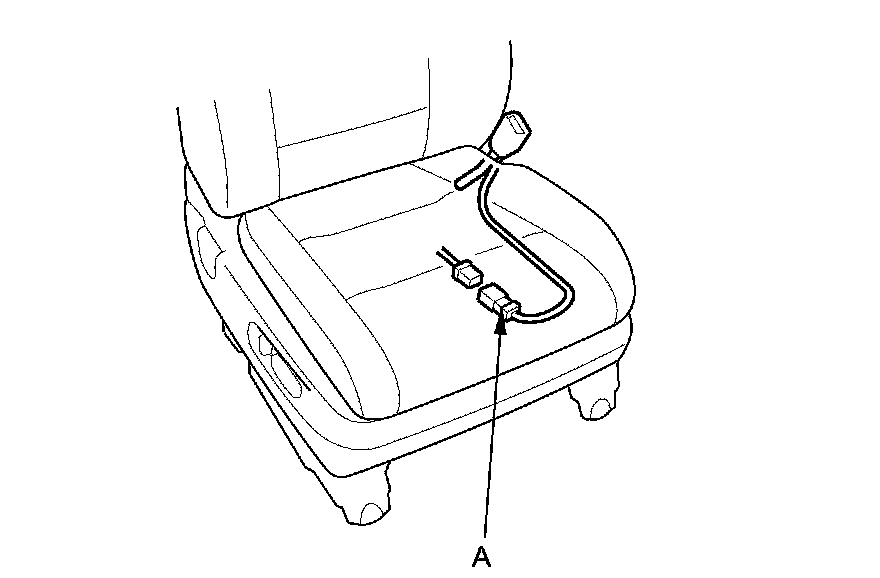

6. Disconnect the front passenger's seat wire harness 2P connector (A) from the front passenger's seat belt buckle switch Front Seat Belt Replacement.





7. Turn the ignition switch to ON (II).

8. Read the DTC.

Is DTC 62-2x indicated?

YES -

Short to ground in the floor wire harness or front passenger's seat wire harness; replace the faulty harness, then clear the DTC.�

NO -

Faulty front passenger's seat belt buckle switch; replace the front passenger's seat belt buckle assembly Front Seat Belt Replacement, then clear the DTC.�
