VSA DTC Troubleshooting: 68-21

DTC 68-21:

Brake Pedal Position Switch Stuck OFF

1. Start the engine.

2. Check the BRAKE PRESS in the VSA DATA LIST with the HDS. Do not press the brake pedal.

Is there 10 MPa or less?

YES -

Go to step 3.

NO -

Check for brake drag or a misadjusted brake pedal position switch. If they are normal, go to step 17.

3. Check the BRAKE SWITCH in the VSA DATA LIST with the HDS while moving the brake pedal.

Does it indicate ON when the pedal is pressed, and OFF when the pedal is released?

YES -

Intermittent failure, the system is OK at this time. Check for loose terminals between the brake pedal position switch 4P connector, PCM connector A (49P), and the VSA modulator-control unit 36P connector. Refer to intermittent failures troubleshooting.�

NO -

Go to step 4.

4. Turn the ignition switch to LOCK (0).

5. Disconnect the brake pedal position switch 4P connector.

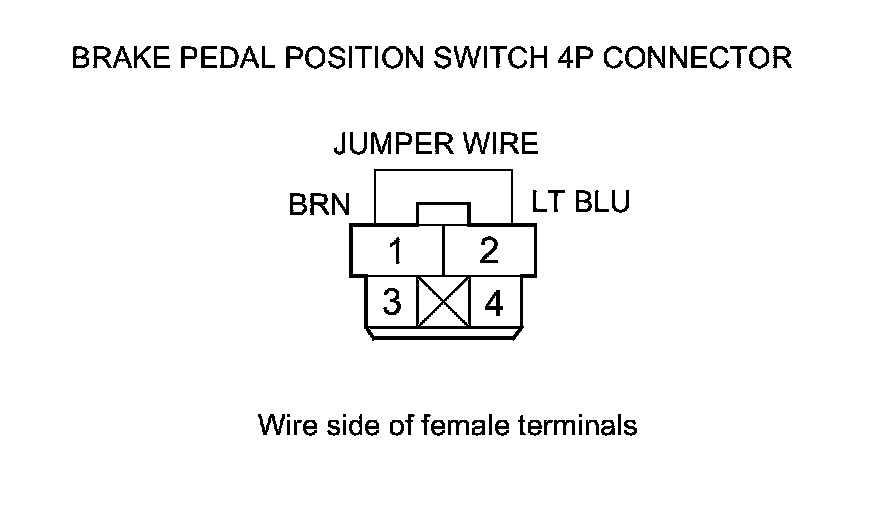

6. Connect the brake pedal position switch 4P connector terminals No. 1 and No. 2 with a jumper wire.





7. Turn the ignition switch to ON (II).

8. Check the BRAKE SWITCH in the VSA DATA LIST with the HDS.

Does it indicate ON?

YES -

Check the brake pedal position switch adjustment Adjustments. If it is OK, replace the brake pedal position switch.�

NO -

Go to step 9.

9. Disconnect the jumper wire.

10. Turn the ignition switch to LOCK (0).

11. Remove and check the No. 11 (20 A) fuse in the auxiliary under-hood fuse/ relay box.

Is the fuse blown?

YES -

Go to step 12.

NO -

Reinstall the checked fuse, then go to step 13.

12. Check for continuity between brake pedal position switch 4P connector terminal No. 1 and body ground.





Is there continuity?

YES -

Repair short to body ground in the wire between the No. 11 (20 A) fuse in the auxiliary under-hood fuse/relay box and the brake pedal position switch.�

NO -

Repair short to body ground in the wire between brake pedal position switch 4P connector terminal No.2 and PCM connector A (49P) terminal No.8, or troubleshoot for a short to body ground in the brake light circuit.�

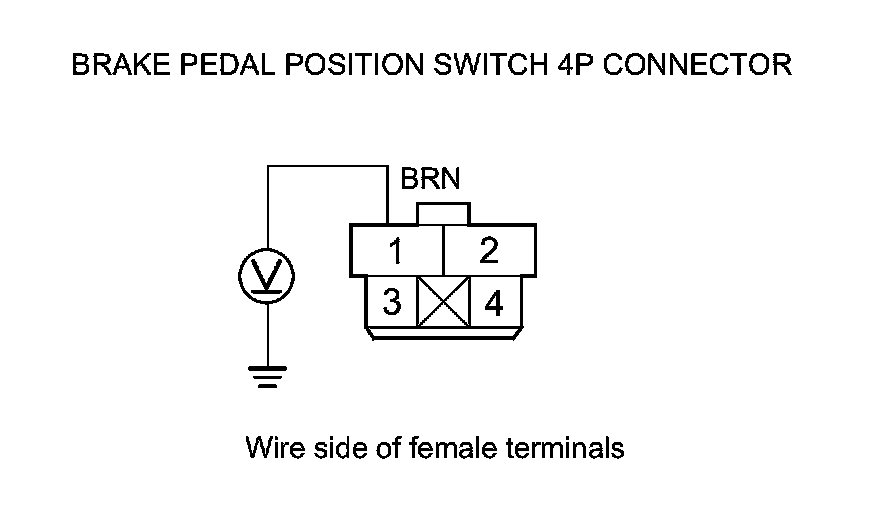

13. Measure the voltage between brake pedal position switch 4P connector terminal No. 1 and body ground.





Is there battery voltage?

YES -

Go to step 14.

NO -

Repair open in the wire between the No. 11 (20 A) fuse in the auxiliary under-hoodfuse/ relay box and the brake pedal position switch.�

14. Short the SCS line with the HDS.

15. Disconnect PCM connector A (49P).

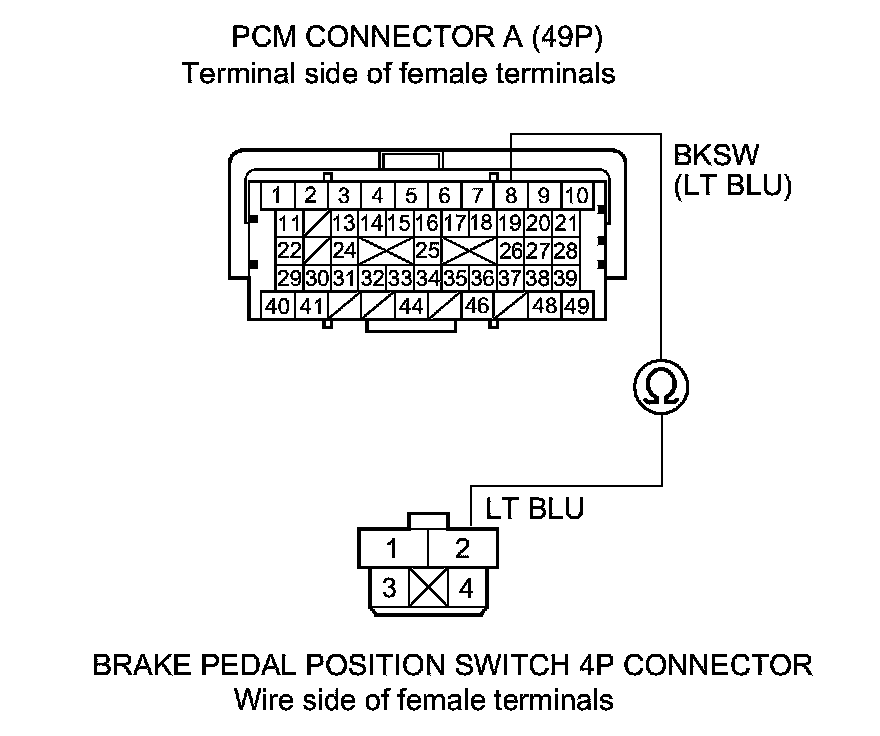

16. Check for continuity between brake pedal position switch 4P connector terminal No. 2 and PCM connector A (49P) terminal No. 8.





Is there continuity?

YES -

Update the PCM if it does not have the latest software PCM Update, or substitute a known-good PCM, then go to step 1, and recheck. If the PCM was updated and DTCs are not indicated, troubleshooting is complete. If the PCM was substituted and DTCs are not indicated, replace the original PCM Service and Repair.

NO -

Repair open in the wire between the PCM and the brake pedal position switch.�

17. Update the VSA modulator-control unit if it does not have the latest software Testing and Inspection. If the unit already has the latest software, substitute a known-good VSA modulator-control unit Service and Repair.

18. Test-drive the vehicle. Drive the vehicle at 7 mph(10 km/h) or more.

NOTE: Drive the vehicle on the road, not on a lift.

19. Check for DTCs with the HDS.

Is DTC 68-21 indicated?

YES -

Check for loose terminals in the VSA modulator-control unit 36P connector. If the VSA modulator-control unit was updated, substitute a known-good VSA modulator-control unit Service and Repair, then retest. If the VSA modulator-control unit was substituted, go to step 1.

NO -

If the VSA modulator-control unit was updated, troubleshooting is complete. If the VSA modulator-control unit was substituted, replace the original VSA modulator-control unit Service and Repair. If any other DTCs are indicated, go to the indicated DTCs troubleshooting.�
