Advanced Diagnostics

DTC P0453 (91) Advanced Diagnostics

DTC P0453:

Fuel Tank Pressure (FTP) Sensor Circuit High Voltage














General Description

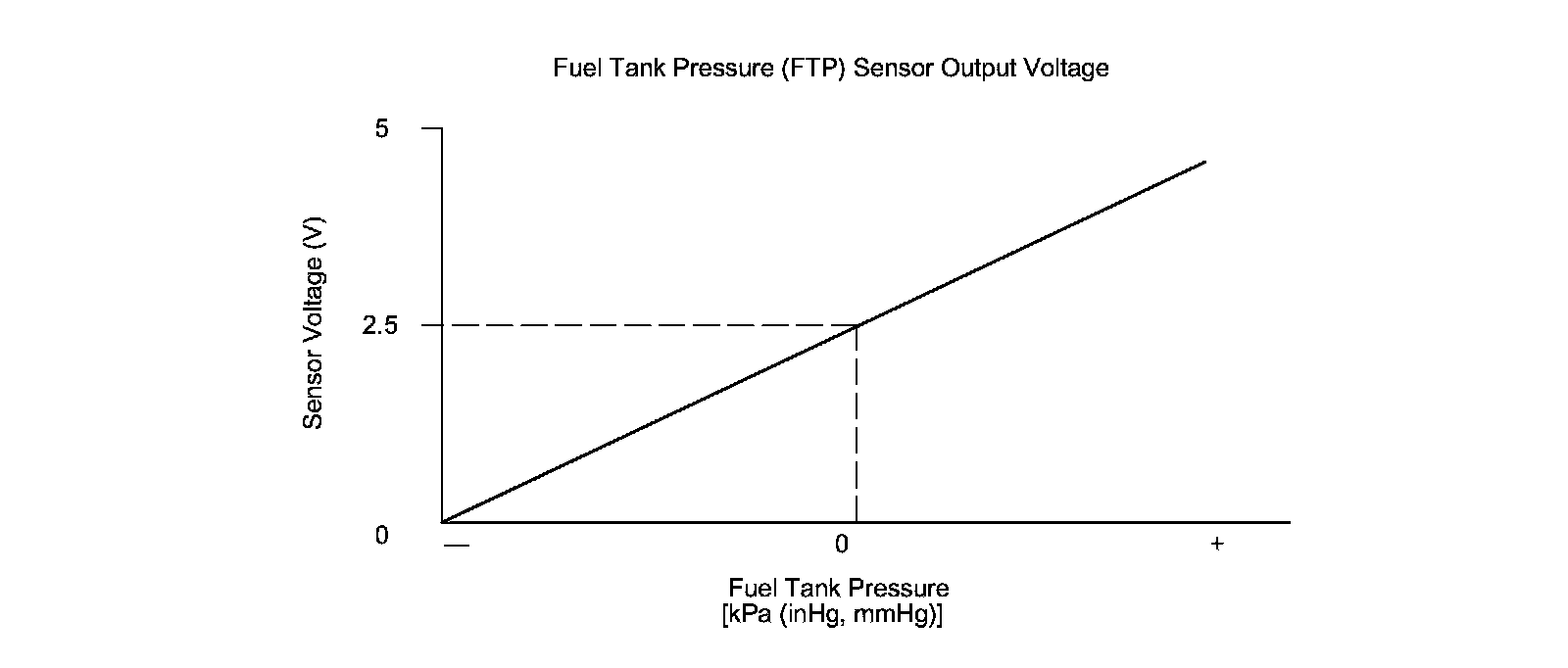

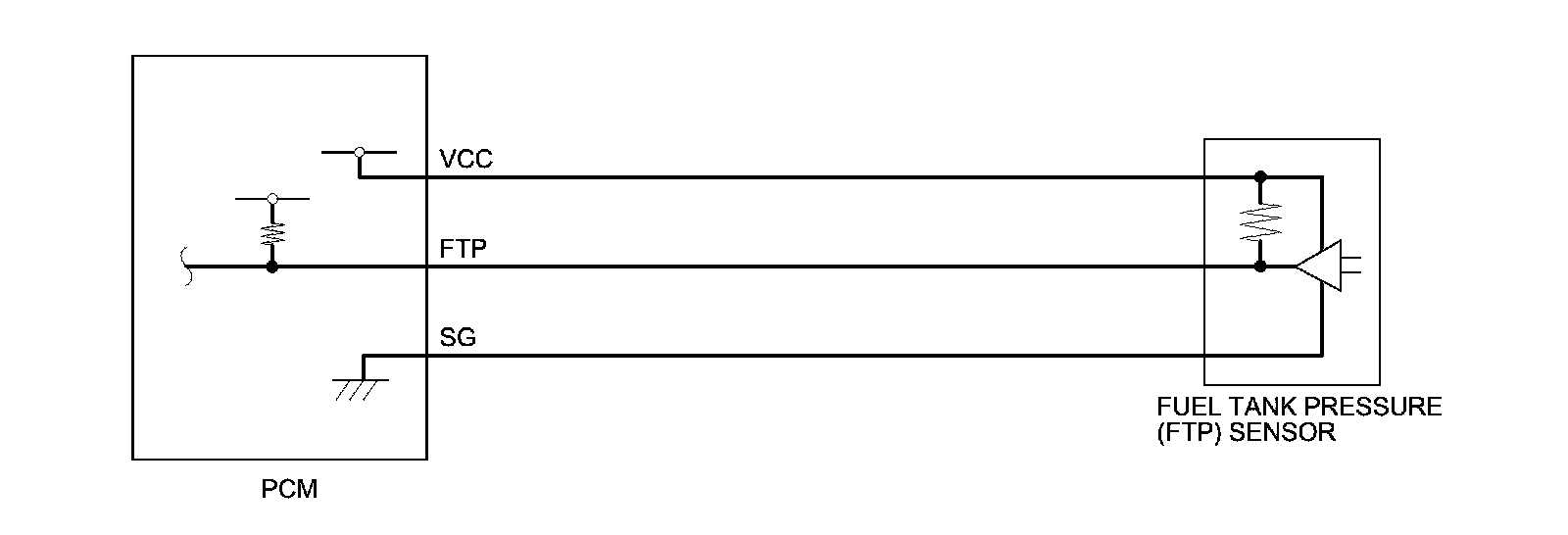

The fuel tank pressure (FTP) sensor is installed on the evaporative emission (EVAP) canister and detects the fuel tank pressure. The FTP sensor is used to detect leaks in the EVAP system. The powertrain control module (PCM) monitors the FTP sensor output voltage. The FTP sensor output voltage rises as the fuel tank pressure increases. Conversely, the FTP sensor output voltage drops as the fuel tank pressure decreases. If the FTP sensor output voltage is higher than a target value for a set time after starting the engine in a cold condition, the PCM detects a malfunction and stores a DTC.

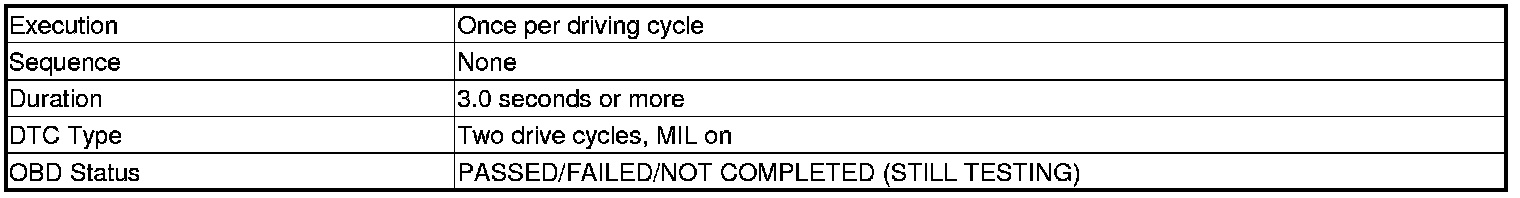

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

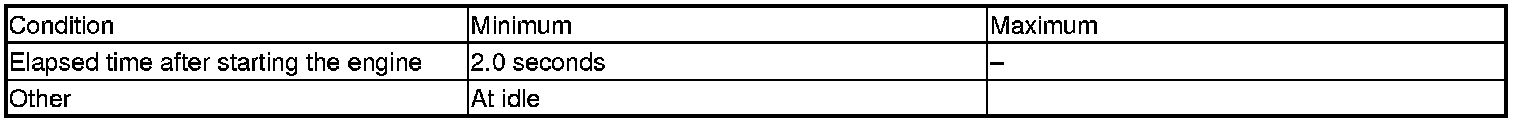

Enable Conditions

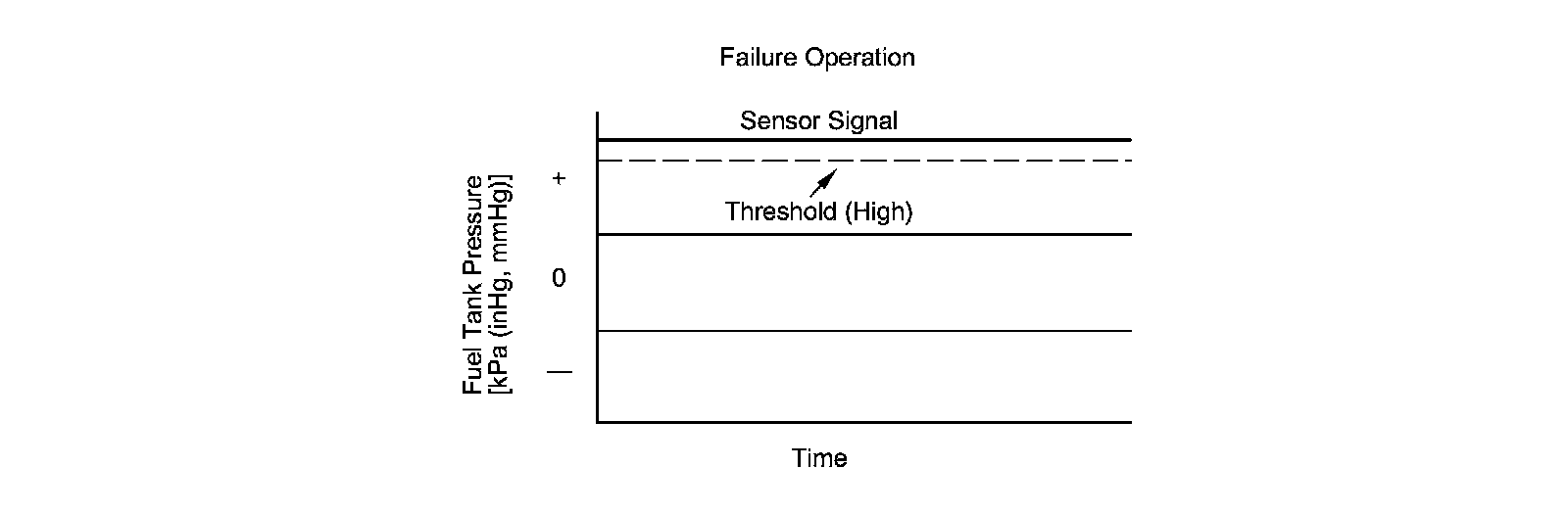

Malfunction Threshold

The output from the FTP sensor is more than 7 kPa (2.1 inHg, 55 mmHg) for at least 3.0 seconds.

Driving Pattern

Start the engine in a cold condition, and let it idle until the radiator fan comes on.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
