DTC P2197 (156) Advanced Diagnostics

DTC P2197:

Front Air/Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) Signal Stuck Lean





General Description

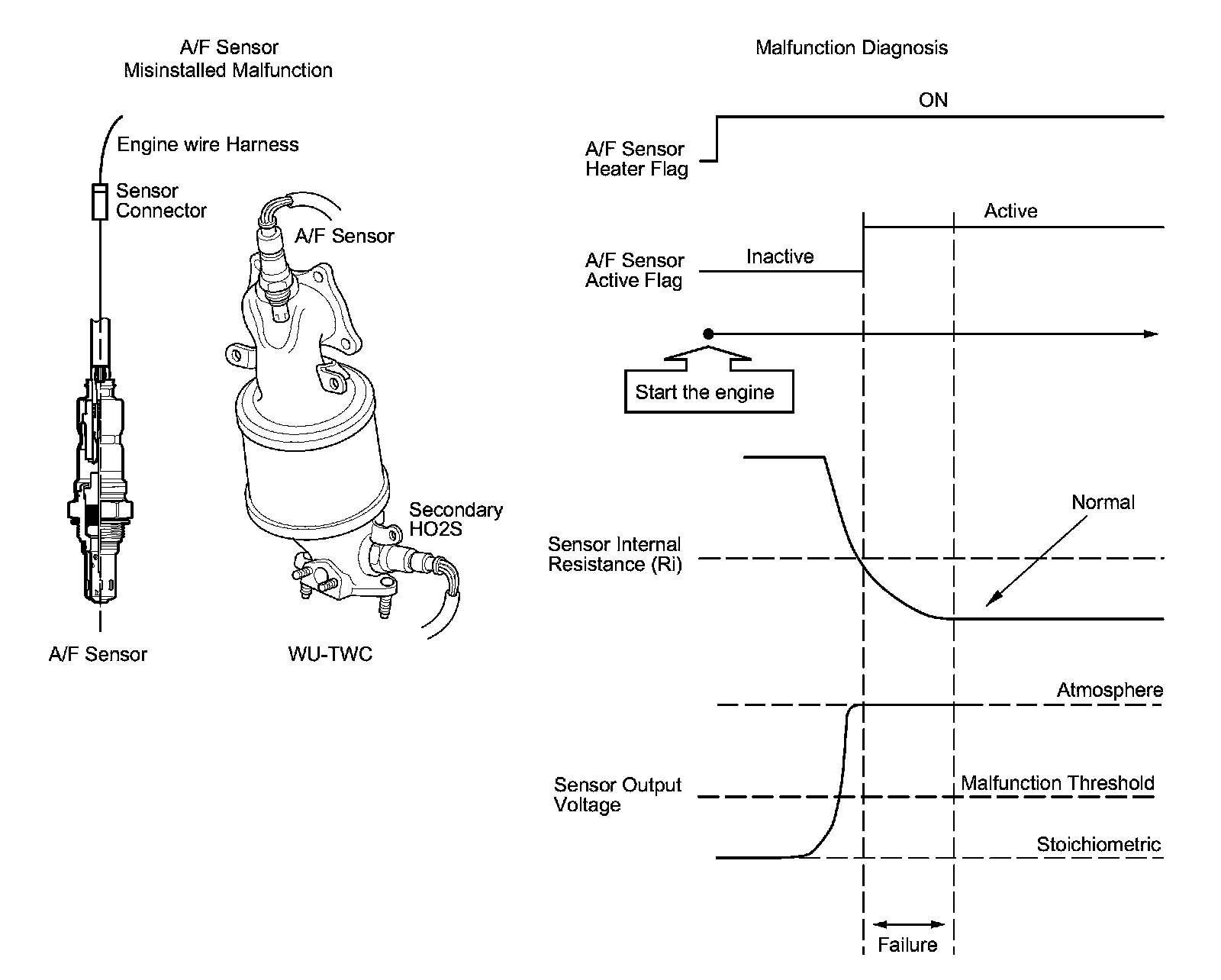

When the front air/fuel ratio (A/F) sensor (bank 2, sensor 1) is properly connected to the engine wire harness, but it is not installed in the exhaust pipe, the feedback is not done properly even if the front A/F sensor (bank 2, sensor 1) is active after starting the engine. Thus, the exhaust emissions increase. When the front A/F sensor (bank 2, sensor 1) output stays out of the normal range after the front A/F sensor (bank 2, sensor 1) becomes active, the powertrain control module (PCM) detects that the front A/F sensor (bank 2, sensor 1) is not properly installed and stores a DTC.

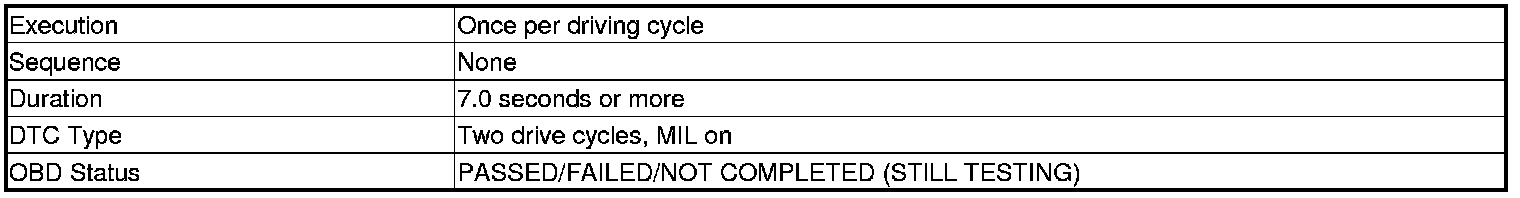

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

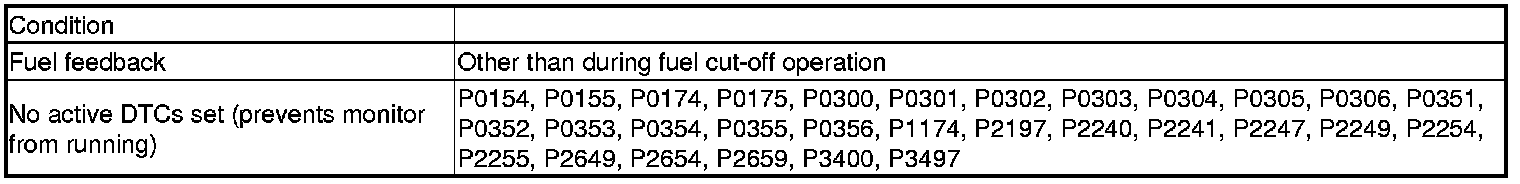

Enable Conditions





Malfunction Threshold

The front A/F sensor (bank 2, sensor 1) output voltage is 3.48 V or more for at least 7.0 seconds.

Driving Pattern

Start the engine, and let it idle for at least 2 minutes.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
