Advanced Diagnostics

DTC U0100 Advanced Diagnostics

DTC U0100:

F-CAN Malfunction (Engine Mount Control Unit-Powertrain Control Module (PCM))





General Description

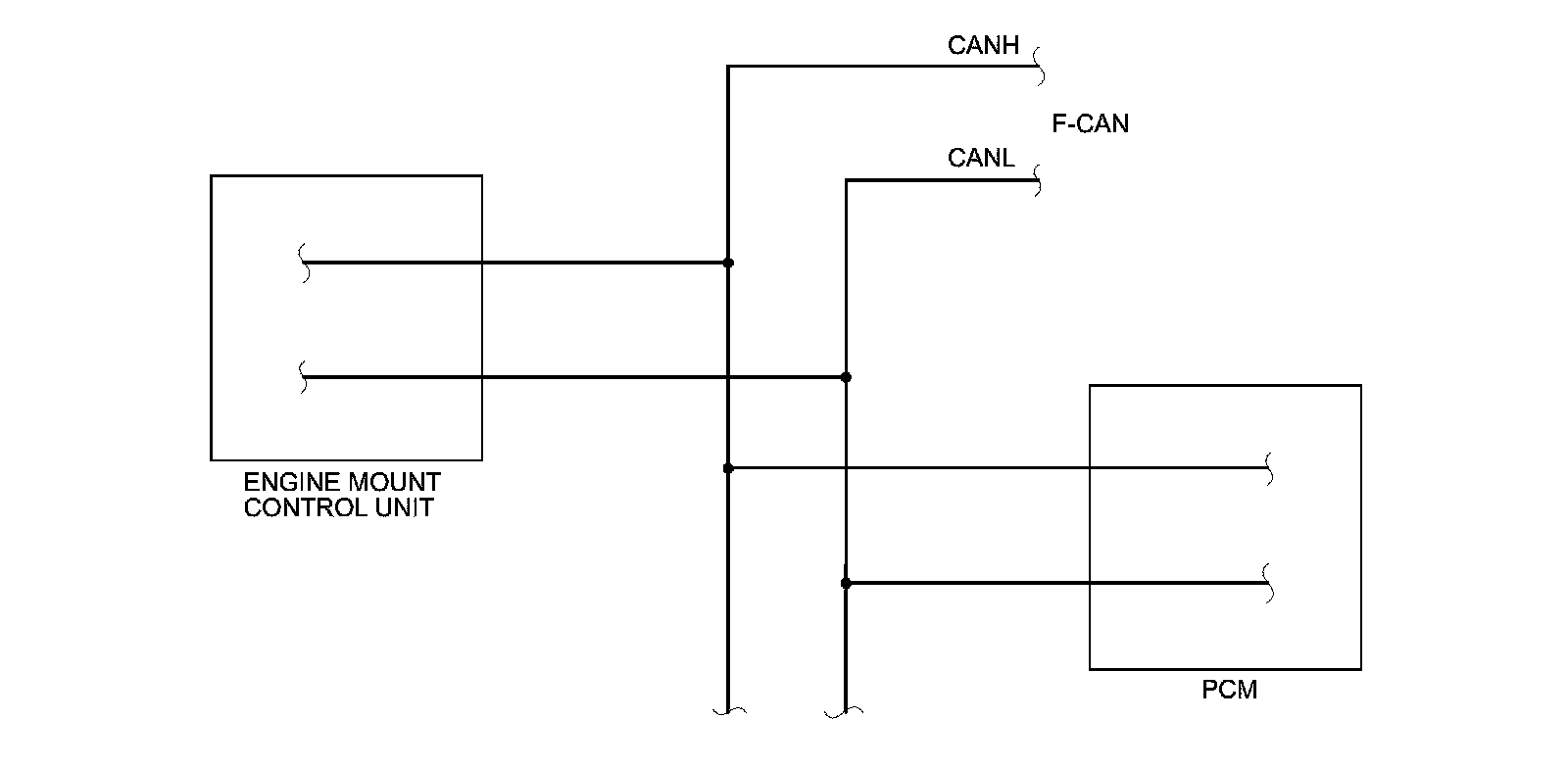

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (CANH and CANL). When the information is not sent from the powertrain control module (PCM) via the F-CAN lines and this condition continues for a specified time or when the information sent from the PCM is abnormal and this condition continues for a specified cycle, the engine mount control unit detects a malfunction and stores a DTC.

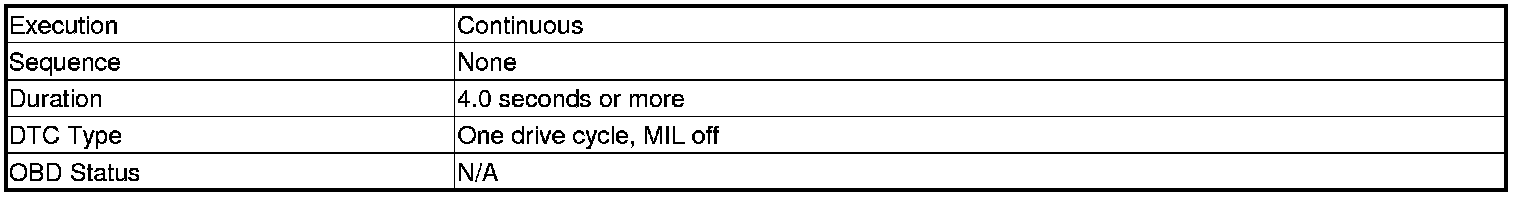

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

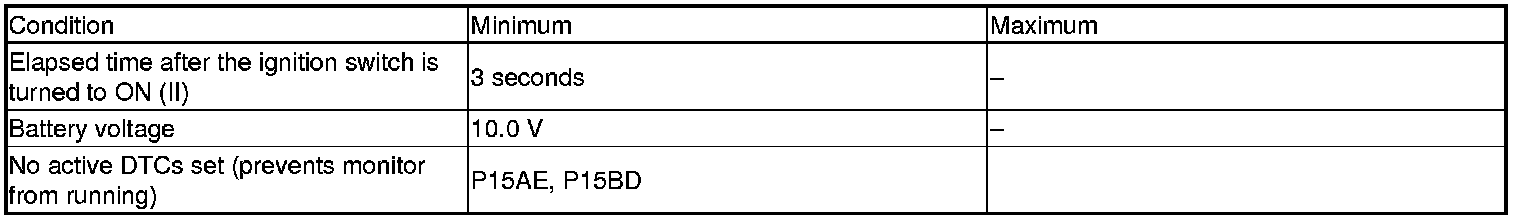

Enable Conditions





Malfunction Threshold

One of these conditions must be met:

- The engine mount control unit does not receive any signals via the F-CAN lines for at least 4.0 seconds.
- The information sent from the PCM is abnormal at least 20 times.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
