Advanced Diagnostics

DTC U1101 Advanced Diagnostics

DTC U1101:

F-CAN Malfunction (Powertrain Control Module (PCM) - Active Control Engine Mount (ACM))





General Description

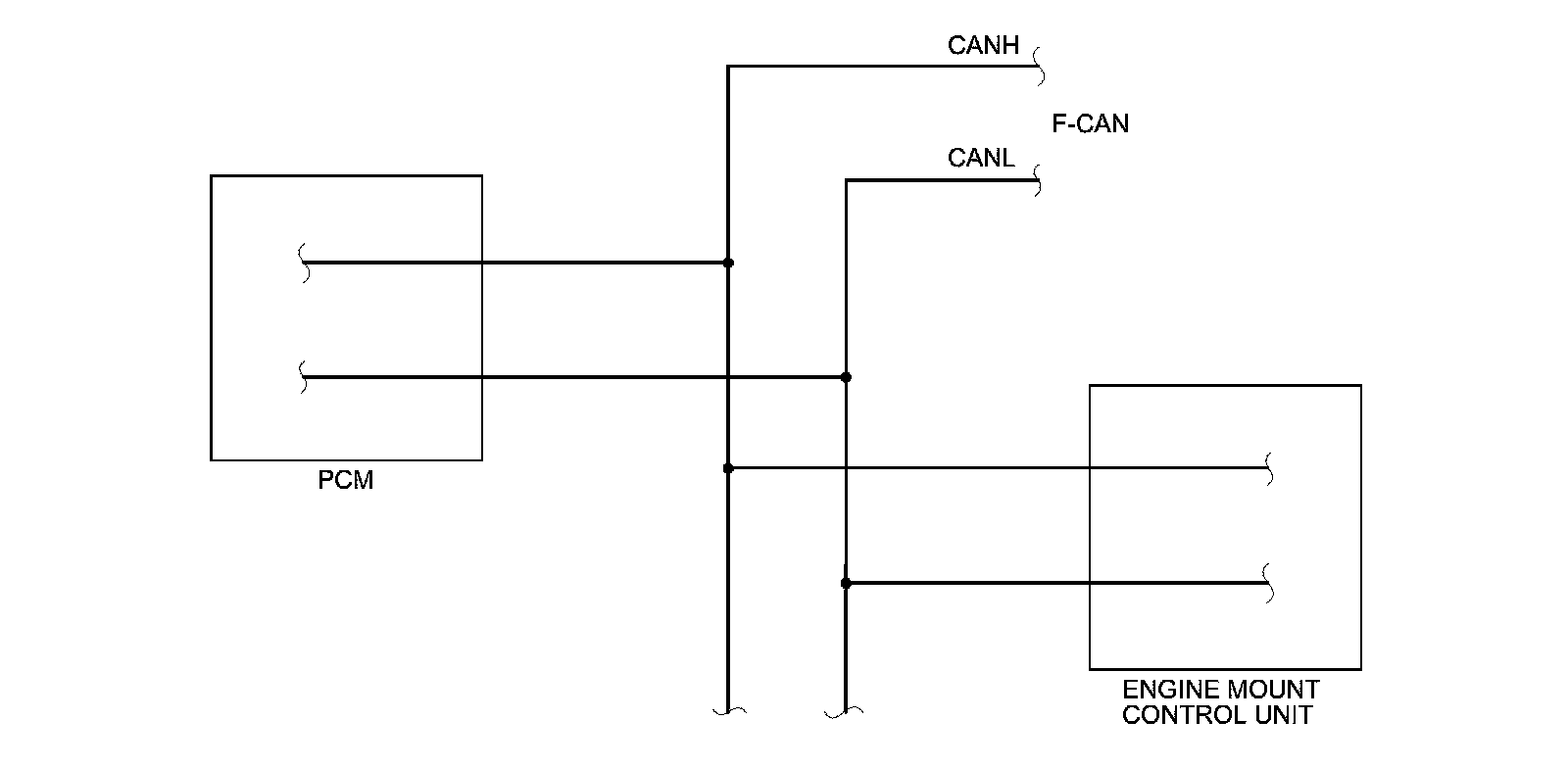

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (CANH and CANL). When the powertrain control module (PCM) does not receive the signals from the engine mount control unit via the F-CAN lines for a set time, the PCM detects a malfunction and stores a DTC.

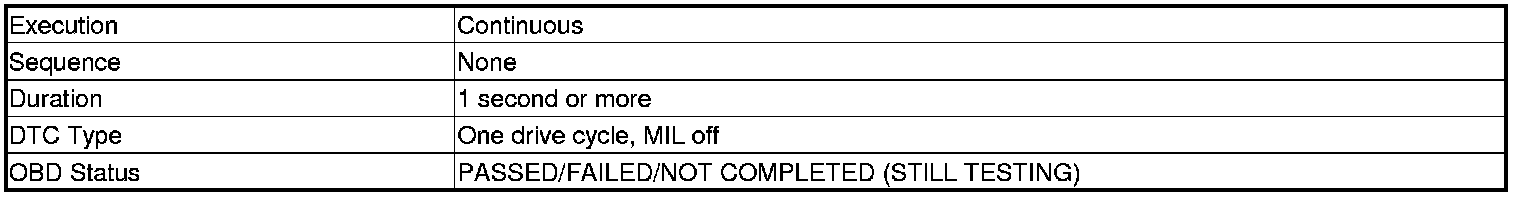

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

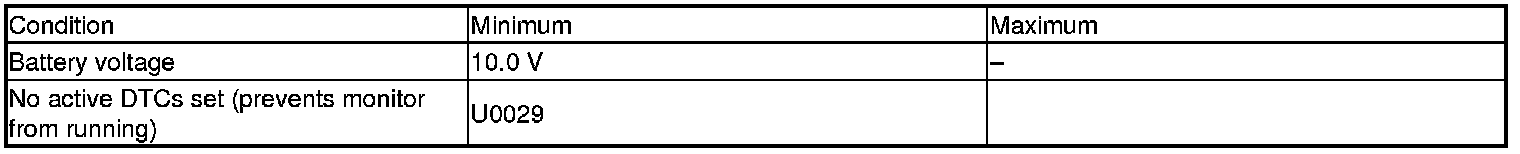

Enable Conditions





Malfunction Threshold

The PCM does not receive any signals via the F-CAN lines for at least 1 second.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
