DTC Troubleshooting: U1280, U1280, U1280, U1280, U1280, U1280, U1280, U1280

DTC U1280:

Communication Bus Line Error (BUS-OFF)

NOTE: If you are troubleshooting multiple DTCs, be sure to follow instructions in B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0) and then back to ON (II).

3. Wait for at least 6 seconds.

4. Check for DTCs with the HDS.

Is DTC U1280 indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Check for loose or poor connections, or worn/ shorted wires. If the connections are good, check the battery condition Testing and Inspection and the charging system.�

5. Turn the ignition switch to LOCK (0).

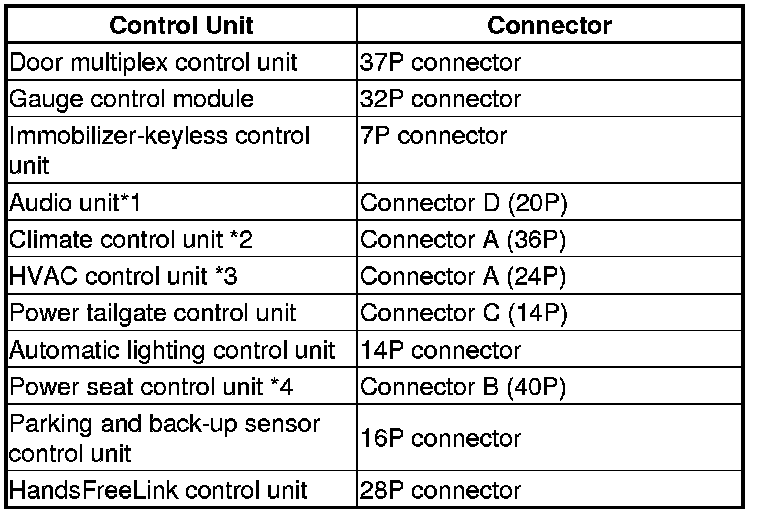

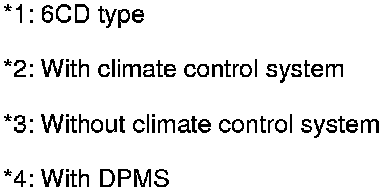

6. Disconnect the appropriate connector at each control unit in the table one at a time. Clear the DTC, then recheck for DTCs after each unit is disconnected.









Is DTC U1280 indicated with each individual unit disconnected?

YES -

Leave the connectors disconnected, and go to step 7.

NO -

Go to the input test for the control unit that was disconnected when DTC U1280 did not reset and perform all power and ground input tests. If the tests prove OK, replace that unit.�

- Power window master switch input test Power Window Master Switch (Door Multiplex Control Unit) Input Test
- Gauge control unit input test Gauge Control Module Input Test
- Immobilizer-keyless control unit input test Immobilizer-Keyless Control Unit Input Test
- Audio unit
- Climate control unit input test Climate Control Unit Power, Ground, And Communication Circuit Troubleshooting
- HVAC control unit input test HVAC Control Power, Ground, And Communication Circuit Troubleshooting
- Power tailgate control unit input test Service and Repair
- Automatic lighting control unit input test Service and Repair
- Power seat control unit input test Power Seat Control Unit Input Test/Replacement
- Parking and back-up sensor control unit input test Service and Repair

7. Turn the ignition switch to LOCK (0).

8. Disconnect each control unit connector in the table.










9. Disconnect under-dash fuse/relay box connector T (34P).

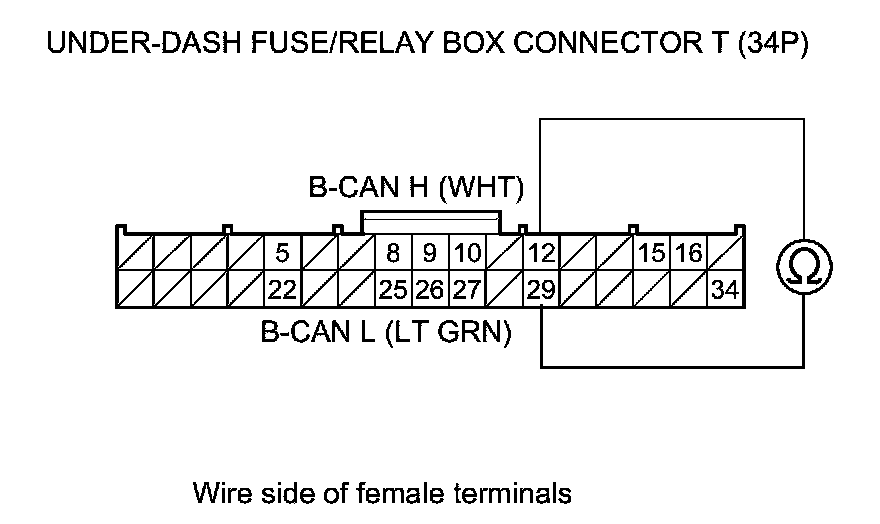

10. Check for continuity between under-dash fuse/relay box connector T (34P) terminals No. 12 and No. 29.





Is there continuity?

YES -

Repair a short in the B-CAN wires.�

NO -

Go to step 11.

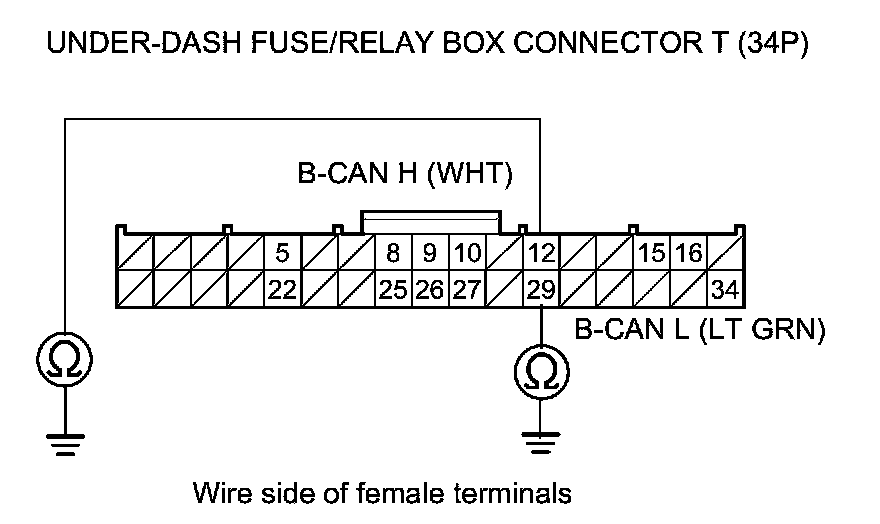

11. Check for continuity between body ground and under-dash fuse/relay box connector T (34P) terminals No. 12 and No. 29 individually.





Is there continuity?

YES -

Repair a short to ground in the B-CAN wire(s).�

NO -

Faulty MICU, replace the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal And Installation.�
