Accessory Control Display: Service and Repair

Interface Dial Removal/Installation

1. Remove the navigation switch panel and the center pocket Service and Repair.

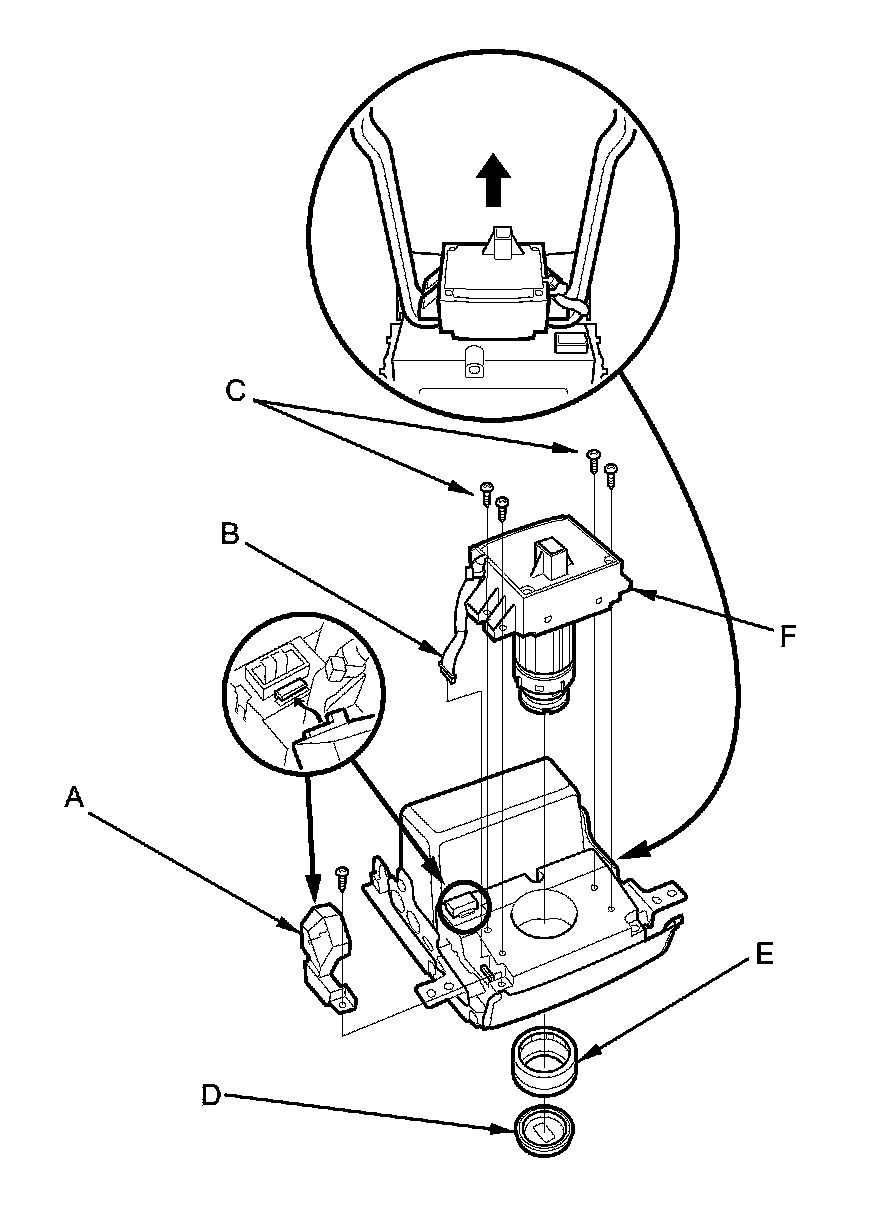

2. Remove the screw and harness cover (A). Then disconnect the interface dial 13P connector (B).





3. Remove the 4 screws (C), then remove the knob (D) and the dial (E) from the interface dial (F) with two KTC trim tools and applying even force as shown.

NOTE: Apply pressure slowly and steady until the knob and dial pops off.

4. Install the dial in reverse order of removal.

NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.
