Immobilizer Indicator Blinks

Immobilizer System Symptom Troubleshooting - Immobilizer indicator blinks

Immobilizer indicator blinks

NOTE: Before troubleshooting, check the items listed in General Check before Troubleshooting.

1. Turn the ignition switch to LOCK (0).

2. Connect the HDS, then turn the ignition switch to ON (II).

3. From the main menu, enter the IMMOBI, select IMMOBILIZER SETUP, then select System Check, Number of Keys, and Status Log.

4. Select the SYSTEM CHECK.

Is the SYSTEM CHECK indicated?

YES -

Troubleshoot the immobilizer system according to the result of the SYSTEM CHECK Immobilizer System Check.�

NO -

Go to step 5.

5. Turn the ignition switch to LOCK (0).

6. Enter the vehicle, and remove the ignition key from the ignition switch, then close all doors.

7. Operate the keyless transmitter LOCK and UNLOCK several times in the vehicle.

Do the door lock actuators work normally?

YES -

Go to step 8.

NO -

Check for a poor ground through PCM to G101 and/or an open in the wire between the immobilizer-keyless control unit 7P connector terminal No. 7 and PCM connector A (49P) terminal No. 41.�

8. Turn the ignition switch to ON (II).

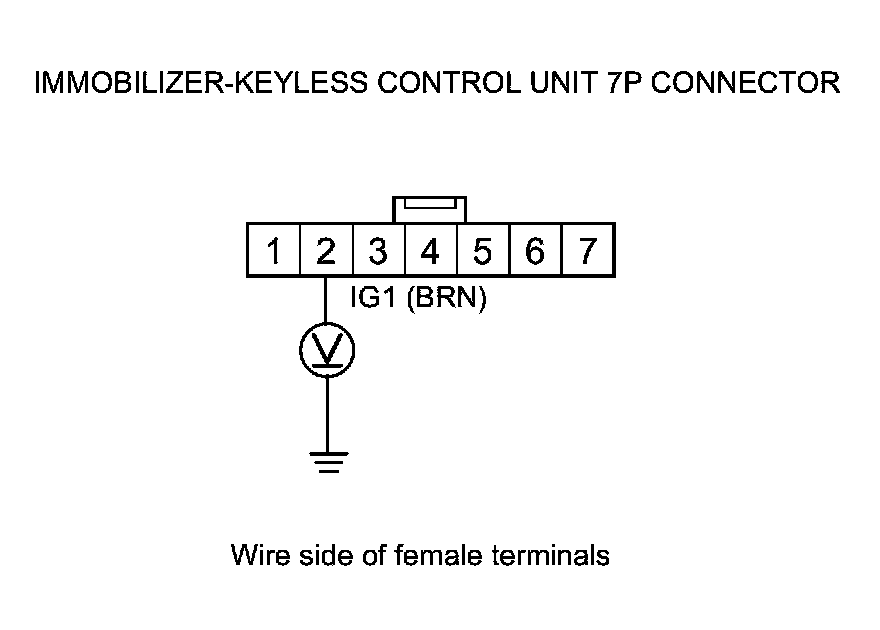

9. Measure the voltage between immobilizer-keyless control unit 7P connector terminal No. 2 and body ground.





Is there battery voltage?

YES -

Go to step 10.

NO -

Check for a blown No. 2 (15 A) fuse in the under-dash fuse/relay box. If the fuse OK, repair an open or high resistance in the BRN wire between the under-dash fuse-relay box and the immobilizer-keyless control unit.�

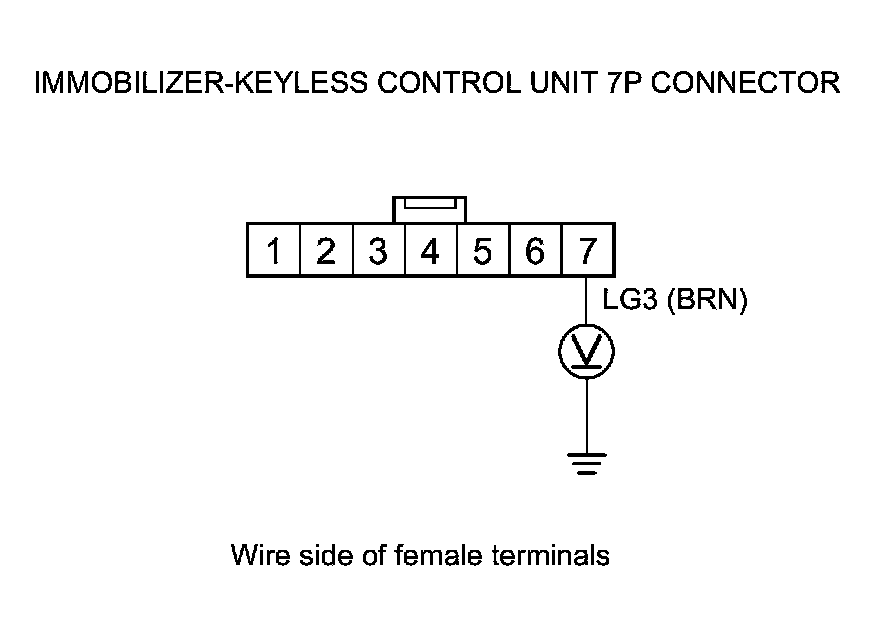

10. Measure the voltage between immobilizer-keyless control unit 7P connector terminal No. 7 and body ground.





Is there less than 0.2 V?

YES -

Replace the immobilizer-keyless control unit Service and Repair.�

NO -

Repair poor connection or an open or high resistance in the wire between immobilizer-keyless control unit 7P connector terminal No. 7 and PCM connector A (49P) terminal No. 41 and/or poor ground to G101.�
