Navigation System: Service and Repair

DVD-ROM Replacement

1. Turn the ignition switch to ON (II).

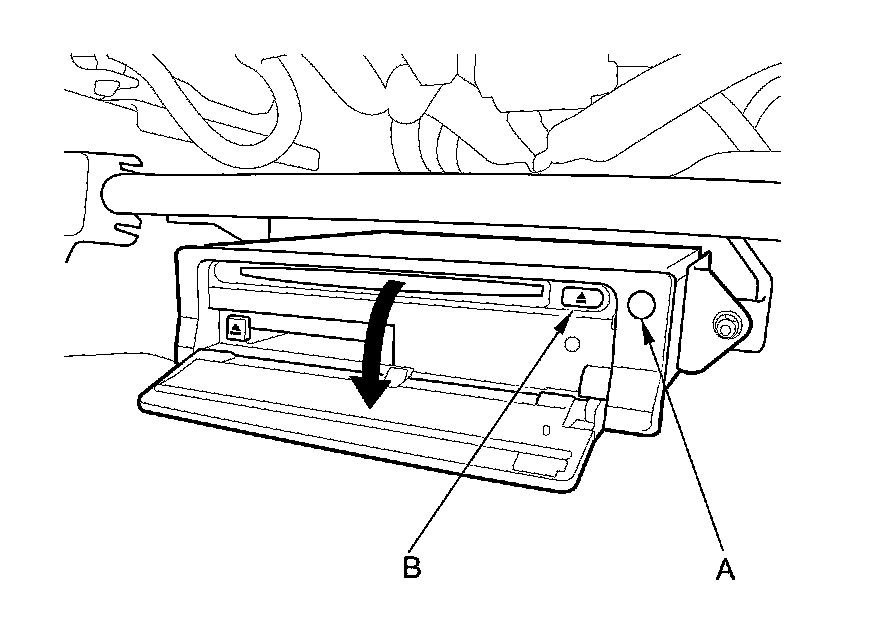

2. Push the open button (A) of the navigation unit located under the driver's seat.





3. Press the EJECT button (B) and remove the DVD-ROM.

4. Insert the new DVD-ROM with the white label facing up.

5. Close the front cover. Do not turn the ignition switch to LOCK (0); watch the navigation screen until the data is downloaded to the navigation unit.

6. Do the Map Matching.

7. Check any official Honda service website for more service information about the navigation system.

NOTE: After servicing, the front cover and PC card slot door must be closed. If you start up the navigation system with the front cover or PC card slot door open, the display will indicate an error message.
