Component Tests and General Diagnostics

Forced Starting of the Navigation Unit

Special tools required

- SCS Service Connector 07PAZ-0010100

1. Turn the ignition switch to LOCK (0).

2. Raise the driver's seat all the way up, then move it all the way forward.

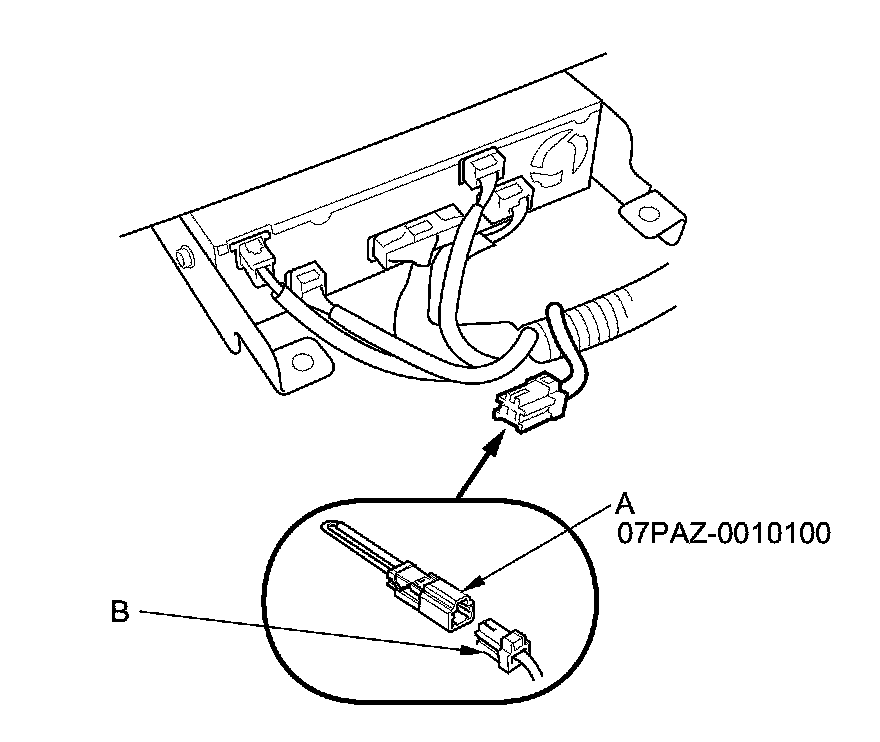

3. Connect the SCS service connector (A) to the navigation service connector (B) located behind the navigation unit.





4. Turn the ignition switch to ON (II).

5. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the System Link menu.

NOTE: If the display fails to display the System Link screen, go to no picture is displayed Symptom Troubleshooting.
