Part Two
Audio System Description
Continued...

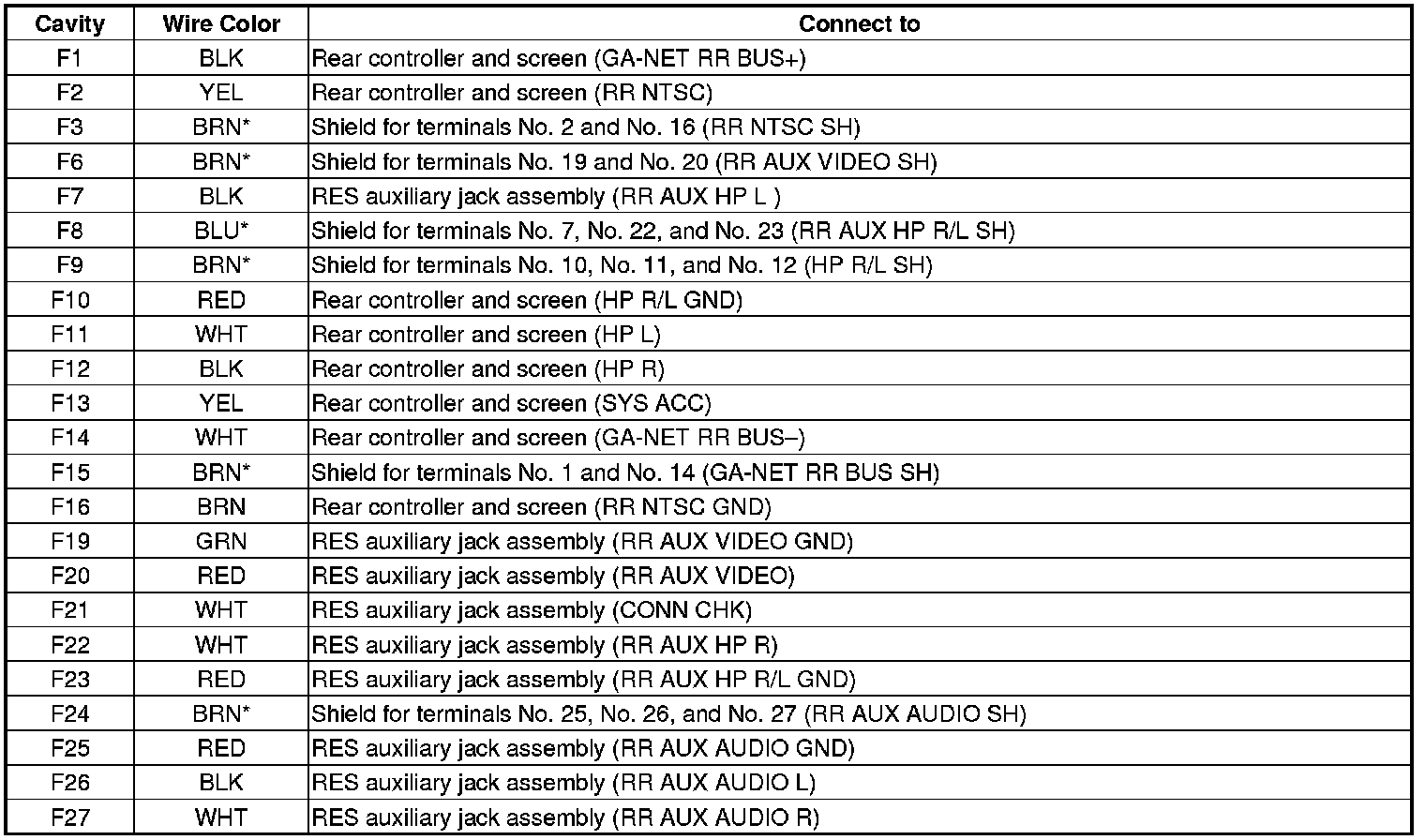

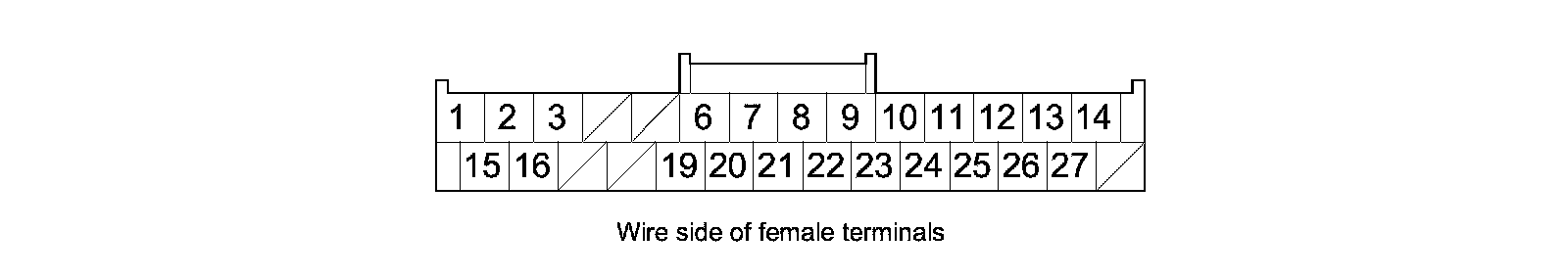

AUDIO UNIT CONNECTOR F (28P) (with rear entertainment system)

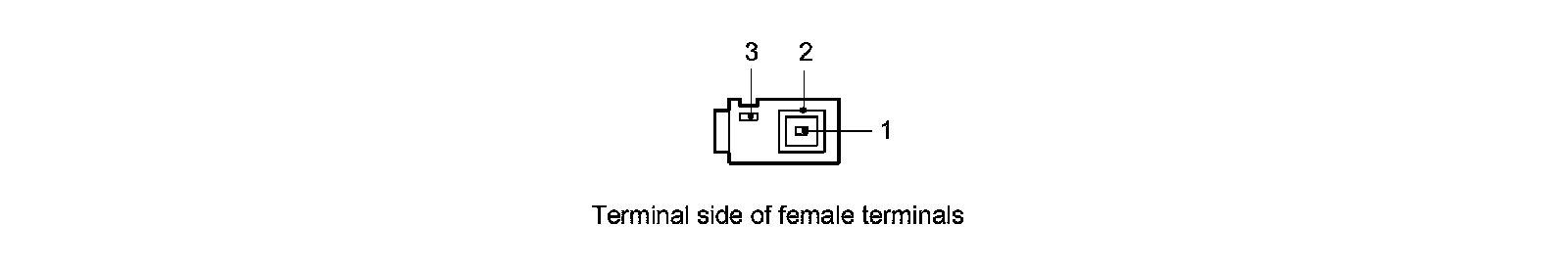

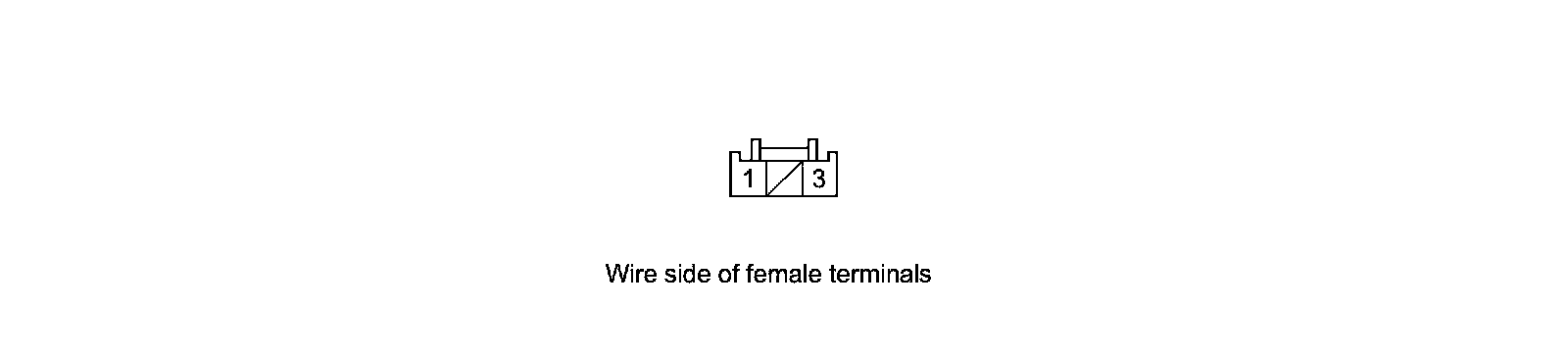

AUDIO UNIT CONNECTOR G (3P)

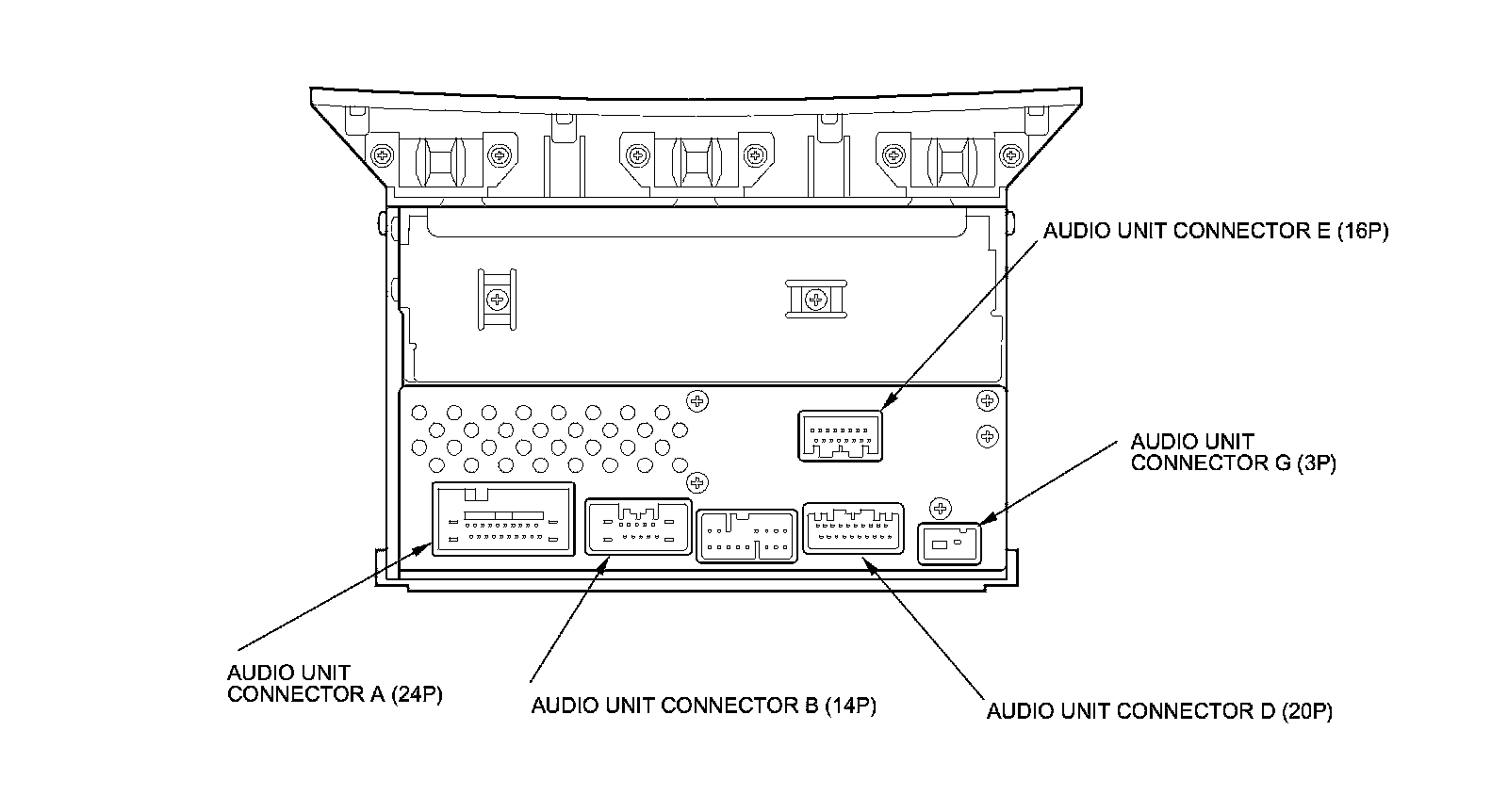

1CD type Without navigation

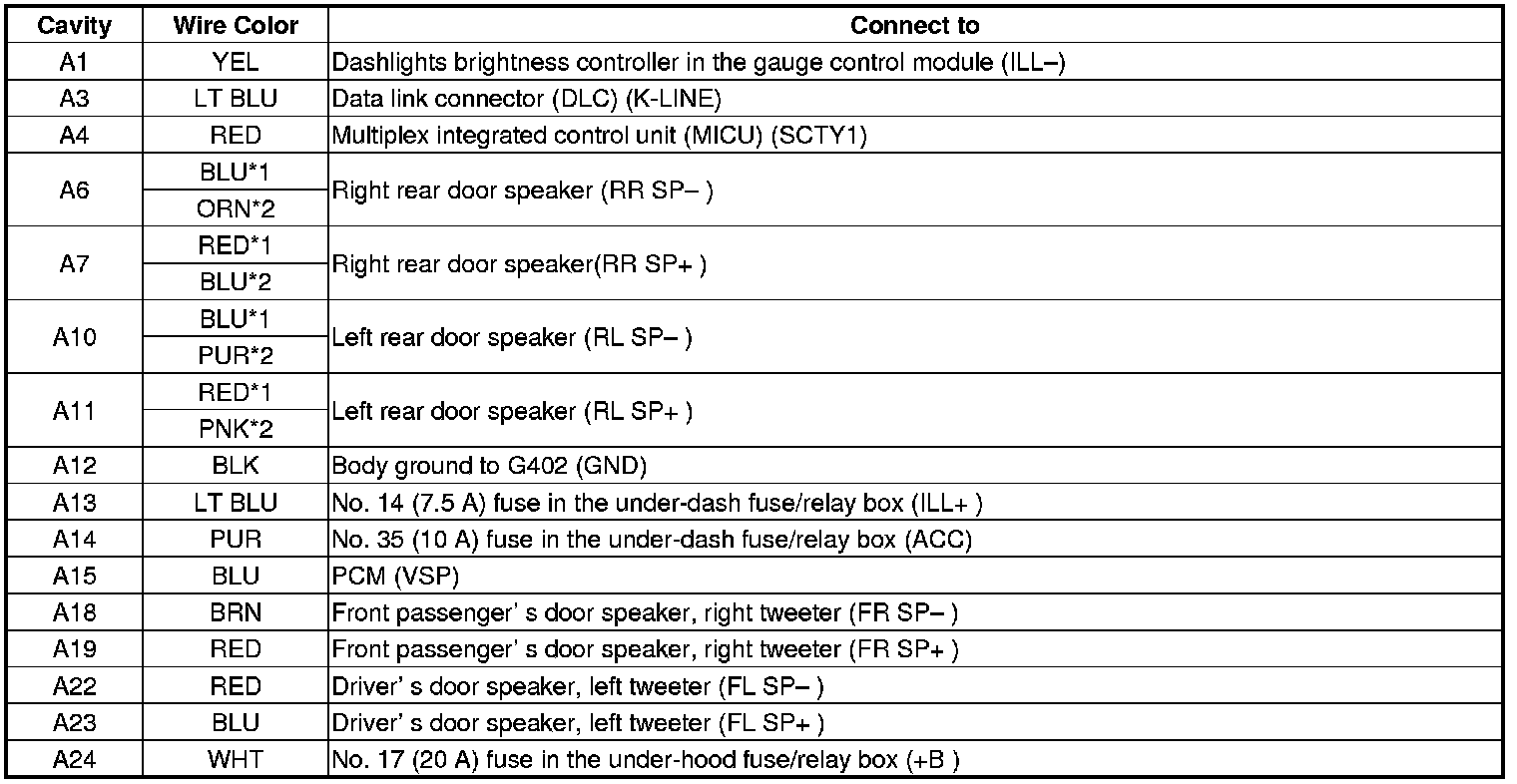

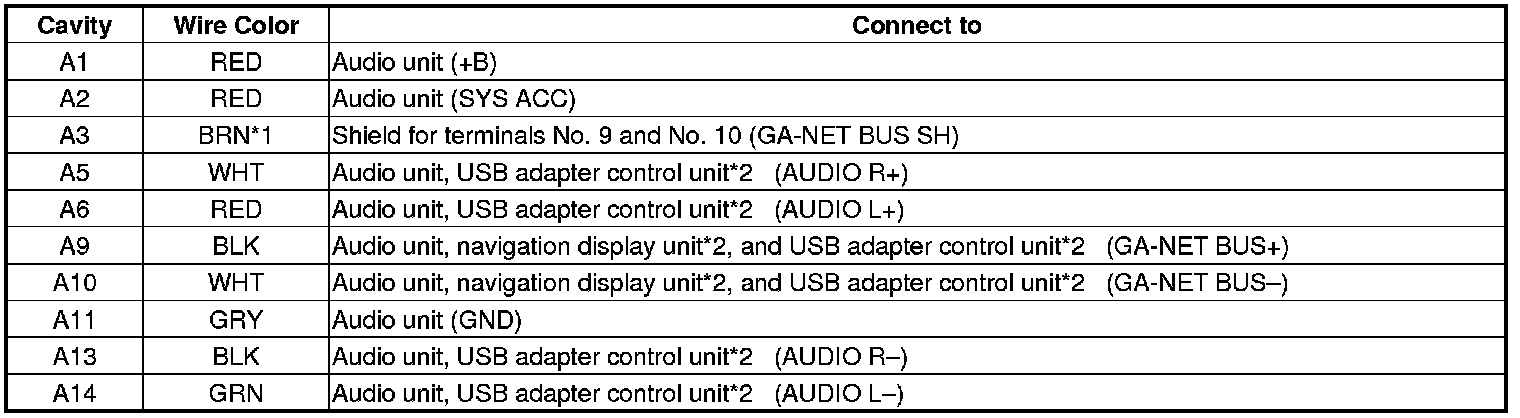

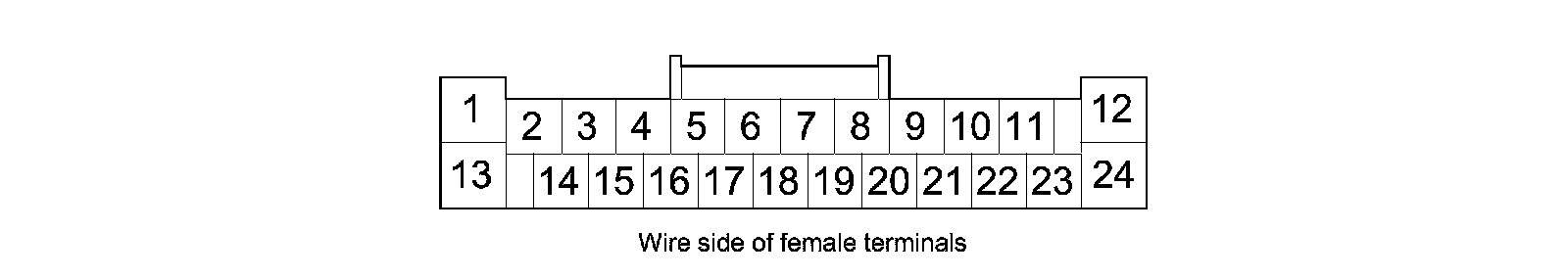

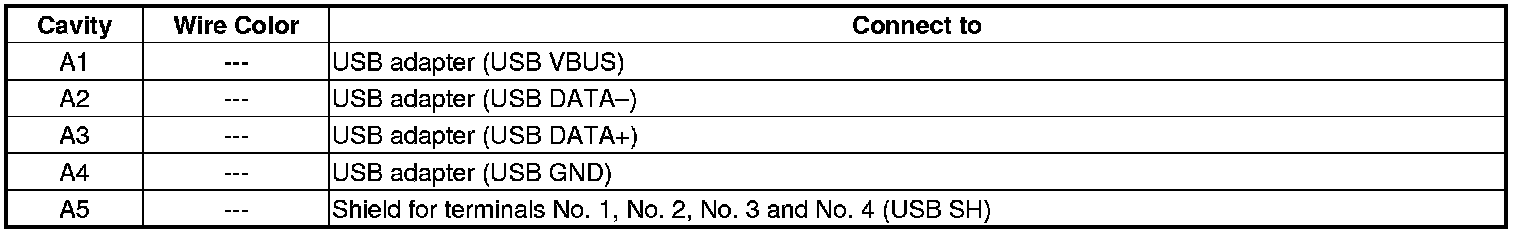

AUDIO UNIT CONNECTOR A (24P)

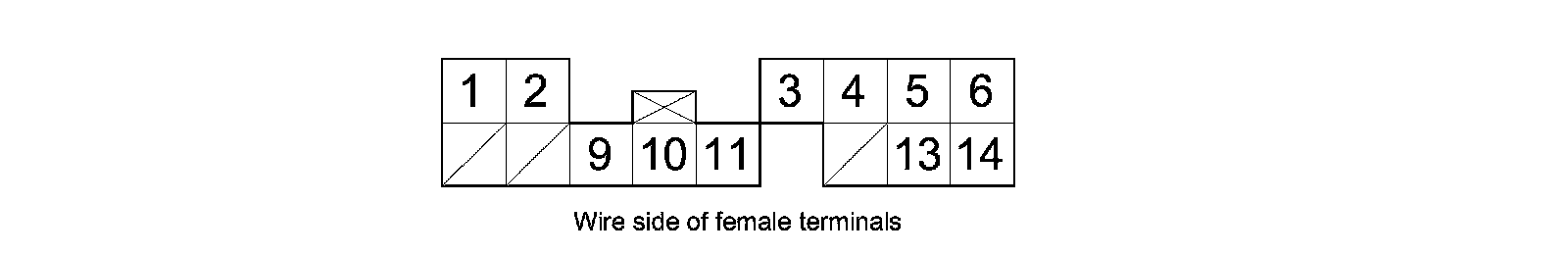

AUDIO UNIT CONNECTOR B (14P)

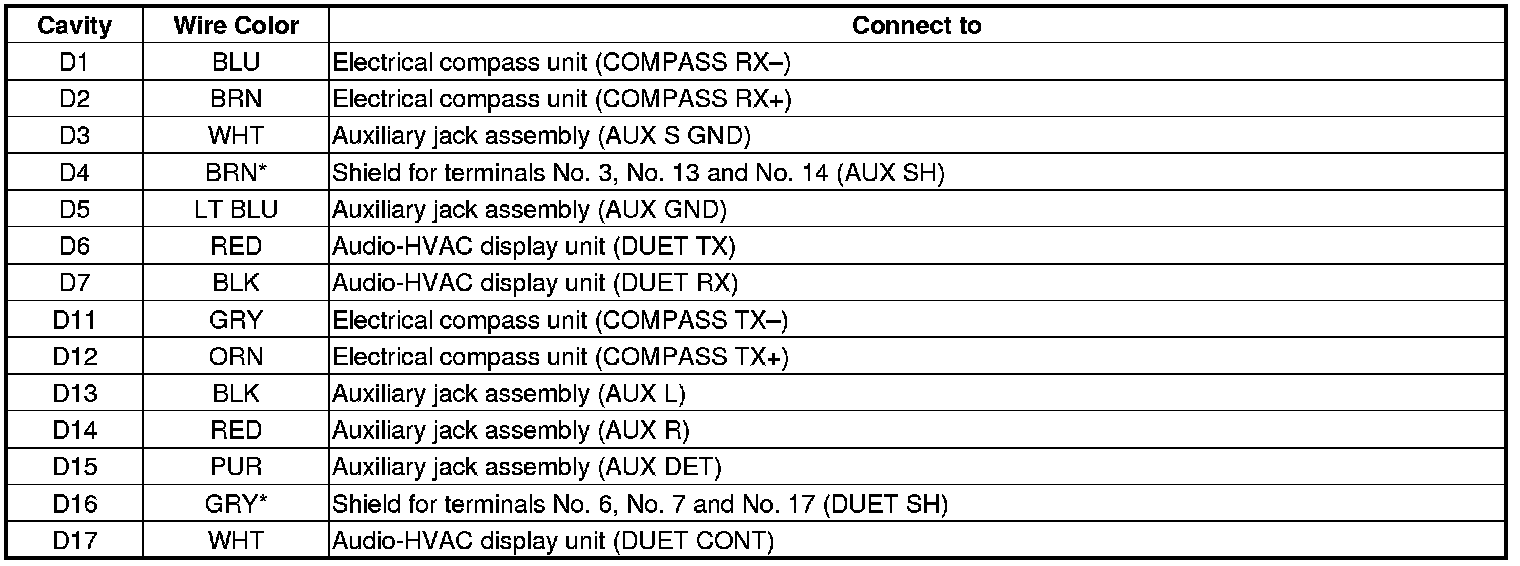

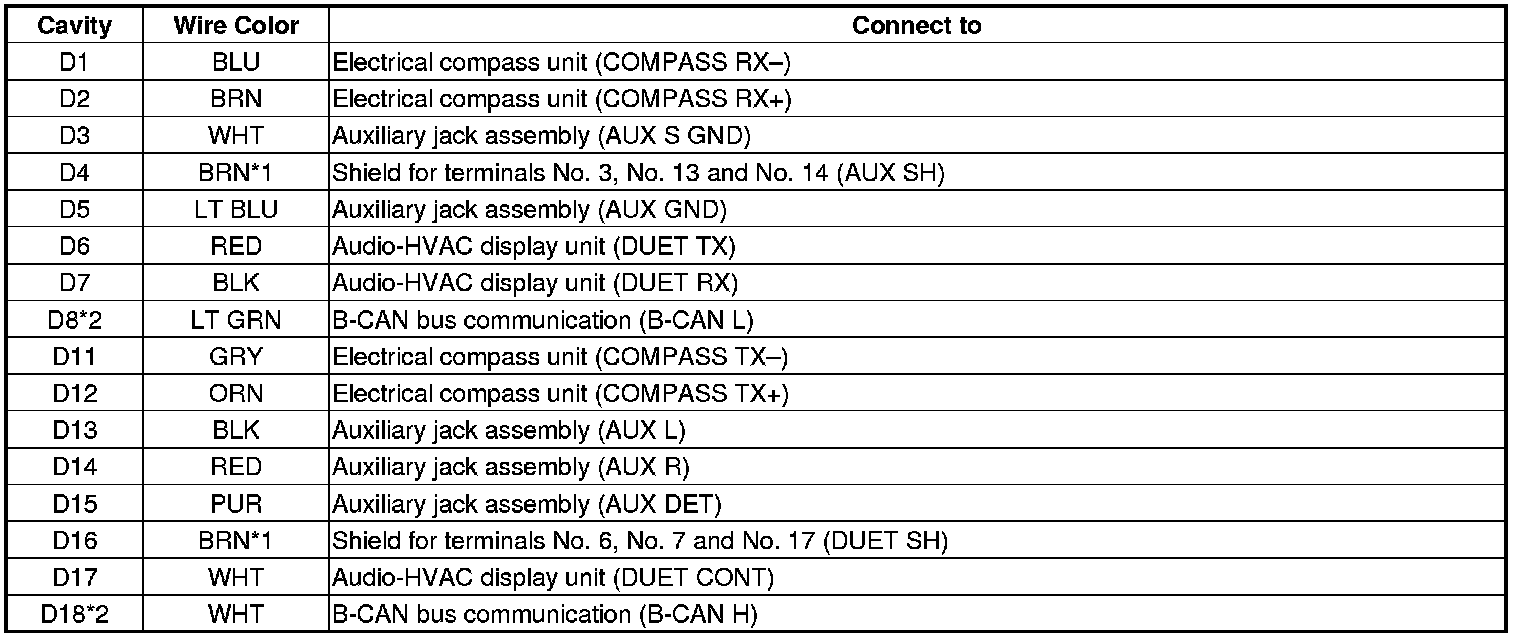

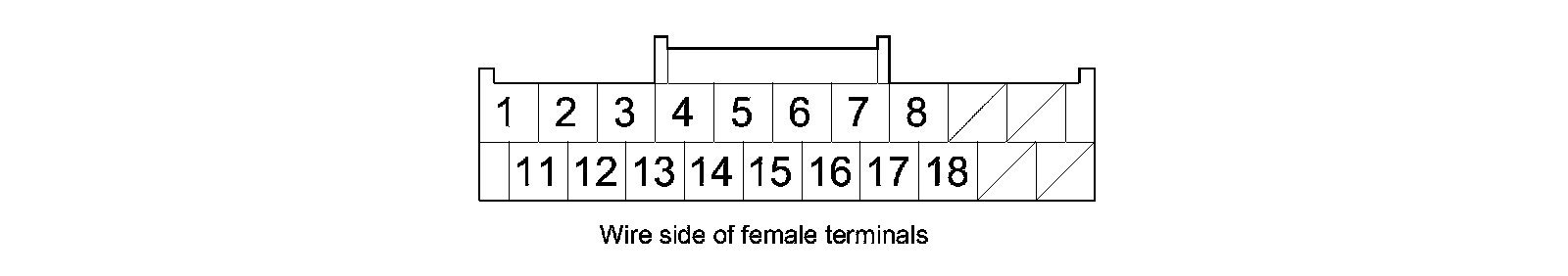

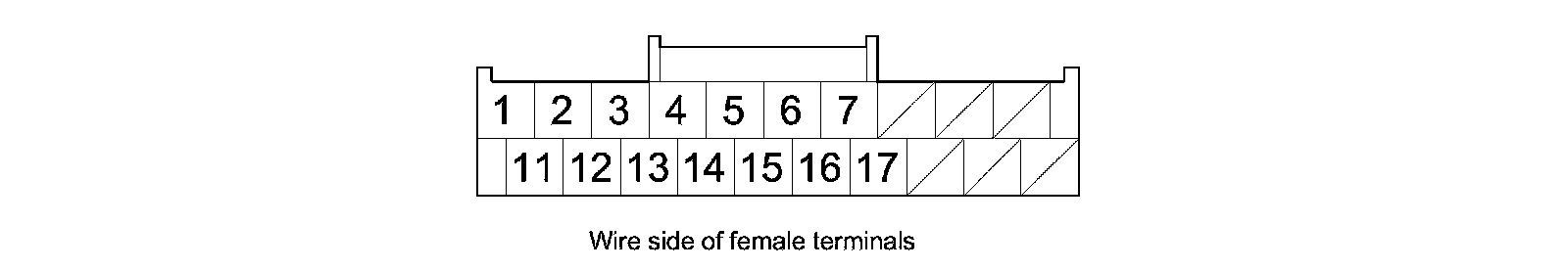

AUDIO UNIT CONNECTOR D (20P) ('09-10 models)
AUDIO UNIT CONNECTOR D (20P) ('11 model)

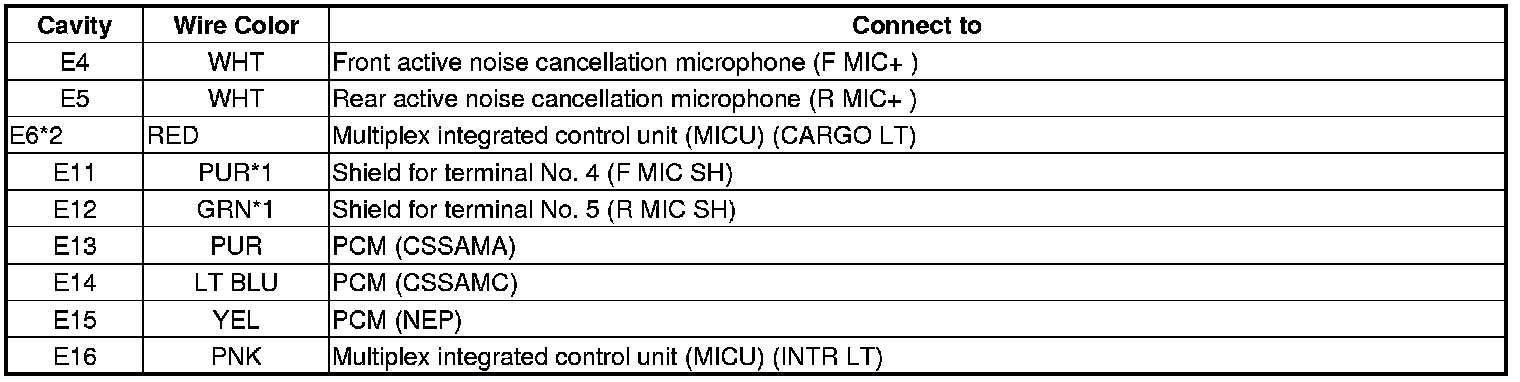

AUDIO UNIT CONNECTOR E (16P)

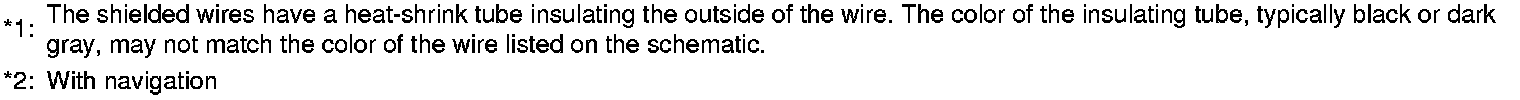

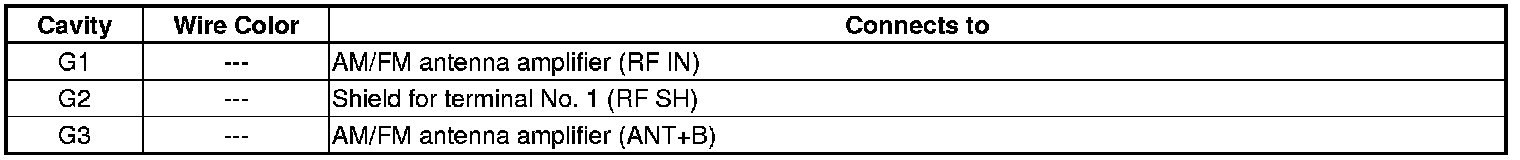

AUDIO UNIT CONNECTOR G (3P)
Audio-HVAC Display Unit Connector for Inputs and Outputs

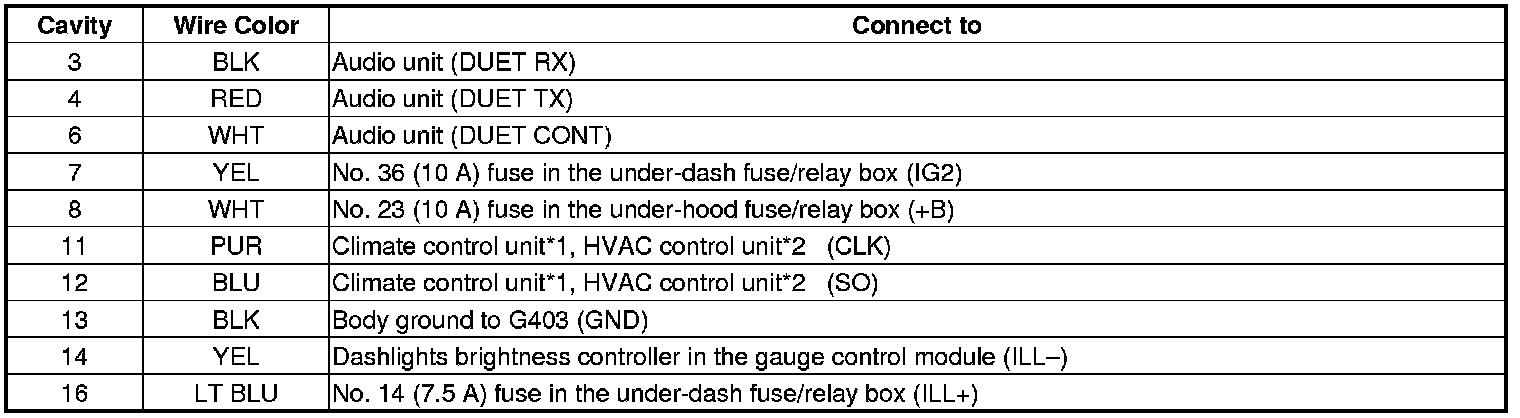

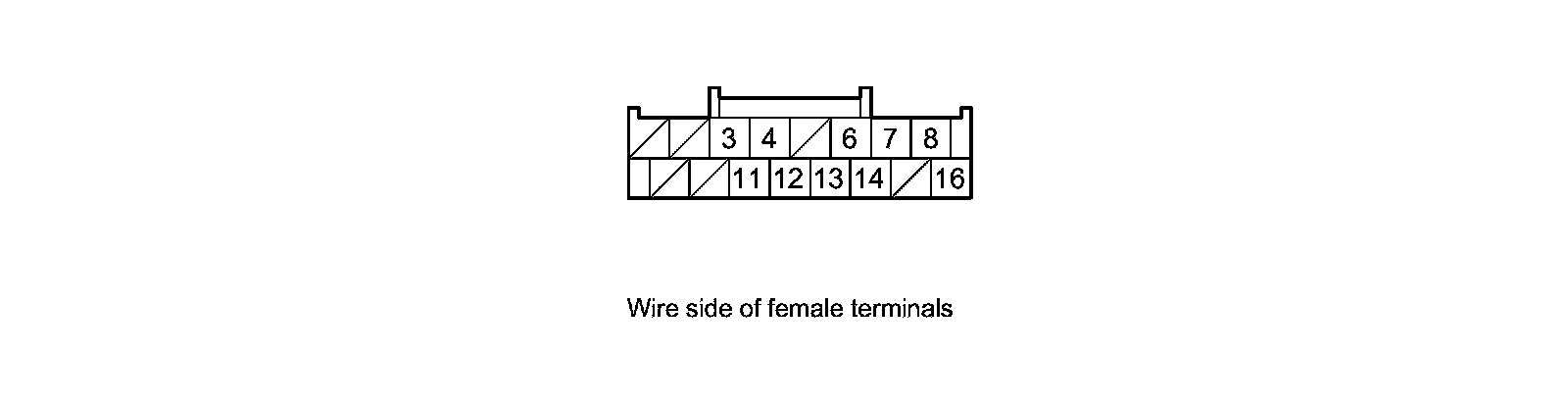

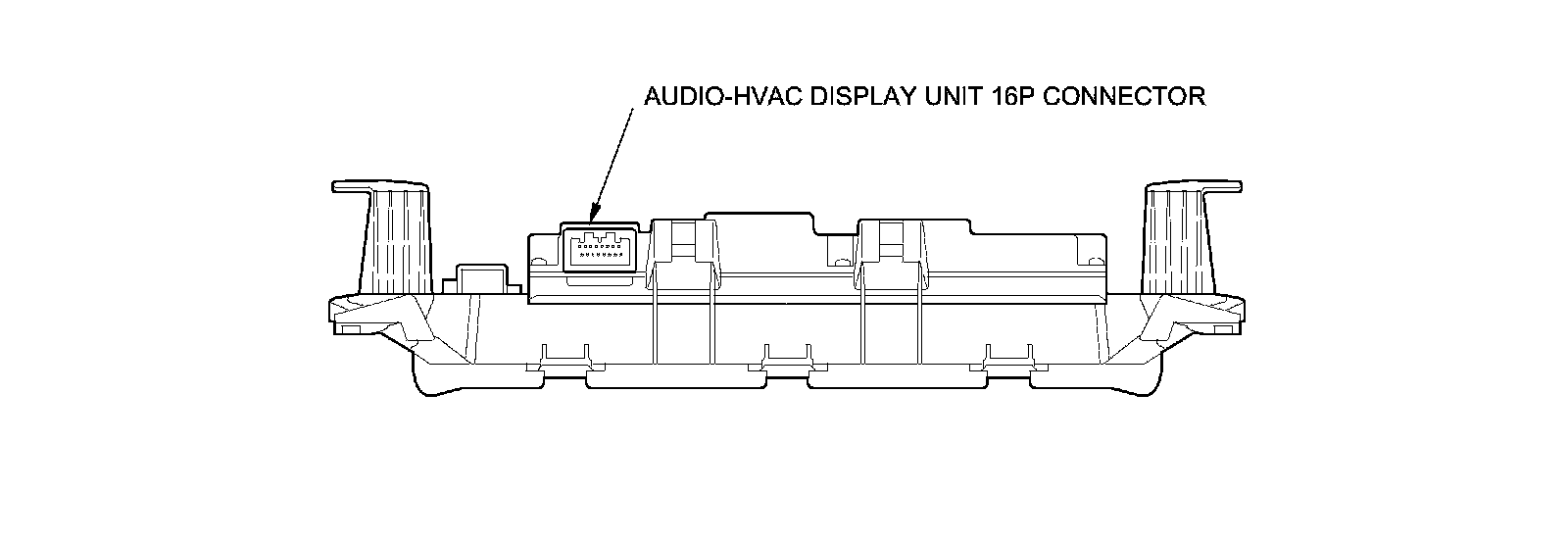

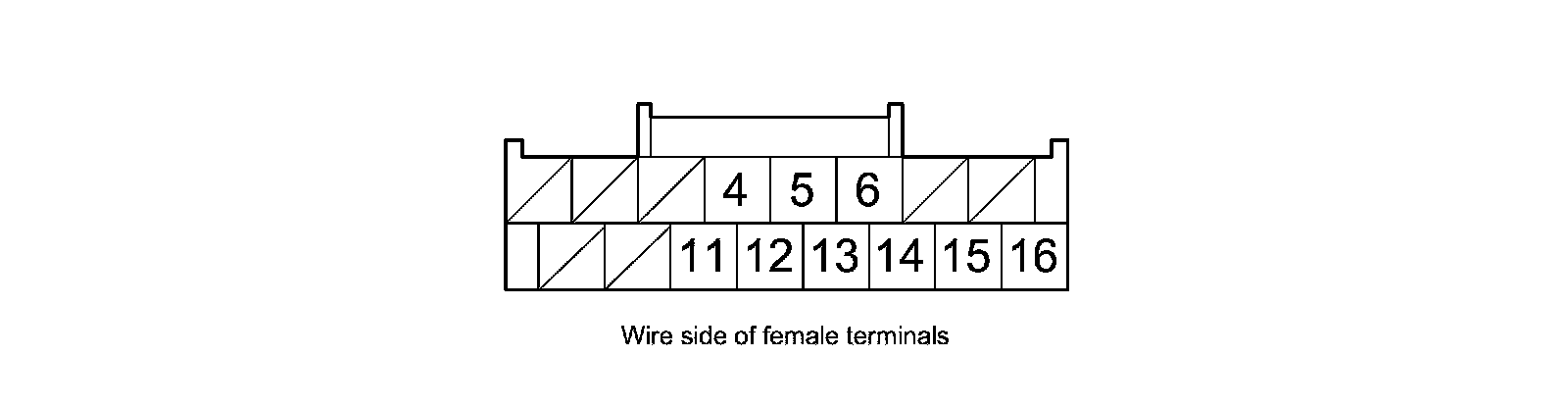

AUDIO-HVAC DISPLAY UNIT 16P CONNECTOR
Stereo Amplifier Connector for Inputs and Outputs

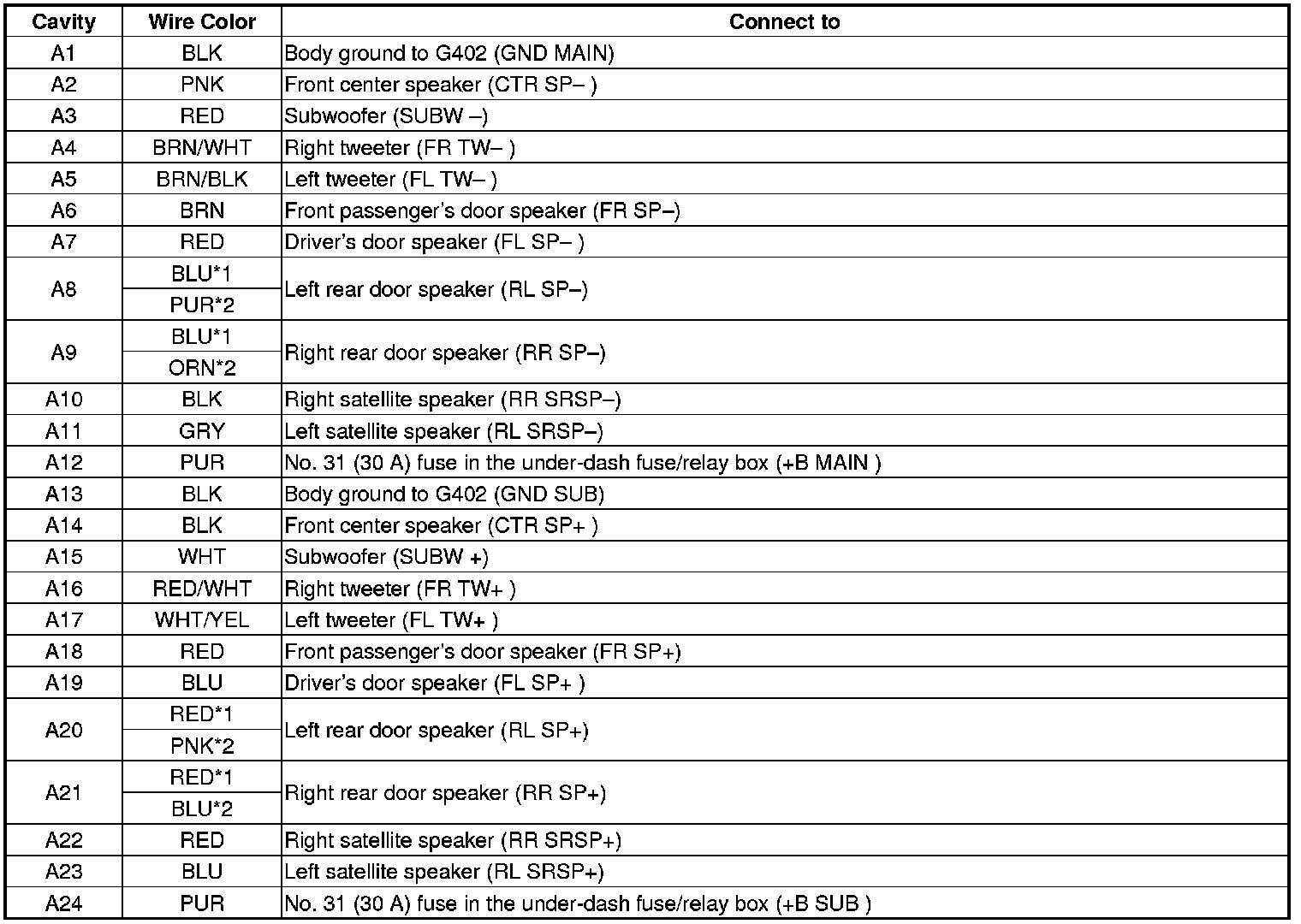

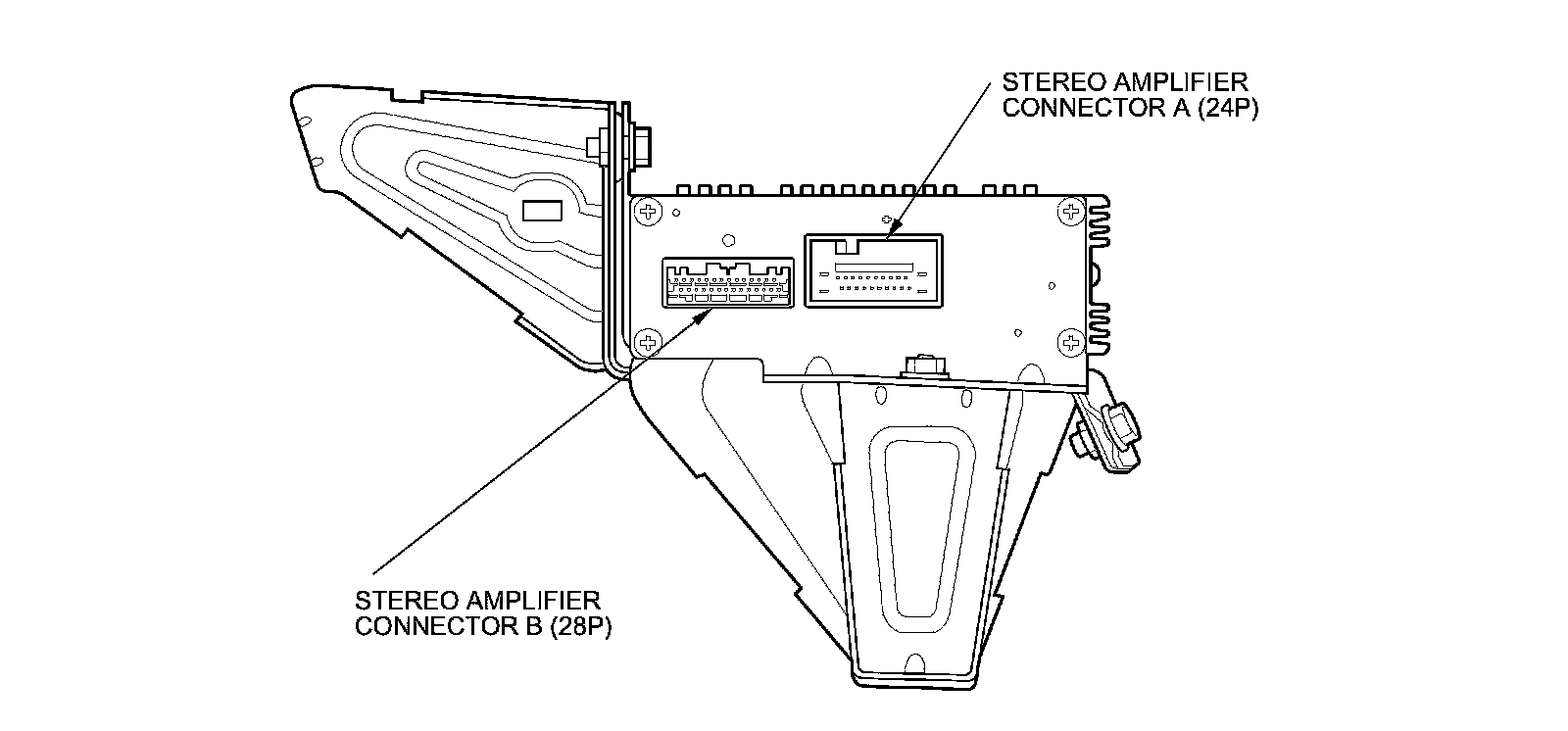

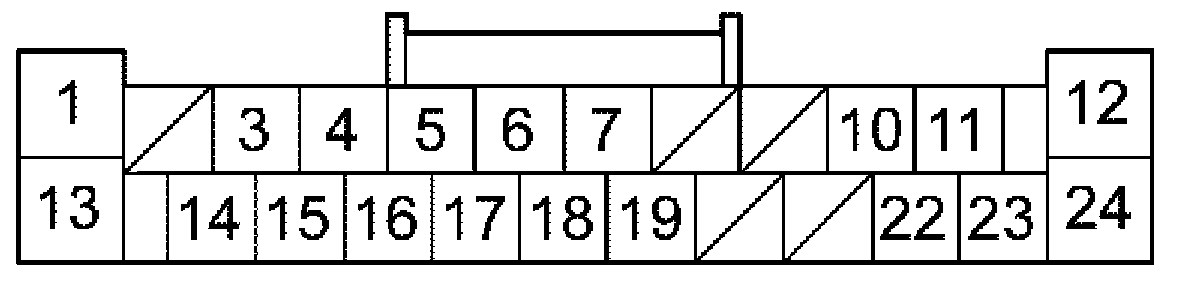

STEREO AMPLIFIER CONNECTOR A (24P)

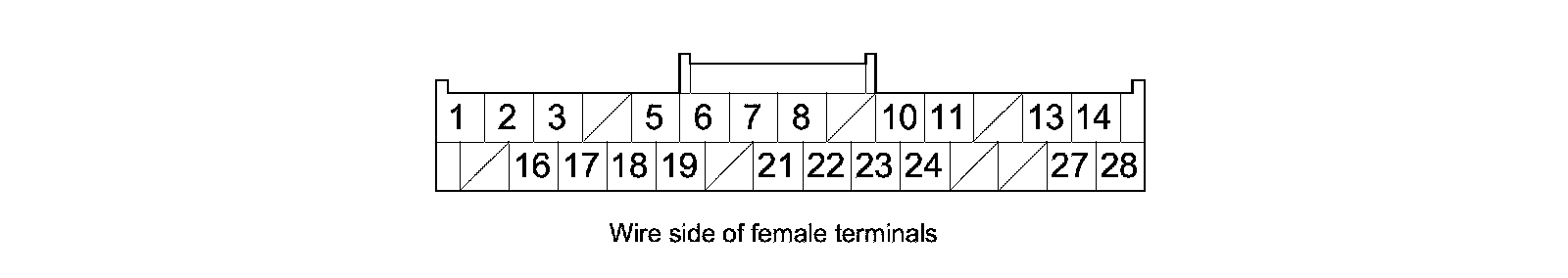

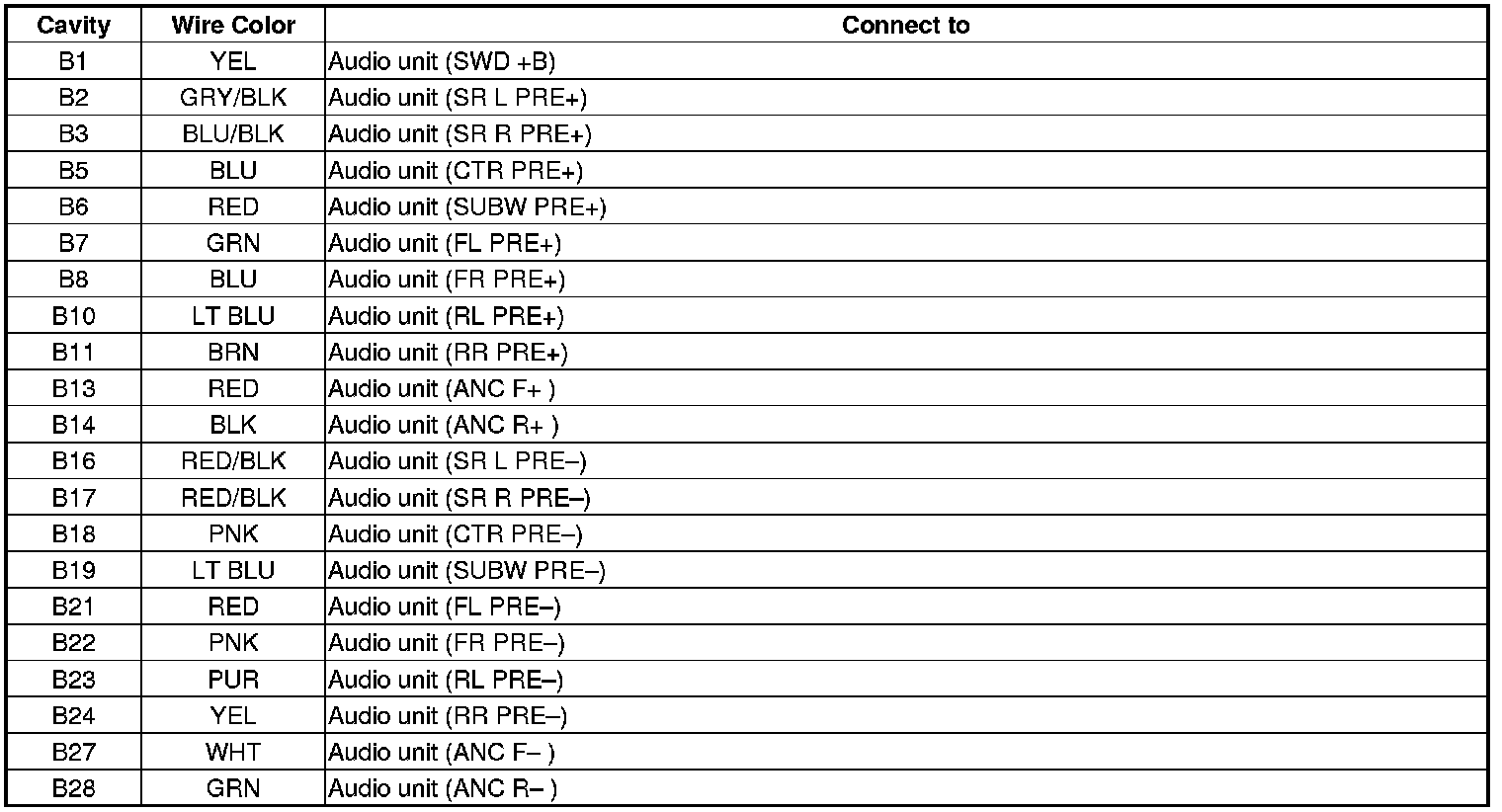

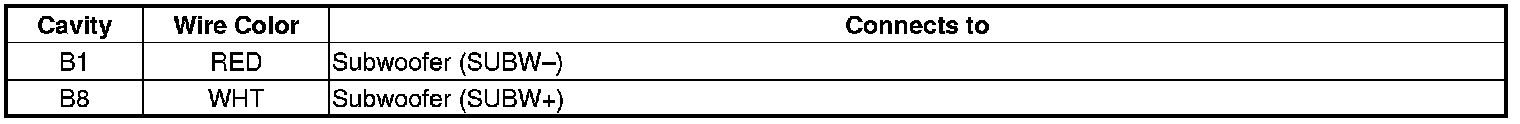

STEREO AMPLIFIER CONNECTOR B (28P)

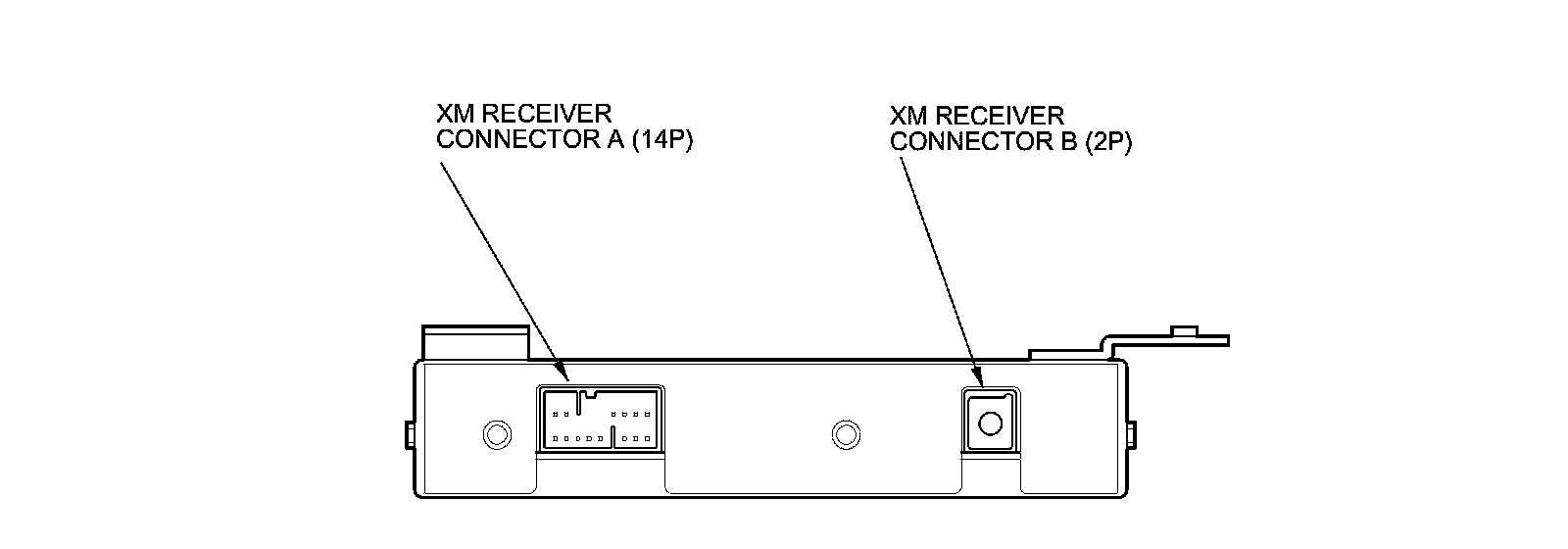

XM Receiver Connectors for Inputs and Outputs

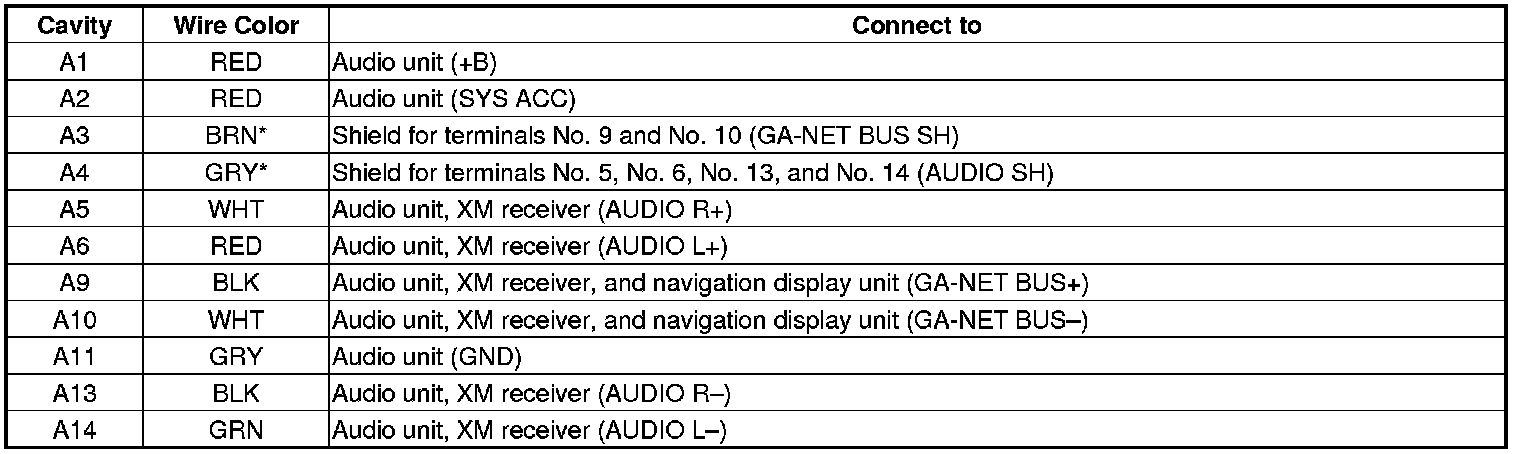

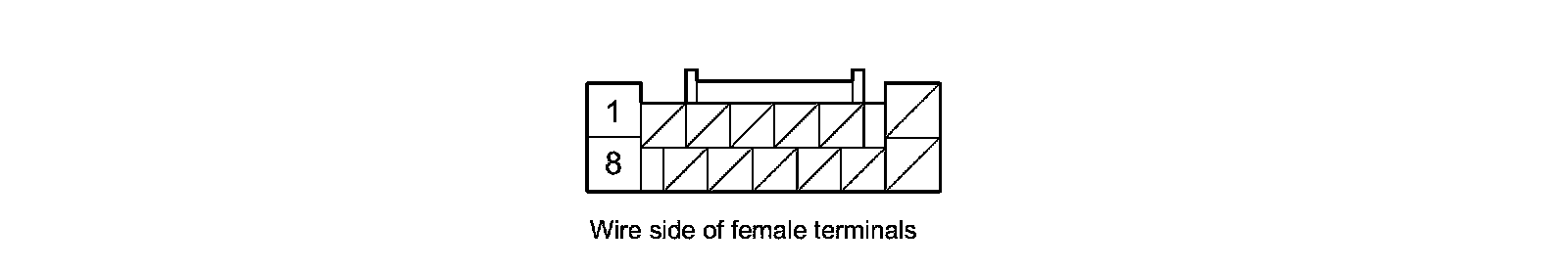

XM RECEIVER CONNECTOR A (14P)

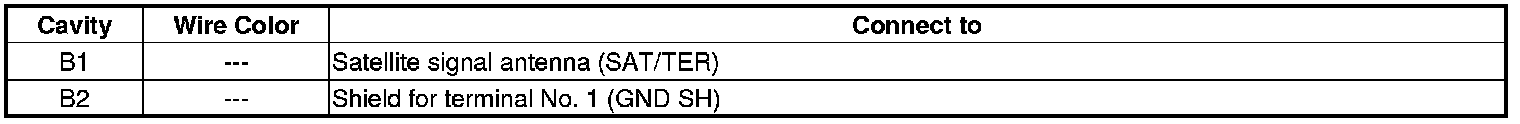

XM RECEIVER CONNECTOR B (2P)

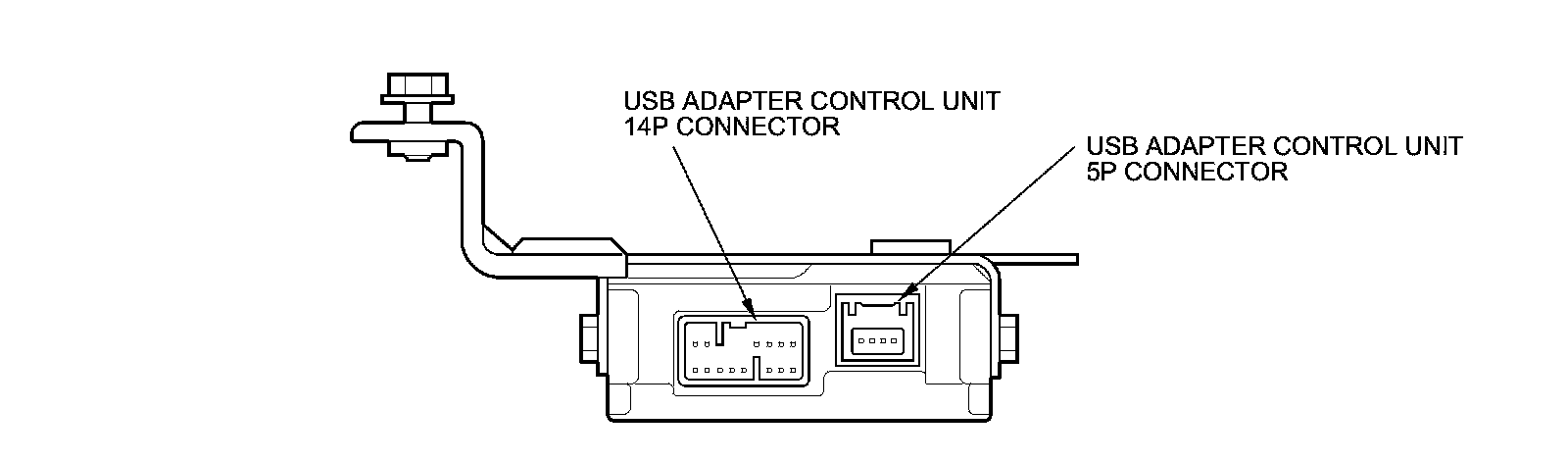

USB Adapter Control Unit Connectors for Inputs and Outputs

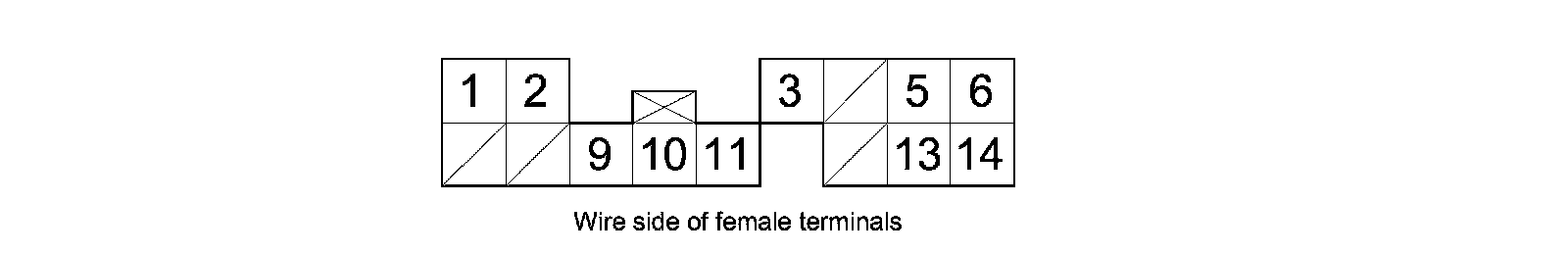

USB ADAPTER CONTROL UNIT CONNECTOR A (14P)
USB ADAPTER CONTROL UNIT CONNECTOR B (5P)
Front Active Noise Cancellation Microphone Connectors for Inputs and Outputs

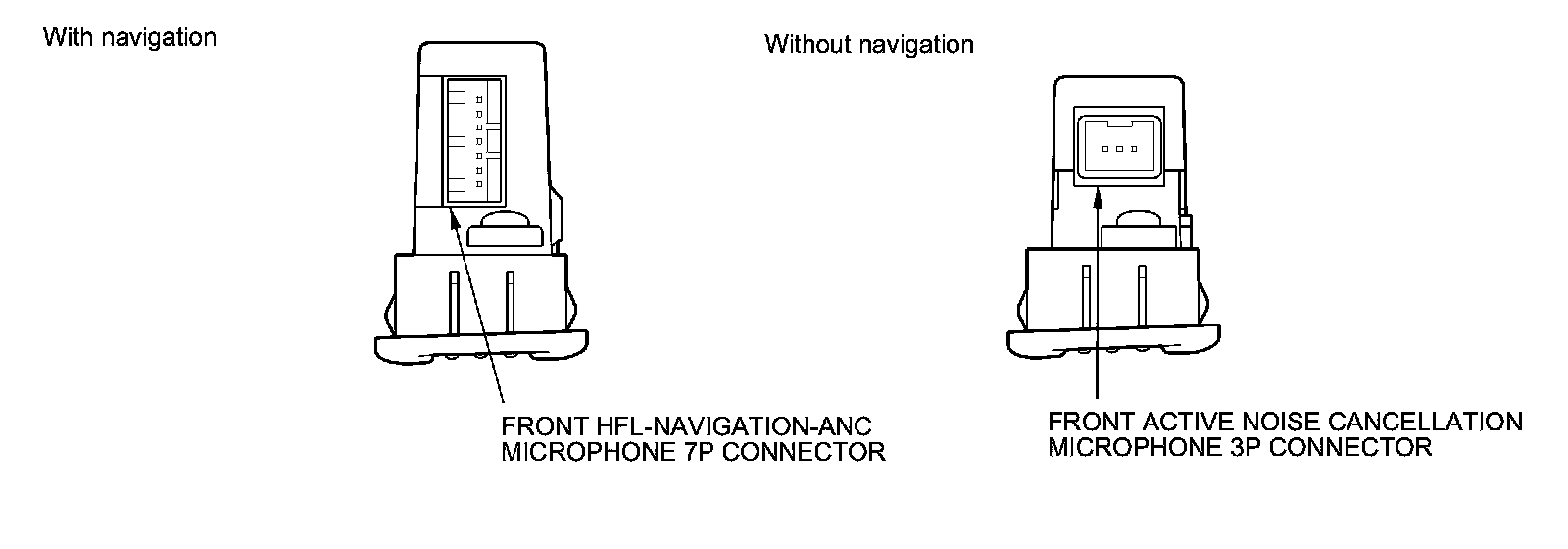

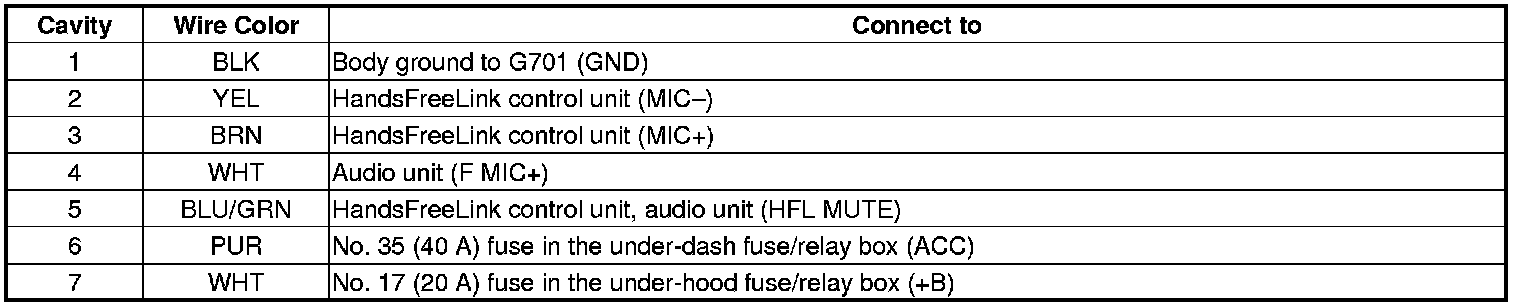

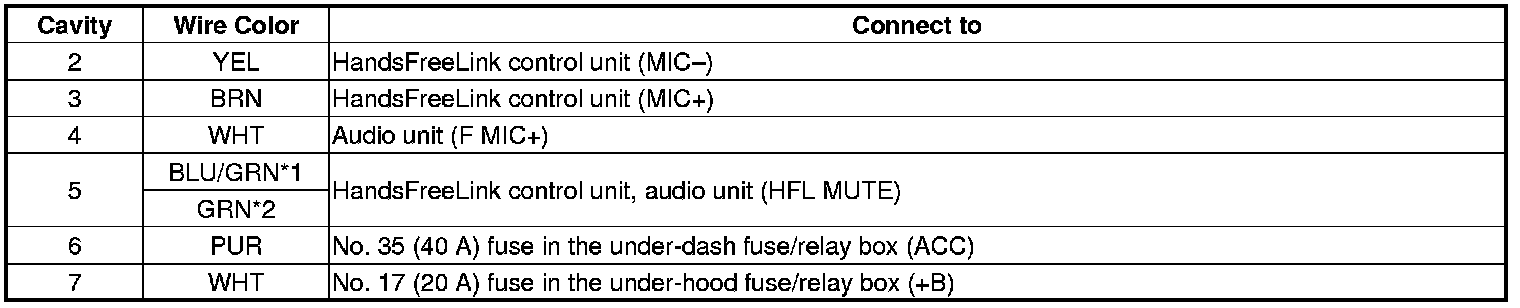

FRONT HFL-NAVIGATION-ANC MICROPHONE 7P CONNECTOR ('09 model with navigation)
FRONT HFL-NAVIGATION-ANC MICROPHONE 7P CONNECTOR ('10-11 models with navigation)

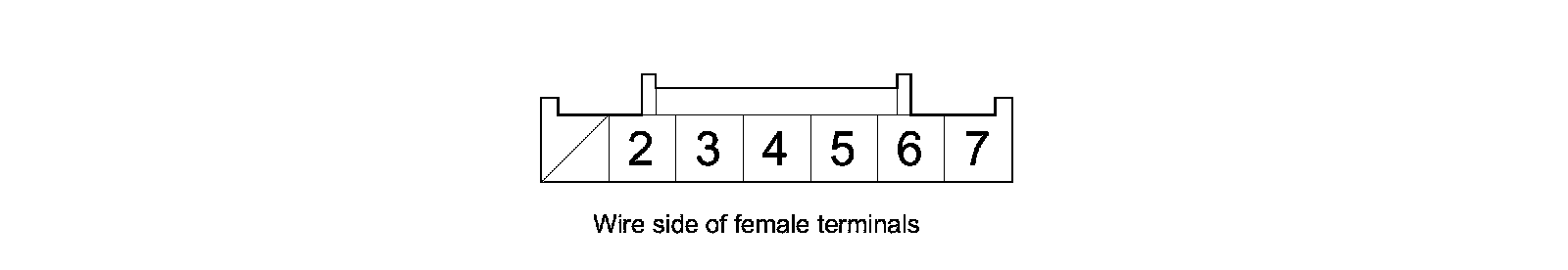

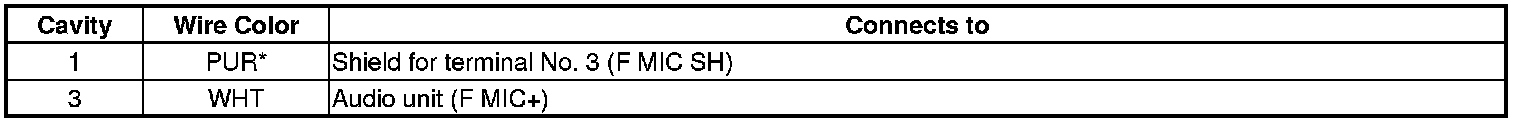

FRONT ACTIVE NOISE CANCELLATION MICROPHONE 3P CONNECTOR (without navigation)
Rear Active Noise Cancellation Microphone Connector for Inputs and Outputs

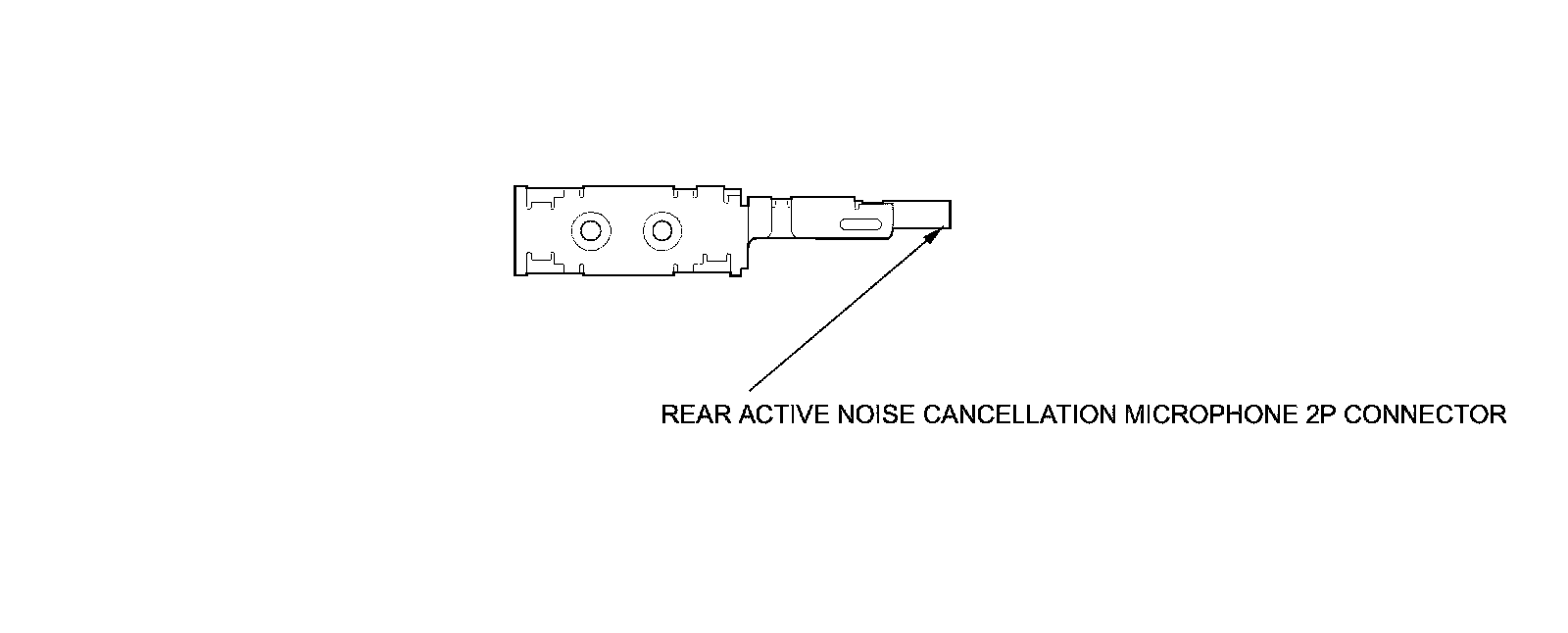

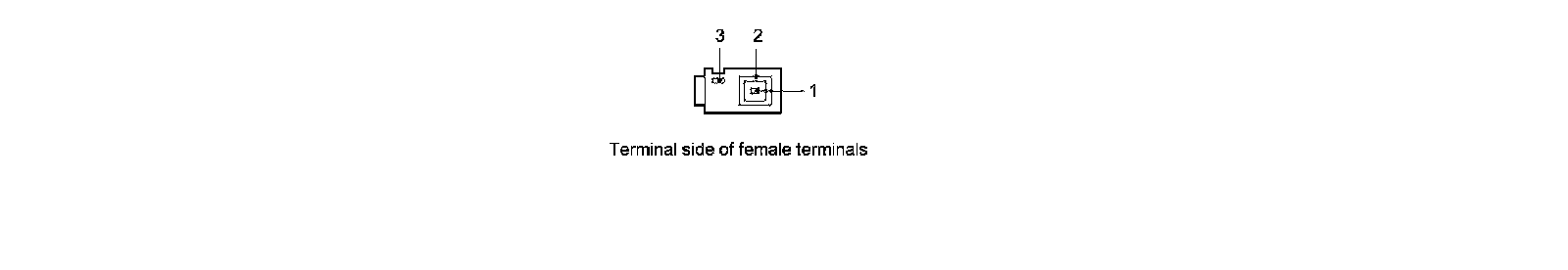

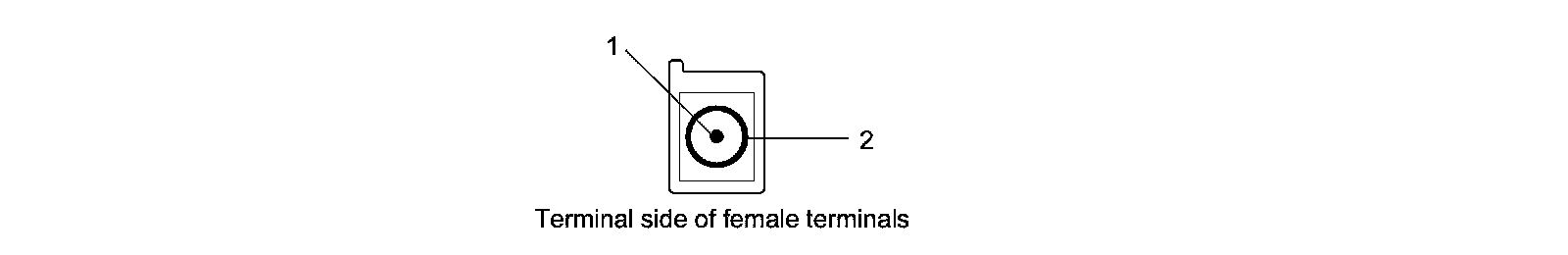

REAR ACTIVE NOISE CANCELLATION MICROPHONE 2P CONNECTOR
Auxiliary Jack Assembly Connector for Inputs and Outputs

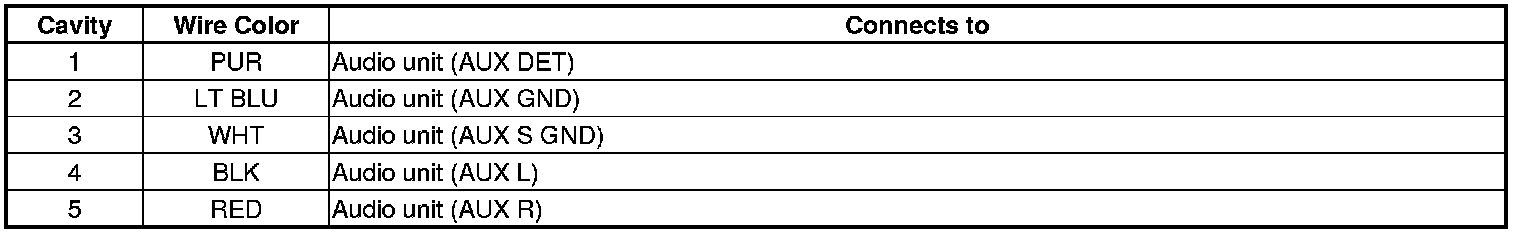

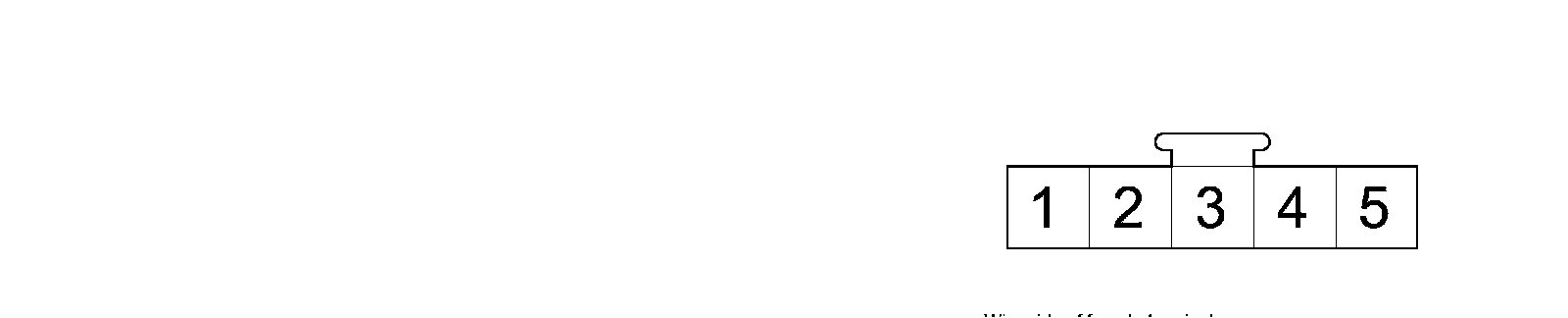

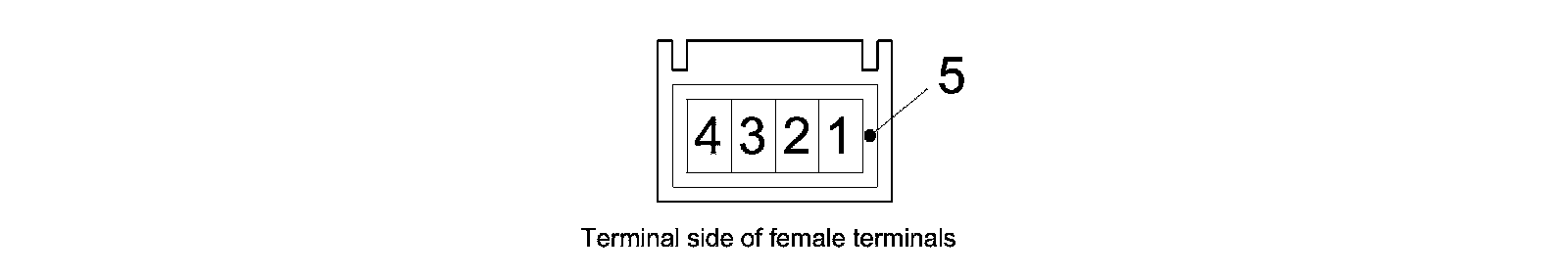

AUXILIARY JACK ASSEMBLY 5P CONNECTOR
