Speaker Test/Replacement

Speaker Test/Replacement

Door Speaker and Test

1. Remove the door panel.

- Front: Service and Repair
- Rear: Service and Repair

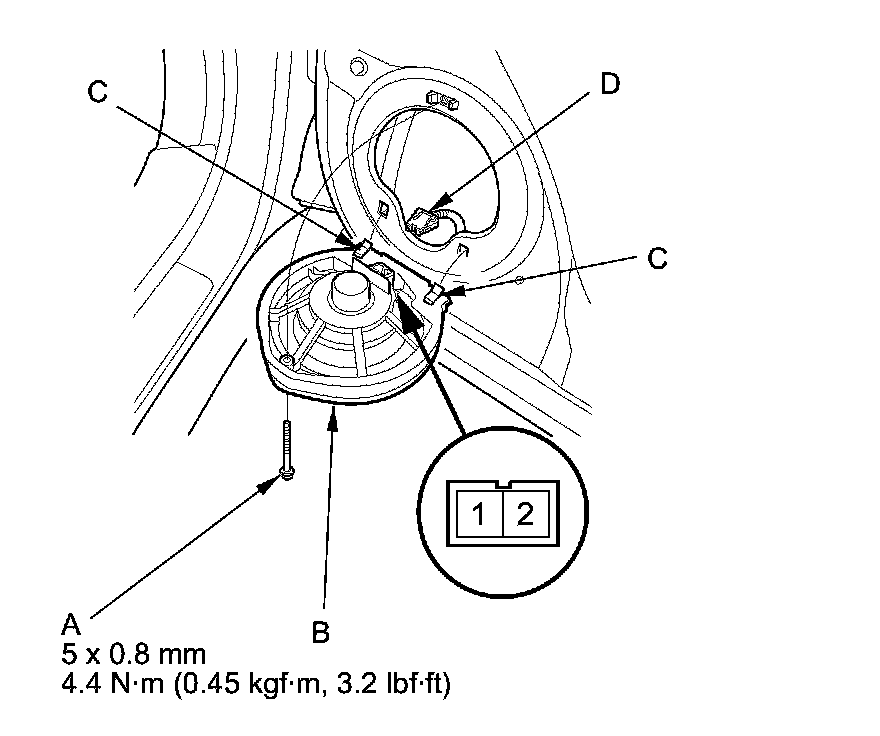

2. Remove the bolt (A). Then lift the speaker (B) straight up to release the lower clips (C).

NOTICE
If you pull the speaker out too far from the door, you will damage the lower clips.





3. Disconnect the 2P connector (D), and remove the speaker.

4. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ohms.

5. If the resistance is not as specified, replace the door speaker.

Center Speaker and Test

NOTE:

- Put on gloves to protect your hands.
- Take care not scratch the dashboard.

1. Remove the center upper panel Dashboard Center Upper Panel Removal/Installation.

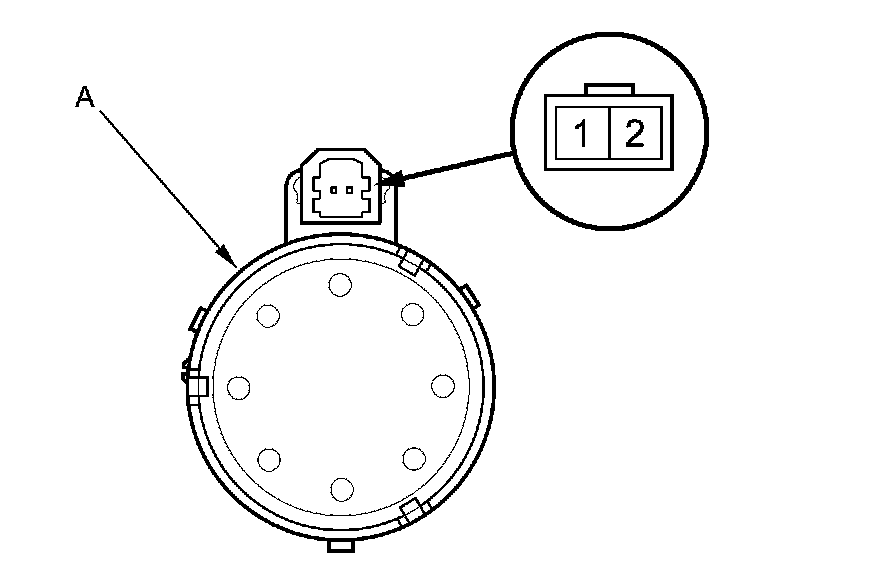

2. Remove the screws and the speaker (A).





3. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ohms.

4. If the resistance is not as specified, replace the center speaker.

Tweeter and Test

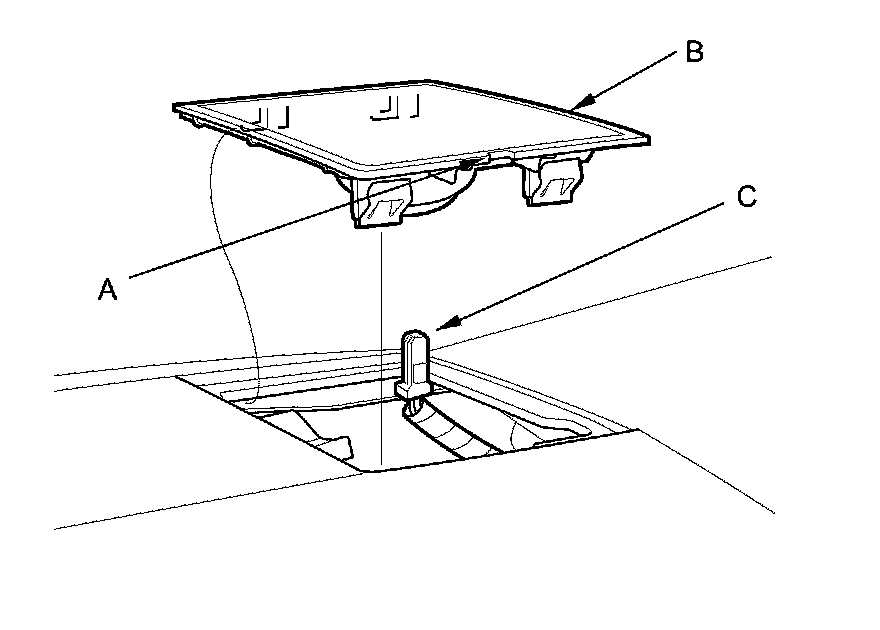

1. From the notch (A), carefully pry the tweeter grille (B) out of the dashboard with a small screwdriver. Be careful not to damage the tweeter grille and the dashboard.





2. Disconnect the 2P connector (C) from the tweeter.

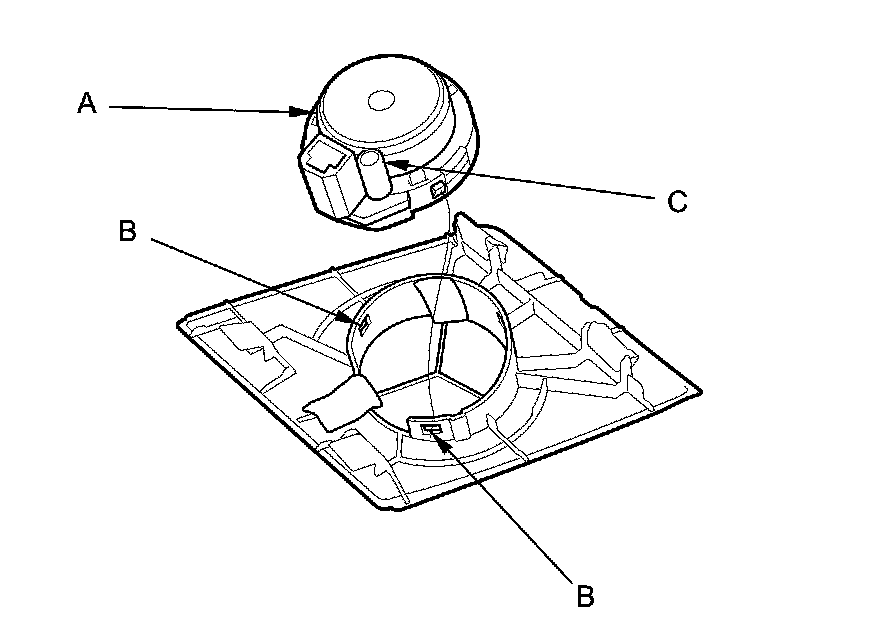

3. Remove the tweeter (A) from the speaker grille by prying at the hook (B).





4. Without navigation and rear entertainment system, check the capacitor (C) condition. If any problem is found, replace the tweeter.

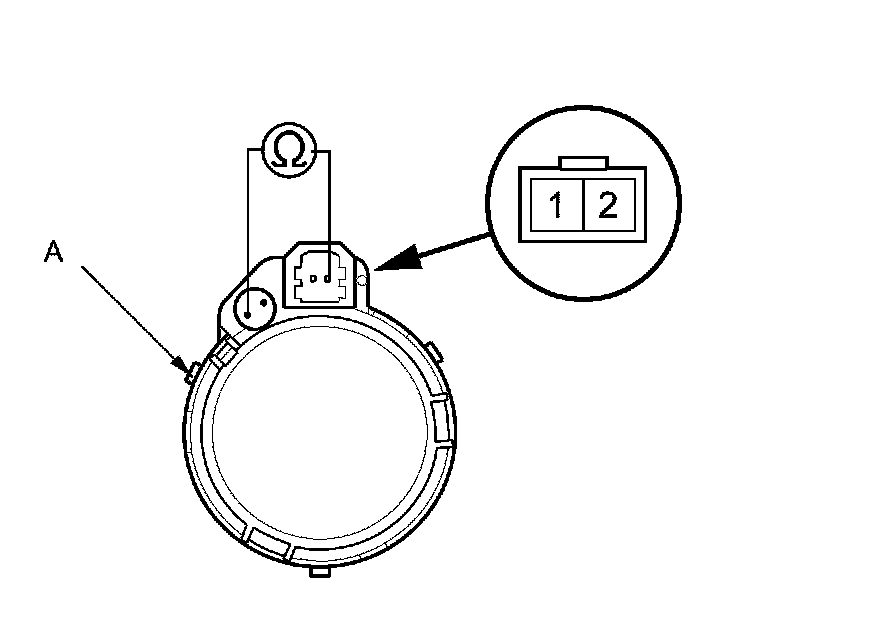

5. Measure the resistance between the tweeter (A) terminals as shown.

- With rear entertainment system and/or navigation: Measure the resistance between the tweeter 2P connector terminals No. 1 and No. 2. There should be about 3.3 Ohms.
- Without navigation and rear entertainment system: Measure the resistance between the tweeter (A) terminal No. 2 and the outside terminal of the capacitor. There should be about 6 Ohms.

With rear entertainment system and/or navigation





Without navigation and rear entertainment system





6. If the resistance is not as specified, replace the tweeter.

Satellite Speaker and Test

1. Remove the D-pillar trim.

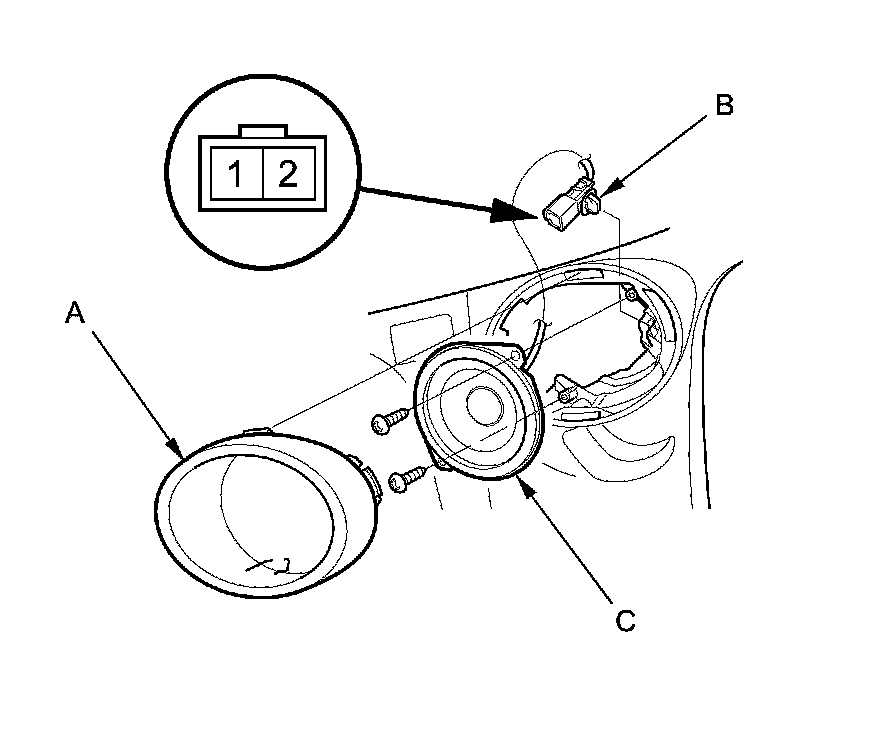

2. Remove the speaker grille (A) and connector clip (B).





3. Remove the screws and the satellite speaker (C).

4. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ohms.

5. If the resistance is not as specified, replace the satellite speaker.

Subwoofer and Test

1. Remove the right rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

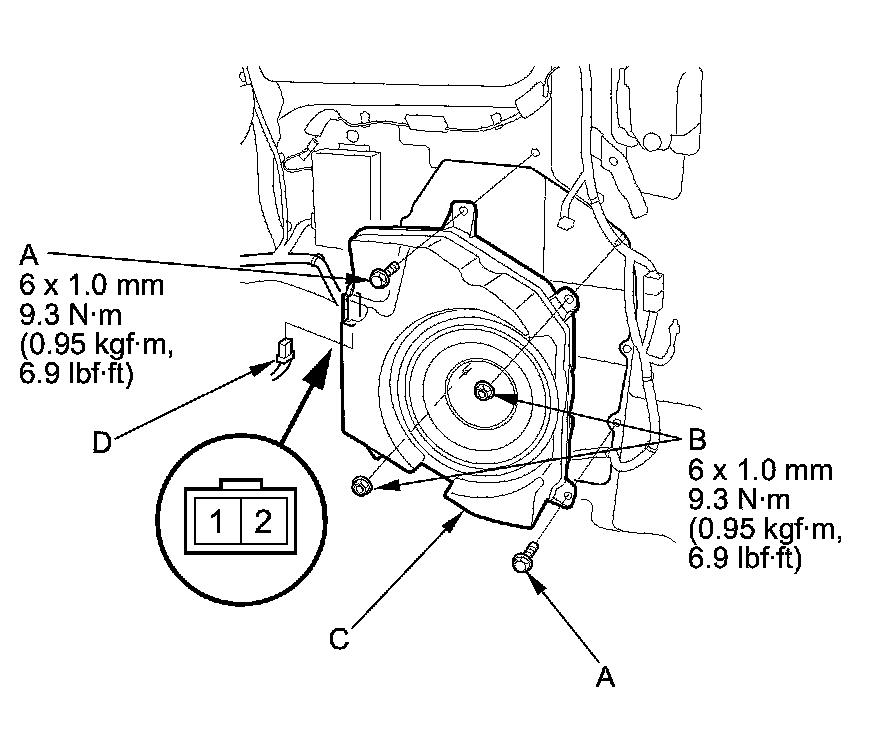

2. Remove the bolts (A) and nuts (B) from the subwoofer (C).





3. Disconnect the connector (D), then remove the subwoofer.

4. Measure the resistance between terminals No. 1 and No. 2. There should be about 2 Ohms.

5. If the resistance is not as specified, replace the subwoofer.
