Front Door Latch: Service and Repair

Front Door Latch Replacement

NOTE: Put on gloves to protect your hands.

1. Raise the glass fully.

2. Remove the door panel Service and Repair.

3. Remove the plastic cover, as needed.

4. Detach the rod fastener.

5. Disconnect the outer handle rod from the outer handle.

6. Disconnect the cylinder cable from the latch.

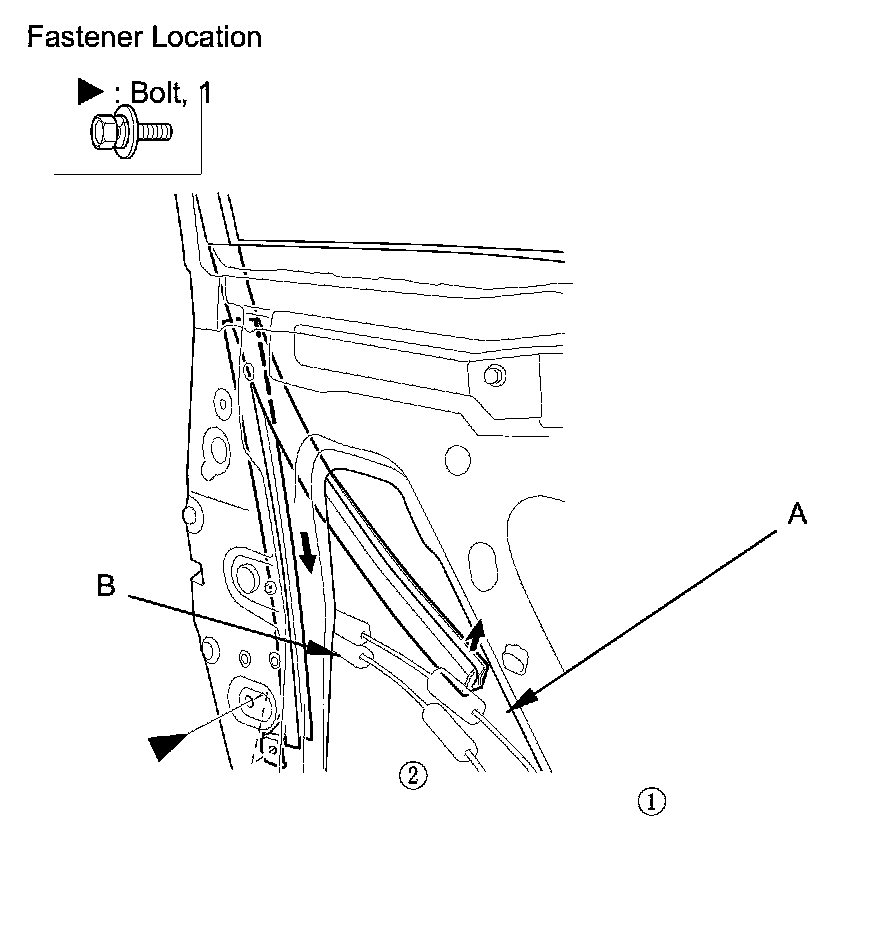

7. Pull the glass run channel (A) away as needed, and remove the bolt, then remove the center lower channel (B) by pulling it downward.

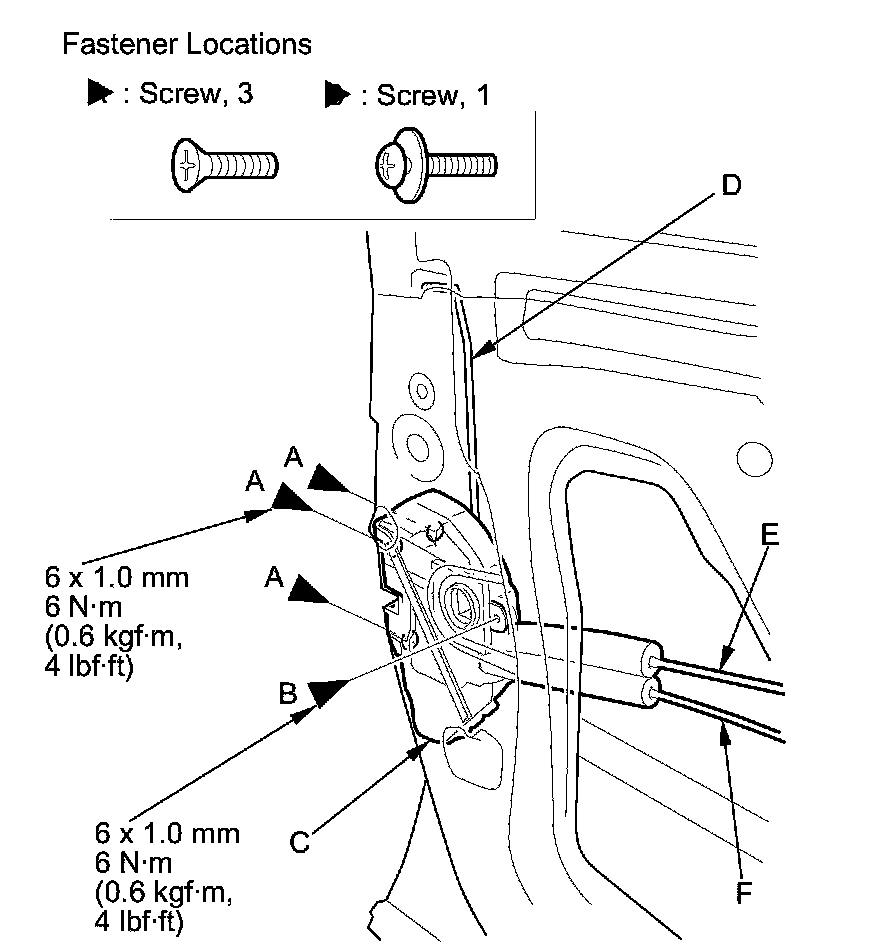

8. Remove the screws (A, B) securing the latch (C), then remove the latch through the hole in the door. Take care not to bend the outer handle rod (D), the latch cable (E), or the inner handle cable (F).

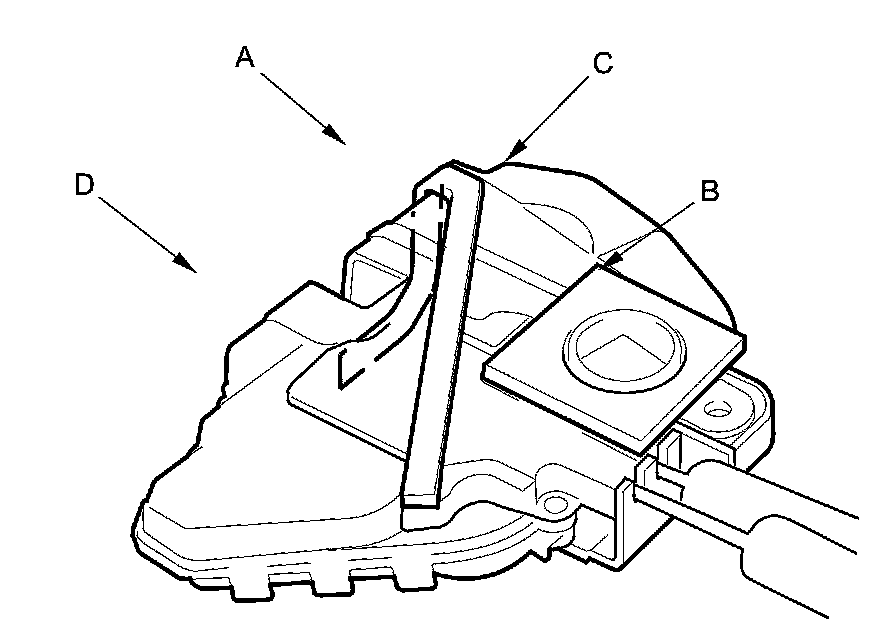

9. Remove the foam seals (A, B) from the latch protector (C) and the latch (D).

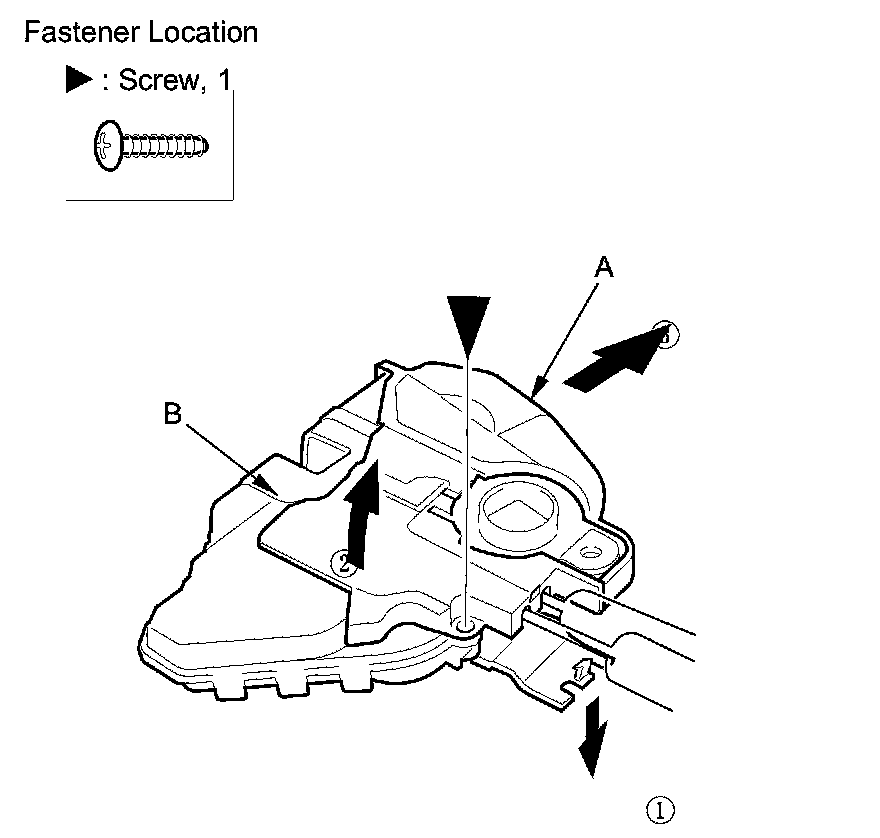

10. Remove the screw, then remove the latch protector (A) from the latch (B).

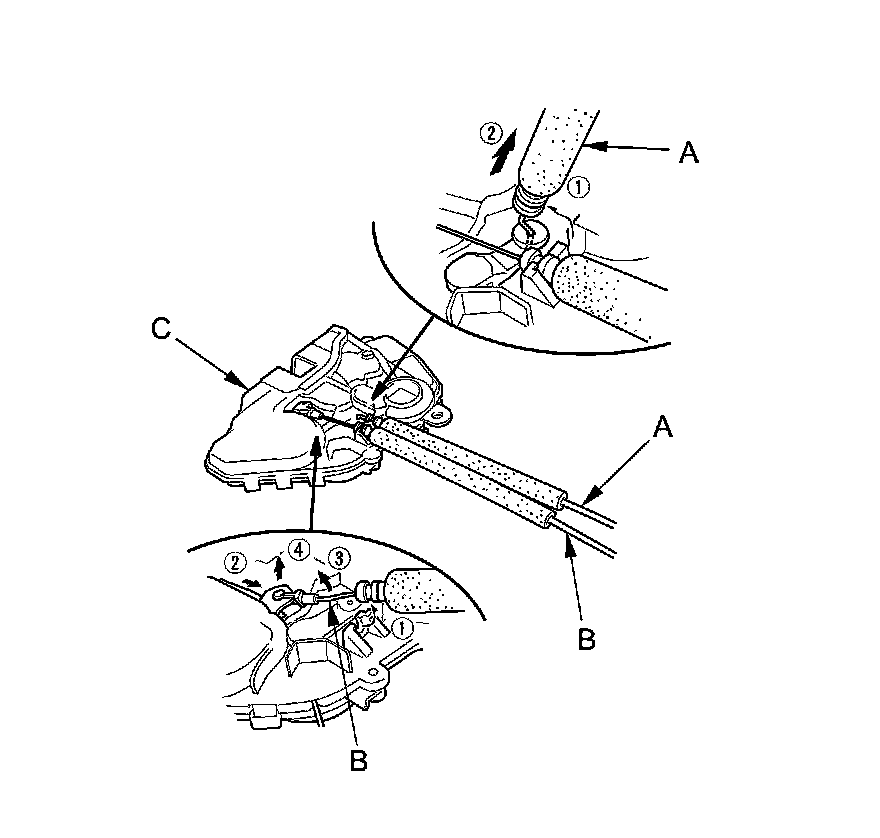

11. Detach the latch cable (A) and the inner handle cable (B) from the latch (C).





12. Install the latch in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly, and the cylinder cable and the outer handle rod are connected securely.
- Make sure the power door lock operates properly.
- When reinstalling the door panel, make sure the plastic cover on the door is installed properly.
- Before reinstalling the latch protector, clean the latch and the latch protector surfaces with isopropyl alcohol where the new foam seals will be attached.
- After reinstalling the latch protector to the latch, attach the new foam seal to the protector and the latch.
