Inside Tailgate Switch Test/Replacement (With Power Tailgate)




Inside Tailgate Switch Test/Replacement

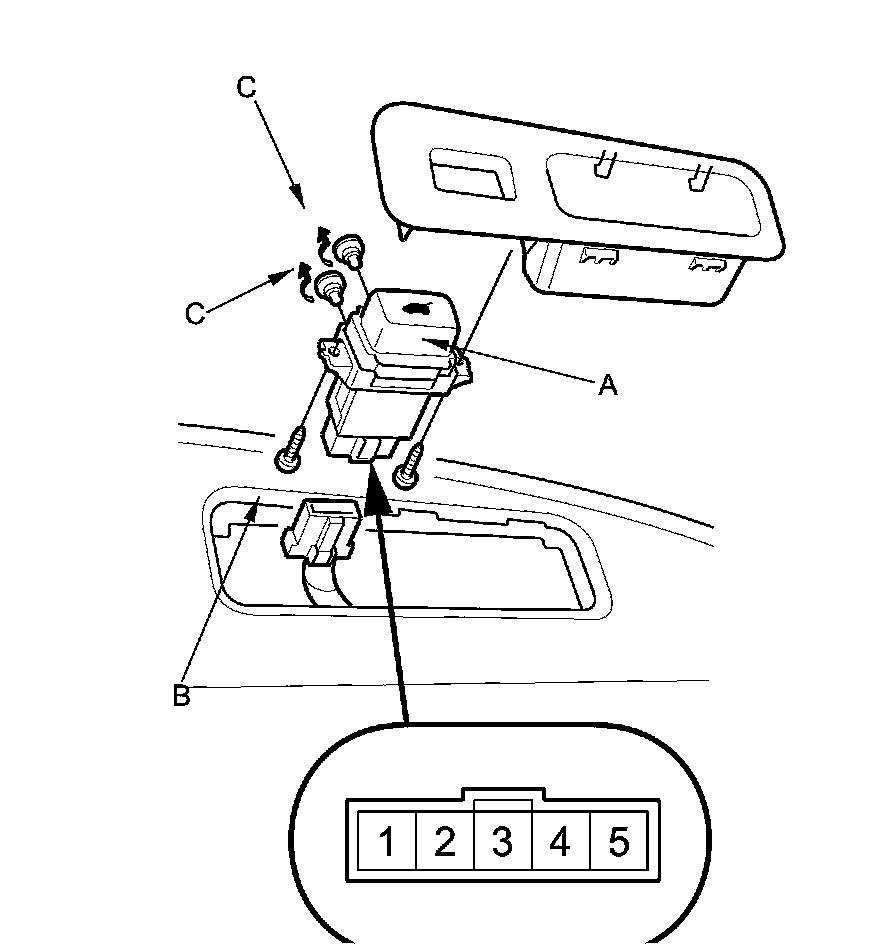

1. Carefully pry out the inside tailgate switch (A), and disconnect the 5P connector (B) from switch.

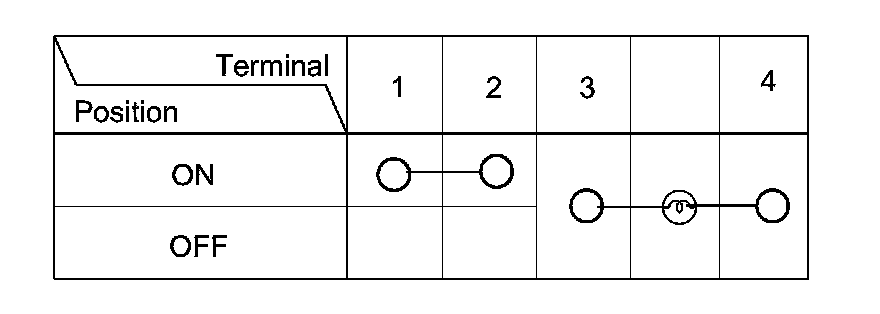

2. Check for continuity between the terminals in each switch position according to the table.





3. If the continuity is not as specified, replace the bulbs (C) or the switch.
