Tailgate Outer Handle Switch Test/Replacement




Tailgate Outer Handle Switch Test/Replacement

1. Remove the tailgate lower trim panel .

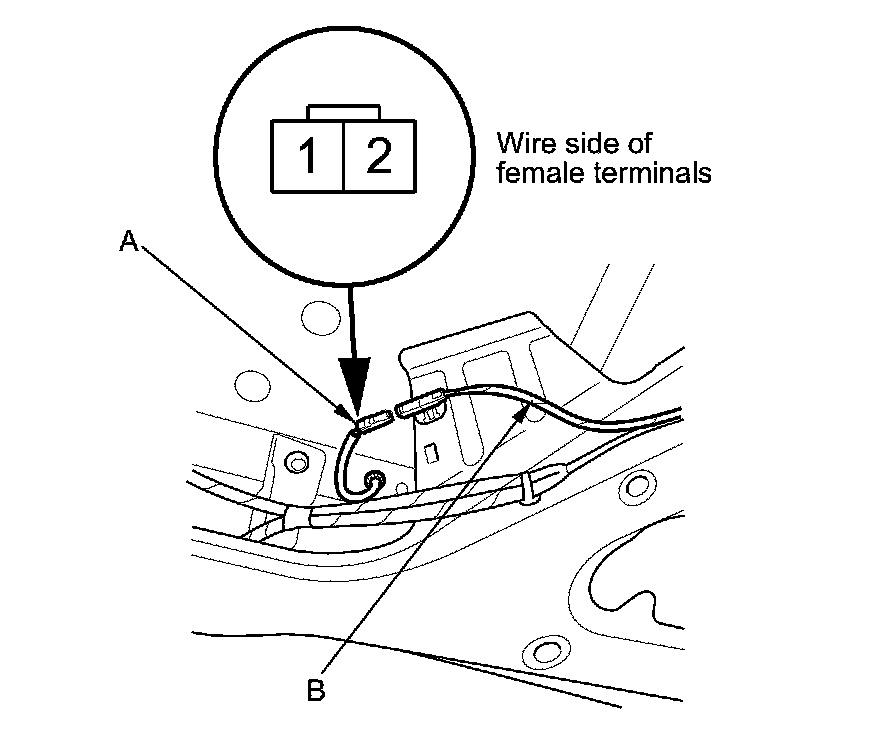

2. Disconnect the 2P connector (A) from the tailgate harness (B).





3. Check for continuity between tailgate outer handle switch 2P connector terminals No. 1 and No. 2.

- There should be continuity when the tailgate outer handle is pulled.
- There should be no continuity when the tailgate outer handle is released.

4. Remove the tailgate handle Service and Repair.

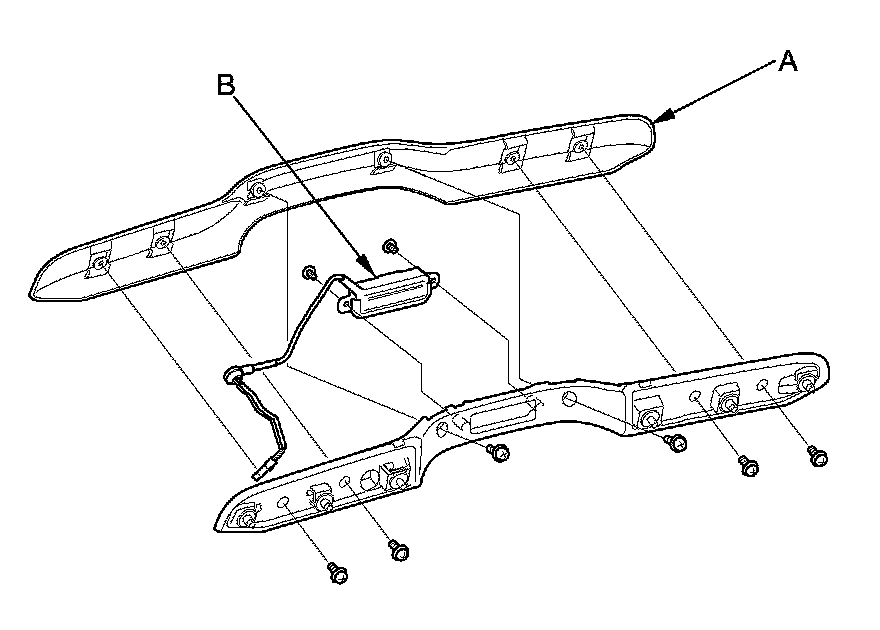

5. Remove the six screws and the outer cover (A).






6. Remove the two screws and the tailgate outer handle switch (B).
