Trunk / Liftgate Solenoid: Service and Repair

Hatch Glass Actuator Replacement

NOTE:

- Take care not to scratch the tailgate.
- Put on gloves to protect your hands.

1. Remove the tailgate lower trim panel .

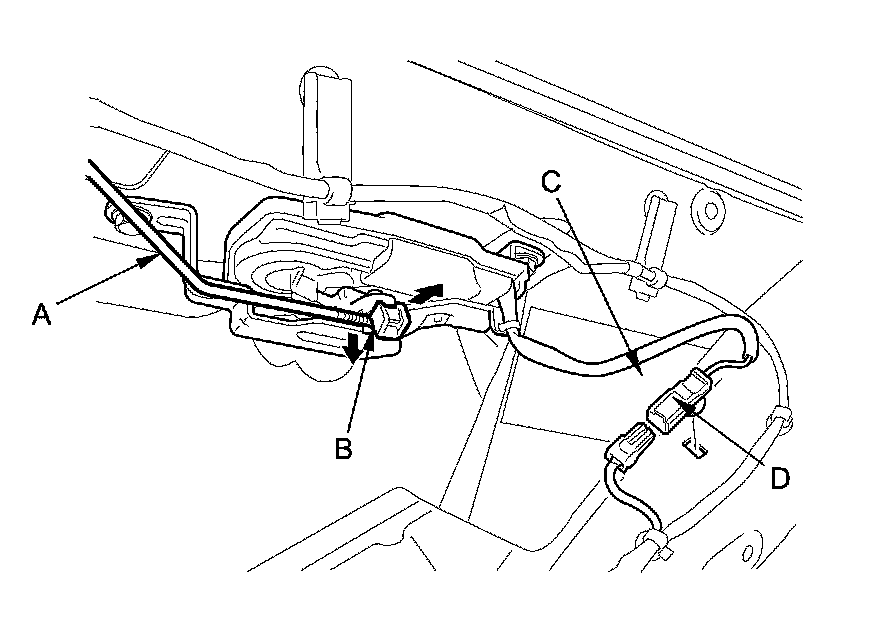

2. Disconnect the hatch glass rod (A) from the rod fastener (B). Disconnect the actuator connector (C) and connector clip (D) from the tailgate.

NOTE: If the rod fastener is damaged or stress-whitened, replace it with a new one.

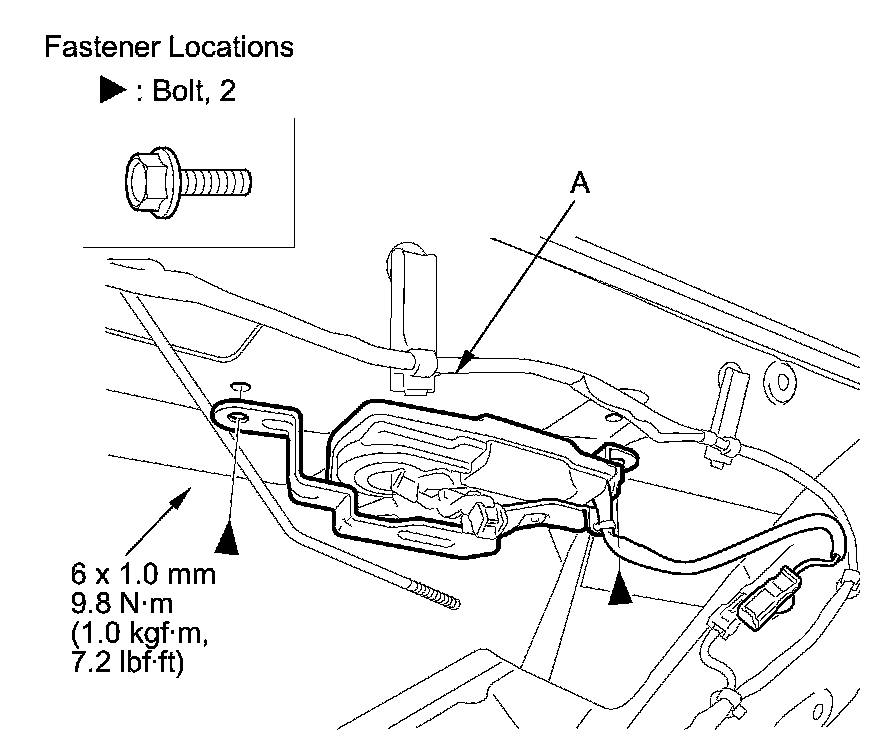

3. Remove the bolts, then remove the hatch glass actuator (A).






4. Install the actuator in the reverse order of removal, and make sure the actuator connector is plugged in properly, and the hatch glass open rod is connected securely.

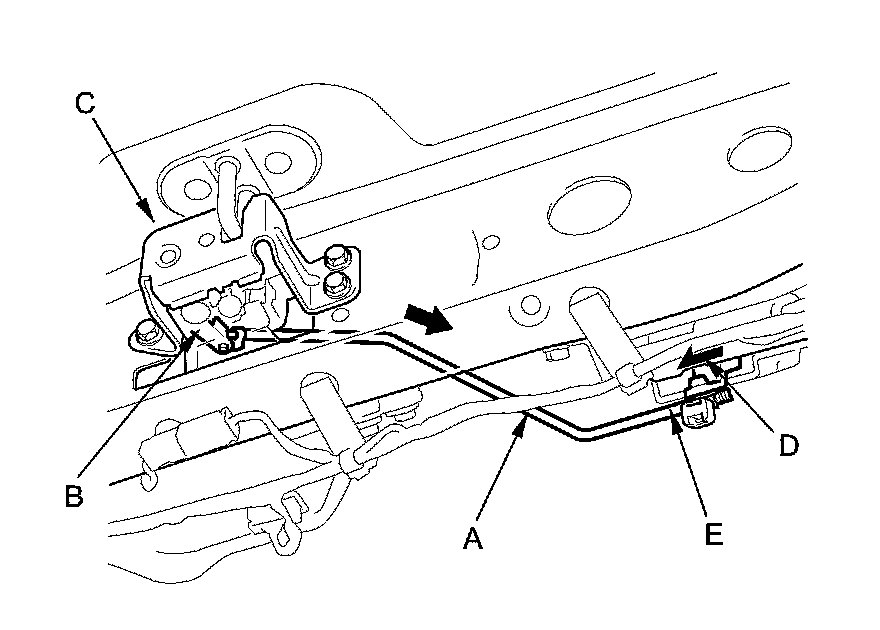

5. Reconnect the hatch glass rod (A) in the following sequence.

1. Move the lever (B) of the latch (C) into the "lock" position.

2. Move the lever (D) on the actuator into the "set" position as shown by the arrow.

3. While holding the lever B in the "lock" position, take up the slack in the rod by pulling it toward the actuator as shown.

4. Tighten the rod fastener (E) on the rod.





6. Make sure the hatch glass opens properly and locks securely.
