License Plate Frame: Service and Repair

Rear License Trim Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the tailgate.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the tailgate trim panel .

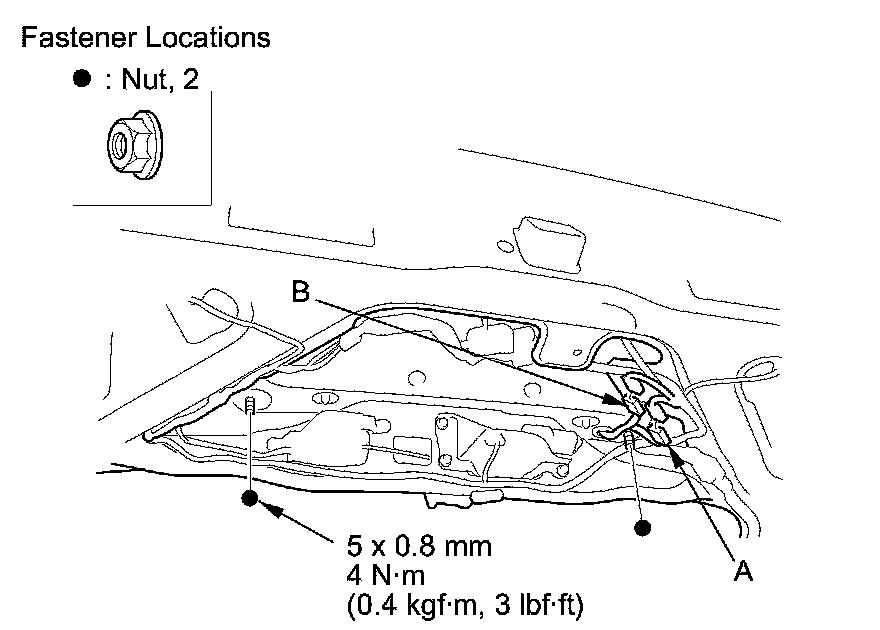

2. From inside the tailgate, remove the nuts securing the rear license trim, and disconnect the back-up light connector (A), and rearview camera connector (B) (for some models).

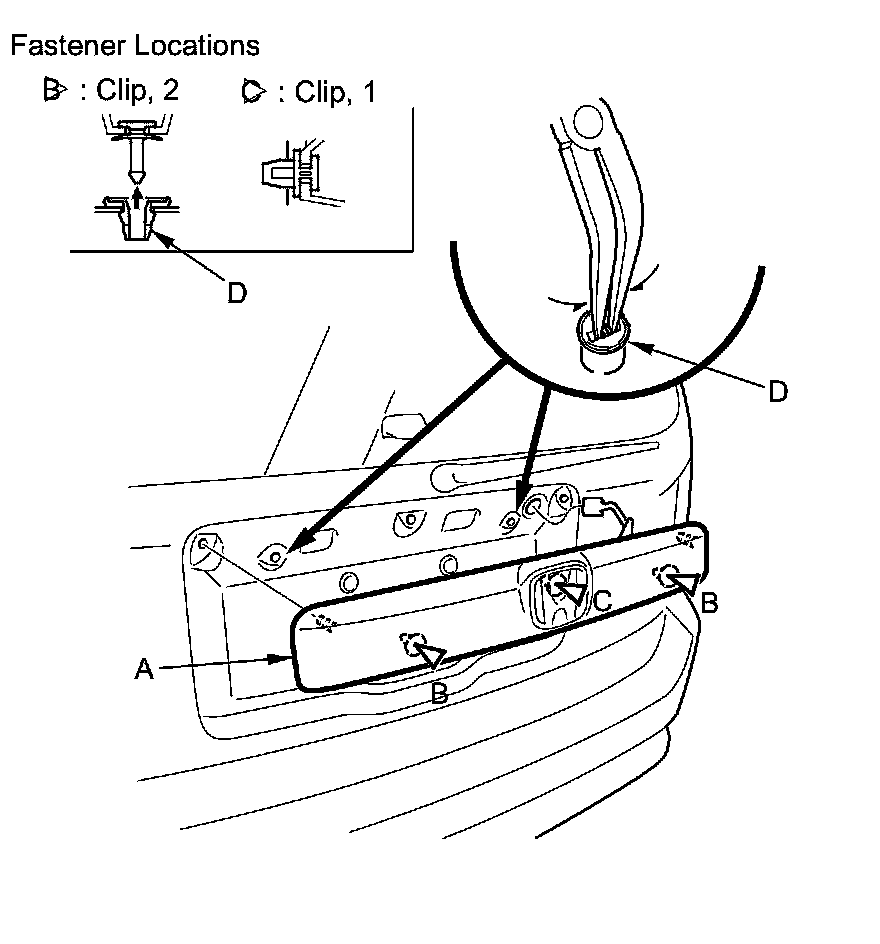

3. Gently close the tailgate, and pull the rear license trim (A) out to detach the clip (B, C), then remove the trim. Take care not to scratch the tailgate.





4. Remove the grommets (D) from the tailgate, then insert the grommets into the clips on the rear license trim.

5. Install the trim in the reverse order of removal, and note these items:

- Make sure the back-up light connector and the rearview camera harness connector (for some models) are plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
