Center Console Rear Trim Removal/Installation

Center Console Rear Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to scratch the center console and related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

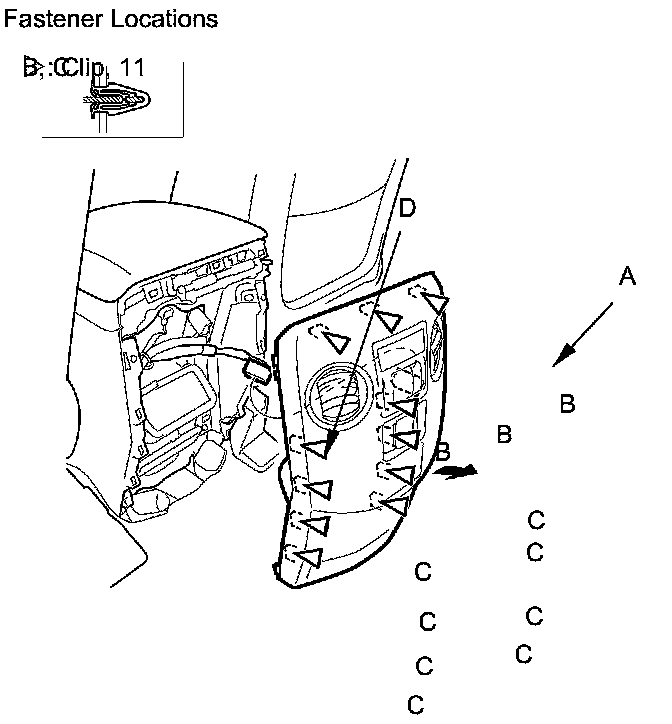

1. Starting at the top, gently pull out the console rear trim (A) to detach the clips (B), then pull out the trim to detach the remaining clips (C), disconnect the connector (D), then remove the trim.





2. Install the trim in the reverse order of removal, and note these items:

- Make sure all connectors are plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
