Glove Compartment: Service and Repair

Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard and its related parts.

1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal/Installation.

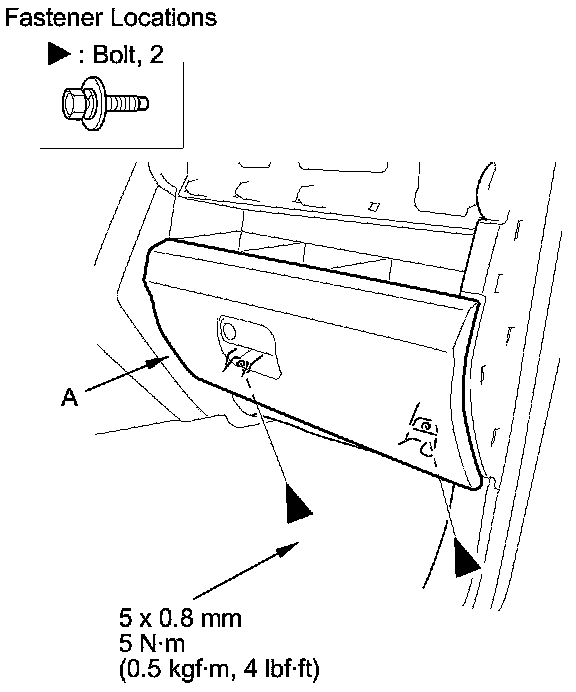

2. Remove the bolts, then remove the glove box (A).

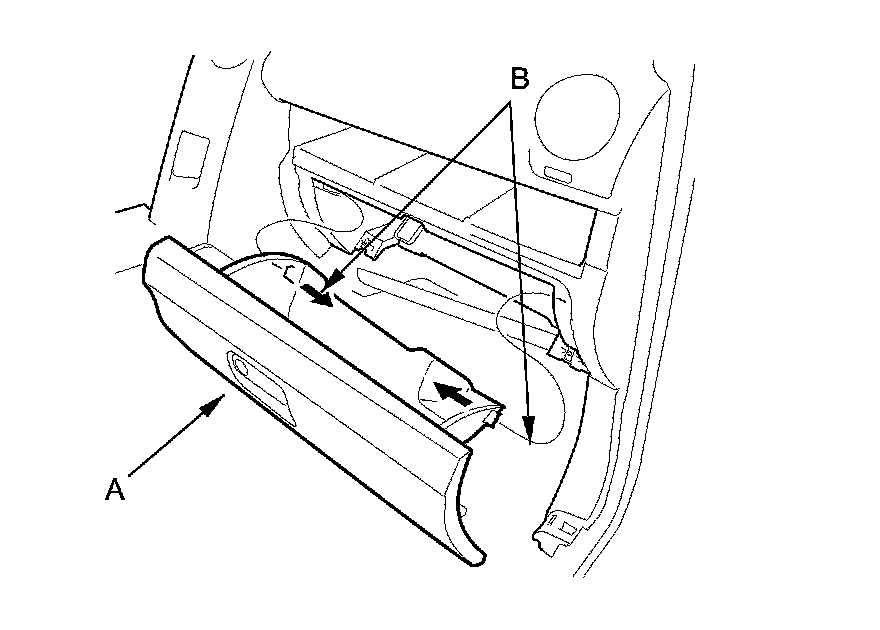

3. While holding the glove box (A), release the glove box stops (B) on each side from the dashboard by pushing them in, then remove the glove box.






4. Install the glove box in the reverse order of removal.
