Interior Trim Removal/Installation - Cargo Area

Interior Trim Removal/Installation - Cargo Area

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

Cargo Floor Box

NOTE:

- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim and panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Pull the tailgate weatherstrip, as needed Tailgate Weatherstrip Replacement.

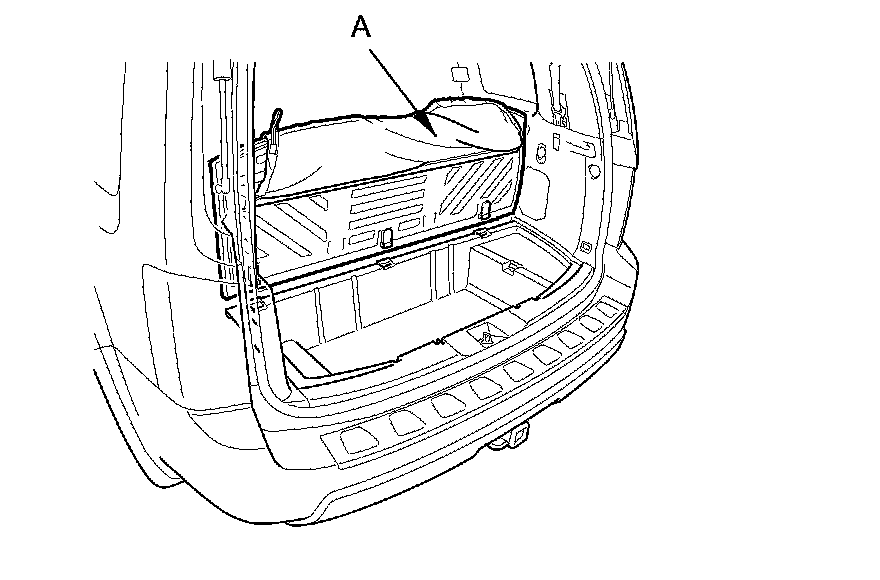

2. Remove the cargo floor lid (A).

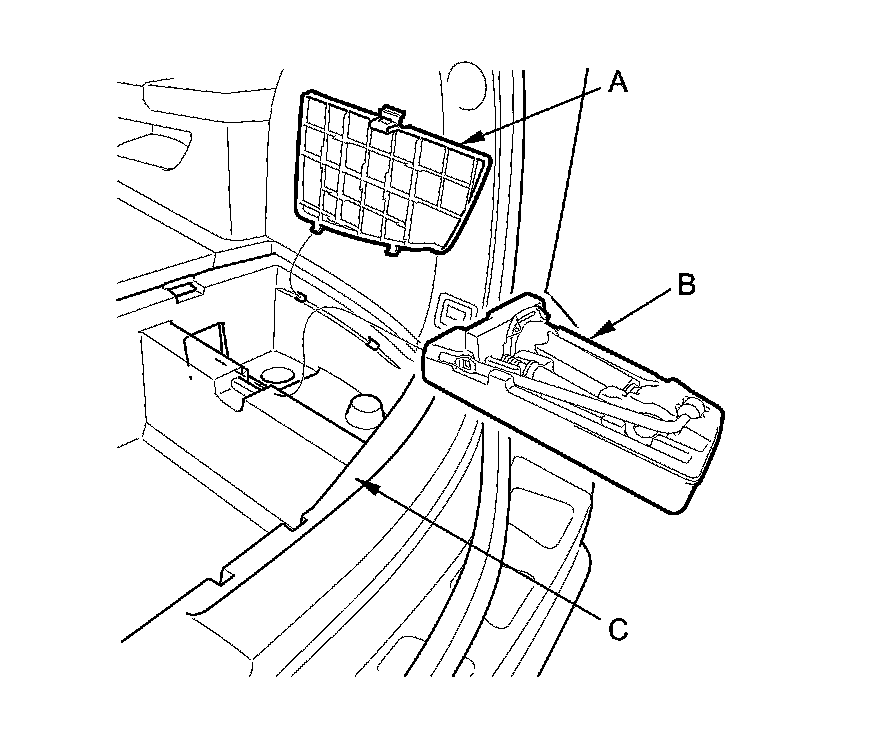

3. Open the lid (A), then remove the tool set holder (B) from the cargo floor box (C).

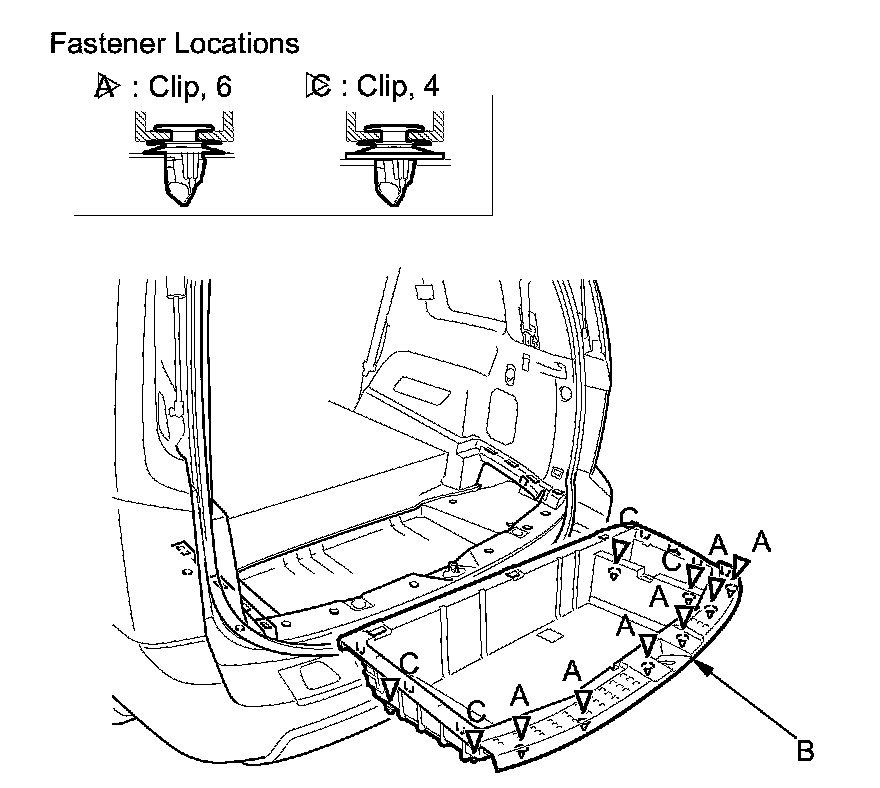

4. Remove the clips (A), and pull up the cargo floor box (B) to detach the clips (C), then remove the cargo floor box.






5. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and hooks into place securely.
