Door Lock Actuator Test

Door Lock Actuator Test

Driver's Door and Left Rear Door

1. Remove the door panel:

- Driver's door Service and Repair
- Left rear door Service and Repair

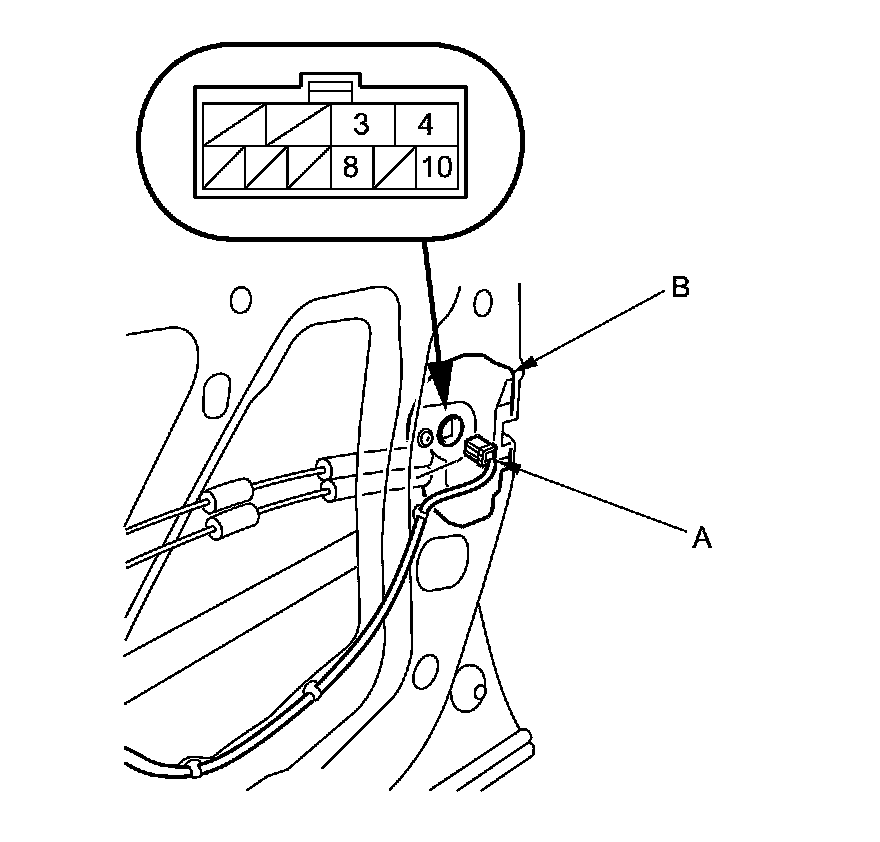

2. Disconnect the 10P connector (A) from the actuator (B).

NOTE: The illustration shows the driver's door.

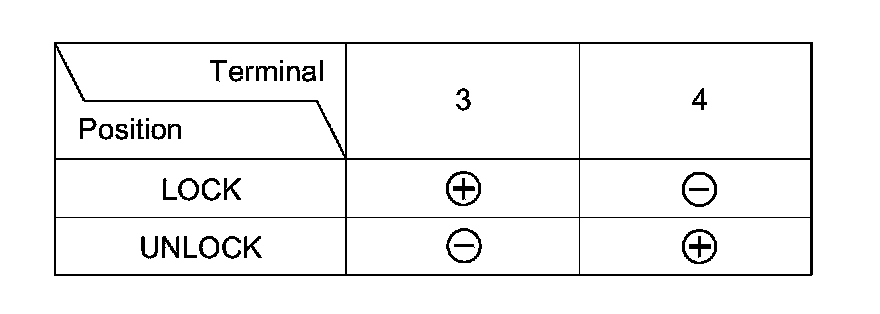

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





4. If the actuator does not operate as specified, replace the door latch.

- Driver's door latch Service and Repair
- Left rear door latch Service and Repair

Front Passenger's Door and Right Rear Door

1. Remove the door panel:

- Front passenger's door Service and Repair
- Right rear door Service and Repair

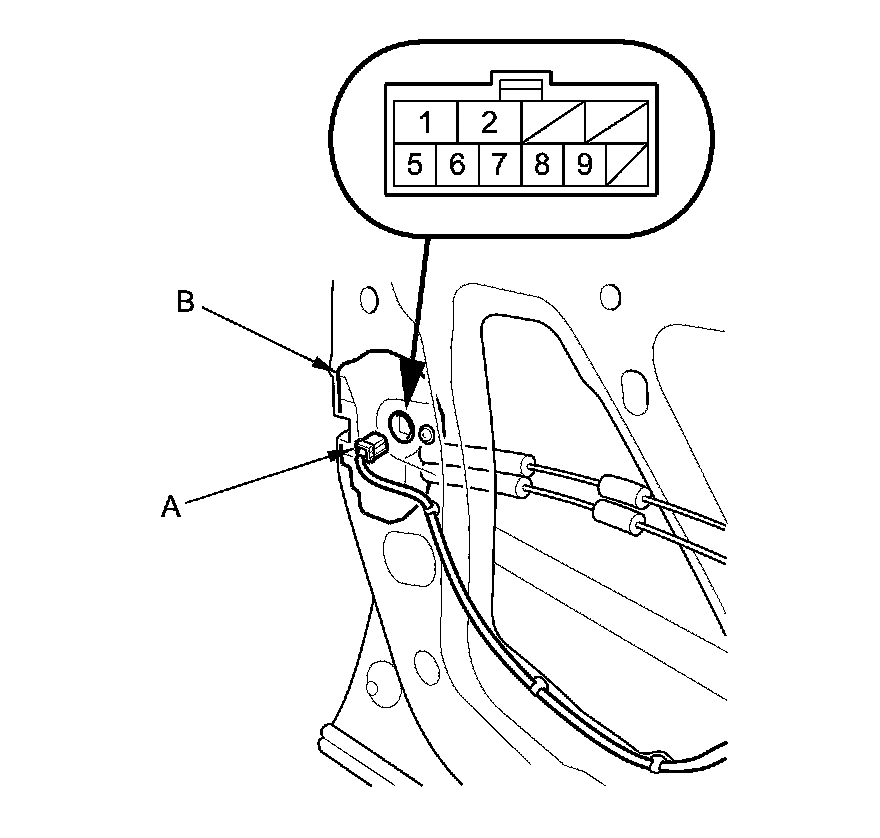

2. Disconnect the 10P connector (A) from the actuator (B).

NOTE: The illustration shows the front passenger's door.






3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





4. If the actuator does not operate as specified, replace the door latch.

- Front passenger's door latch Service and Repair
- Right rear door latch Service and Repair
