Rearview Monitor Mirror System Description (EX-L)

Rearview Monitor Mirror System Description

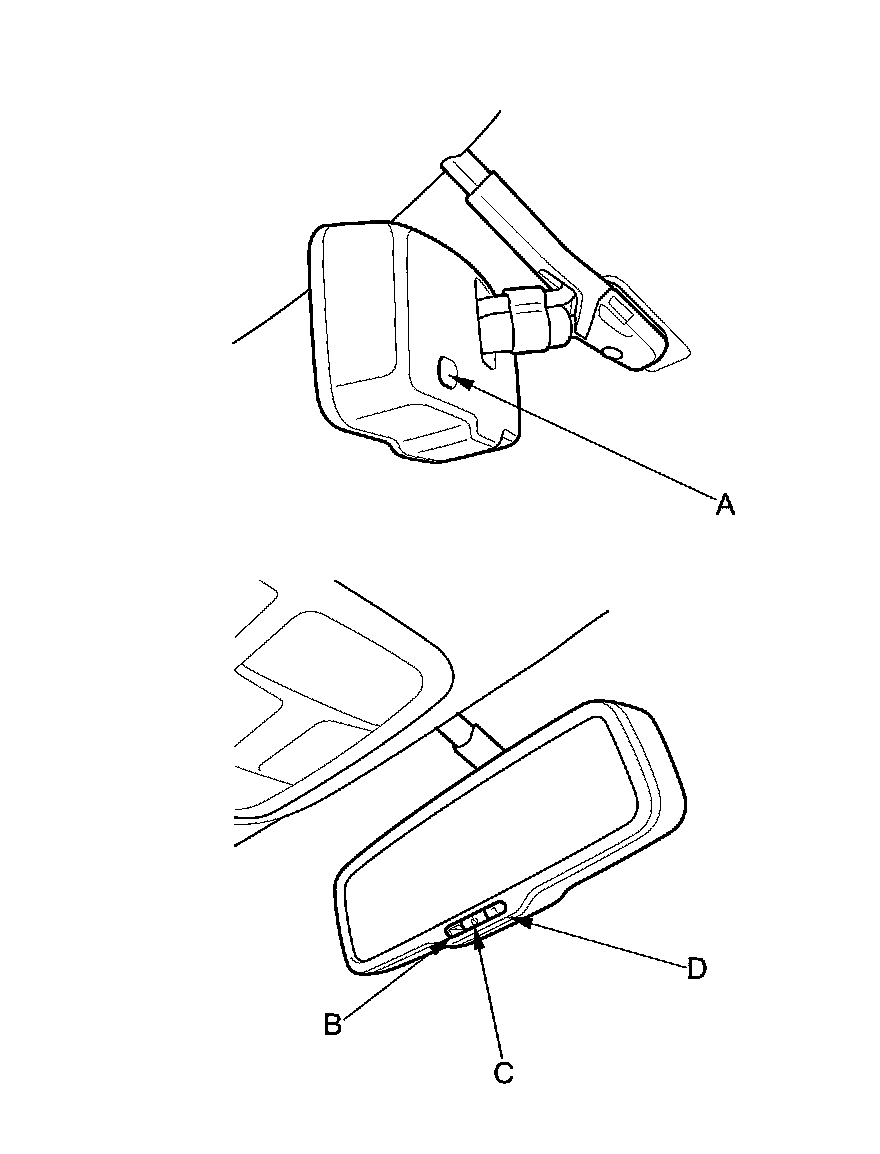

The rearview monitor mirror system consists of the rearview camera and the automatic dimming inside mirror with a built-in rearview monitor. When the transmission range switch is in R position, the rearview monitor is on, and the image from the rearview camera appears. Brightness of the rearview monitor changes automatically using the front-facing lux level sensor (A) and rear-facing lux level sensor (B) for the automatic dimming inside mirror. There is a case that the brightness gets dimmed gradually when the rearview monitor turns on for a long time. The rearview monitor turns off, when the automatic dimming off button (C) is pressed and the indicator (D) goes off, or the transmission range switch is in other than R position.
