Power Mirror Motor: Service and Repair

Power Mirror Actuator Replacement

Actuator Replacement

1. Remove the mirror holder Mirror Holder Replacement.

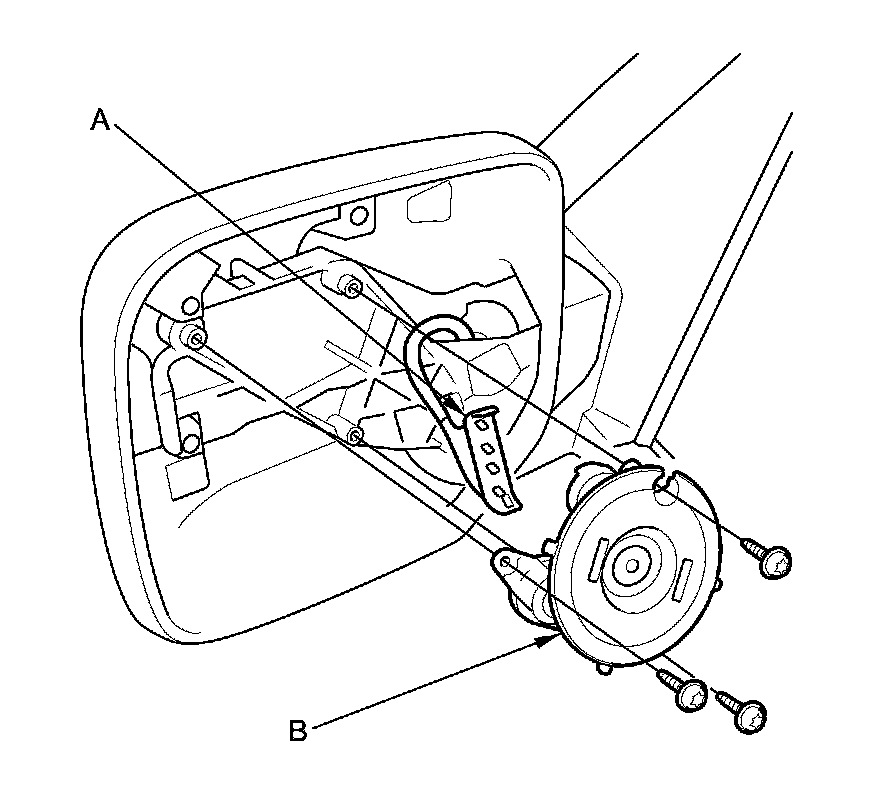

2. Remove the three TORX screws using a tamperproof T10 TORX bit.

3. Remove the connector (A) and the actuator (B).

NOTE: The illustration shows without side turn signal light.





4. Install the actuator in the reverse order of removal.

Actuator Harness Replacement

1. Remove the mirror holder Mirror Holder Replacement.

2. Remove the power mirror Power Mirror Replacement.

3. Remove the power mirror actuator.

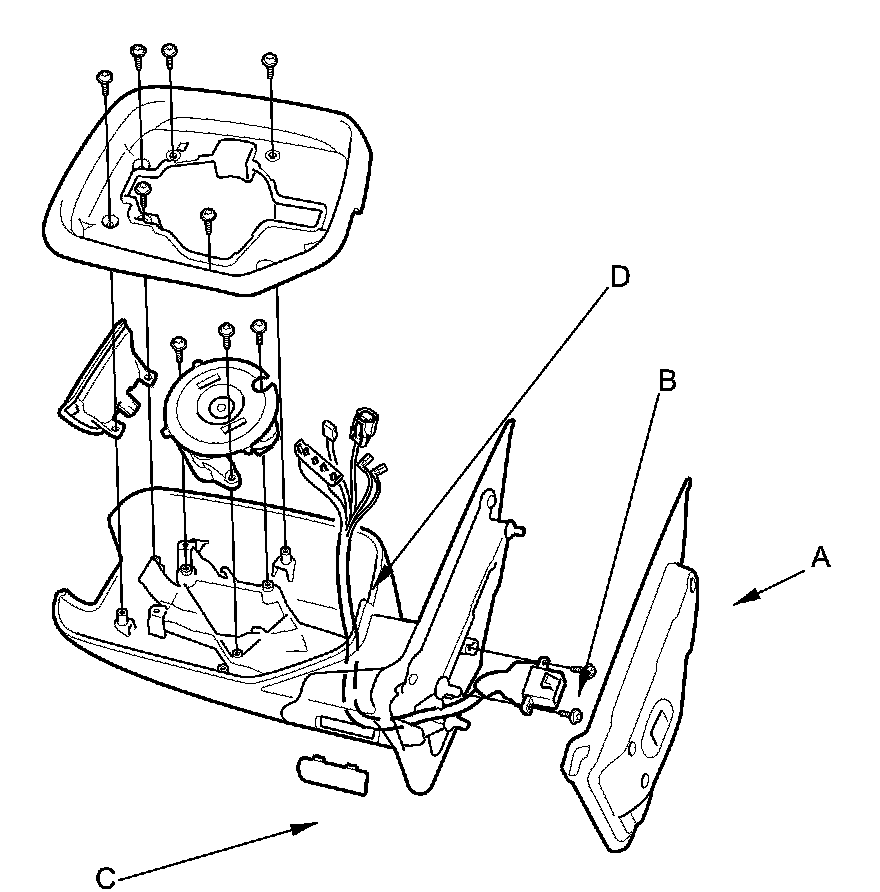

4. Remove the gasket (A), them remove the two TORX screws using a tamperproof T10 TORX bit, and connector (B) from power mirror.

NOTE: The illustration shows with side turn signal light.





5. Remove the cover (C) from the power mirror.

6. Remove the harness (D) from the power mirror.

7. Route the wire harness of the new actuator through the hole in the bracket reverse order of removal.

8. Connect the connectors to the actuator and the side turn signal light securely.

9. Install the actuator, the cover, and the gasket in the reverse order of removal.

10. Install the power mirror on the door, and make sure the actuator, mirror defogger, and side turn signal light operation.
