Power Mirror Actuator Test

Power Mirror Actuator Test

1. Remove the mirror mount cover.

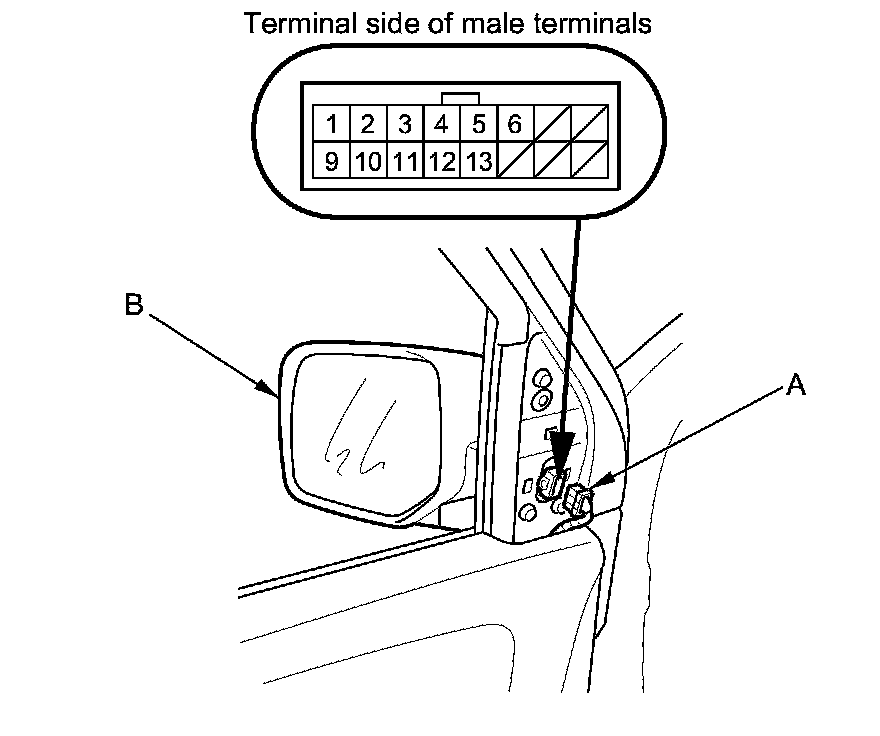

2. Disconnect the 16P connector (A) from the power mirror actuator (B).

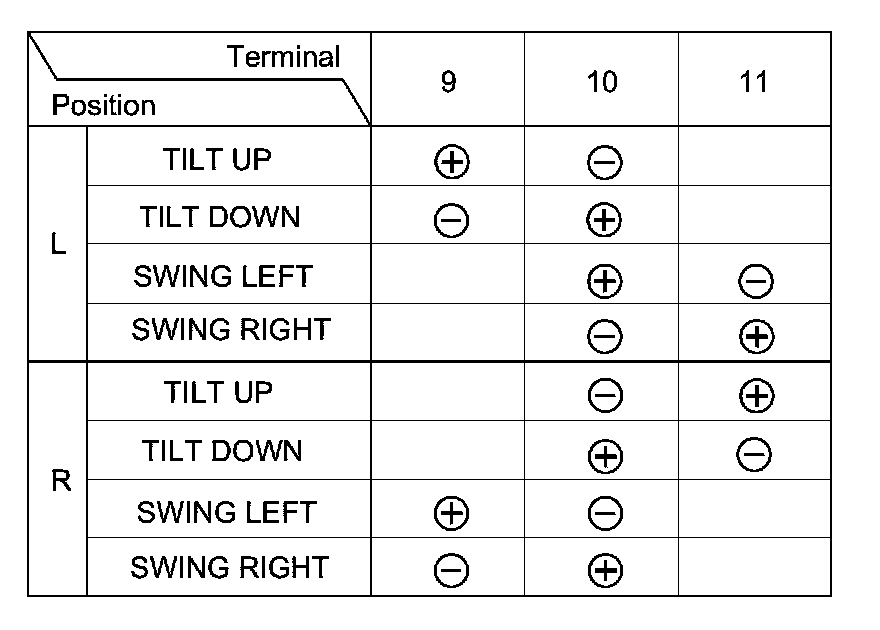

3. Check the actuator operation by connecting power and ground according to the table.





4. If the mirror fails to work properly, check for an open in the wire between the connector and the mirror holder. If the wire is OK, replace the mirror actuator Service and Repair.

Defogger Test

5. Measure the resistance between the terminals No. 1 and No. 2 of the 16P connector. There should be about 7 Ohms.

6. If the resistance is not as specified, check for an open in the wire between the connector and the mirror holder. If the wire is OK, replace the mirror holder Mirror Holder Replacement.
